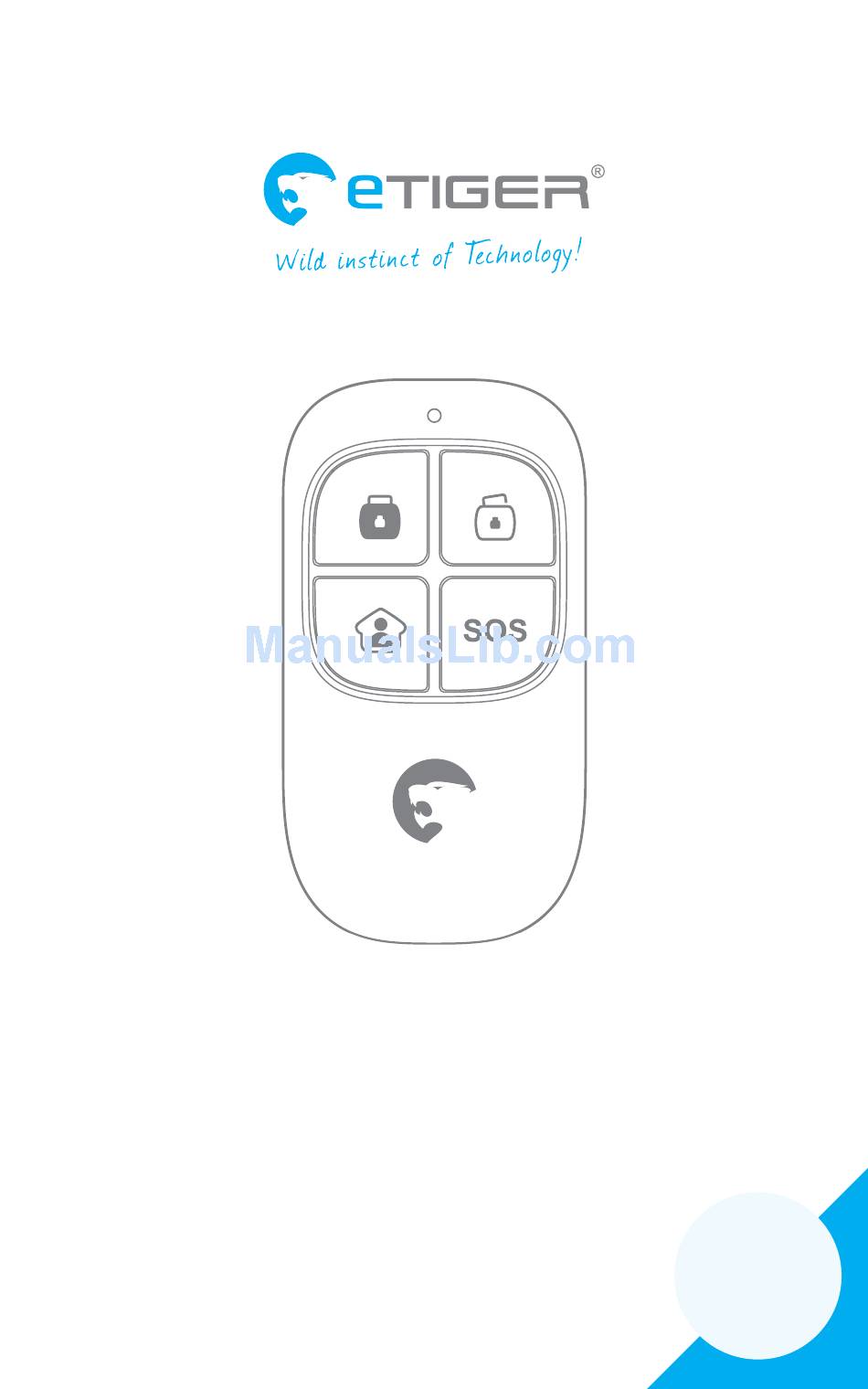

- Page 1 ES-RC1 Remote Control www.etiger.com...
-
Page 2: Box Content

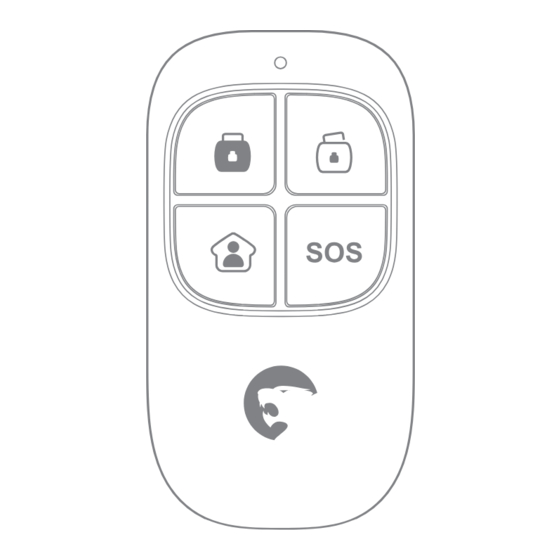

Box Content 1 x Remote Control 1 x User Manual LED indicator Disarm Home Mode Panic Before Using for the First Time Register the remote control in the alarm system Switch to Connection Mode on the control panel. Then press any key on the remote control. The control panel beeps once: the remote control is registered. - Page 3 Usage Operation Function Arms the security system Disarm Disarms the security system Arms all the sensors but the Home ones in zone A. Sensors in Mode zone A will not trigger the alarm (Home Mode). Triggers the alarm regardless the status of the alarm sys- Panic tem.
- Page 4 Specifications Power Supply: Housing material: DC 3V (CR2025 button ABS plastic battery x1) Operating Operation current: conditions: ≤7 mA Temperature: -10°C ~ +55°C Transmission distance: Relative Humidity: ≤ 80 m (in open area) ≤80% (non-condensing) Radio-frequency: 433MHz (±75KHz) Dimensions: 57 x 31 x 11 mm LED indications Blinks once Sends transmitting signal...
- Page 5 Standards This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities.
- Page 6 Images, illustrations and text are non-contractual. ETIGER and the ETIGER logo are registered trademarks and the property of ETIGER. Copyright © 2015 ETIGER. All rights reserved.
- Page 7 This user manual is available in other languages at www.etiger.com/eu/support ETIGER EUROPE Rue de la Loi, 25, 7100 La Louvière, Belgium service@etiger.com...
