Summary of Contents for eTIGER ES-CAM2A

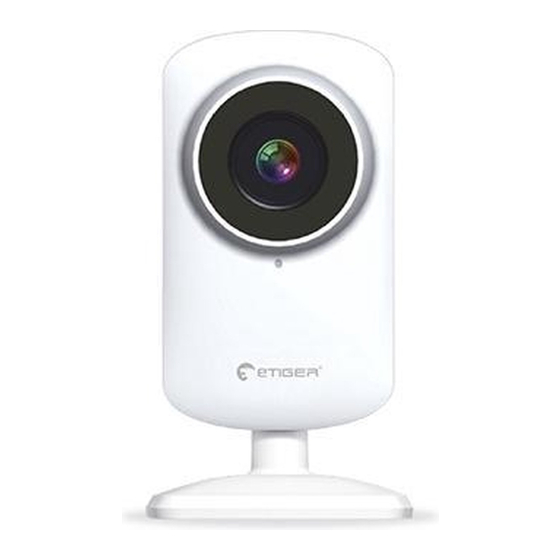

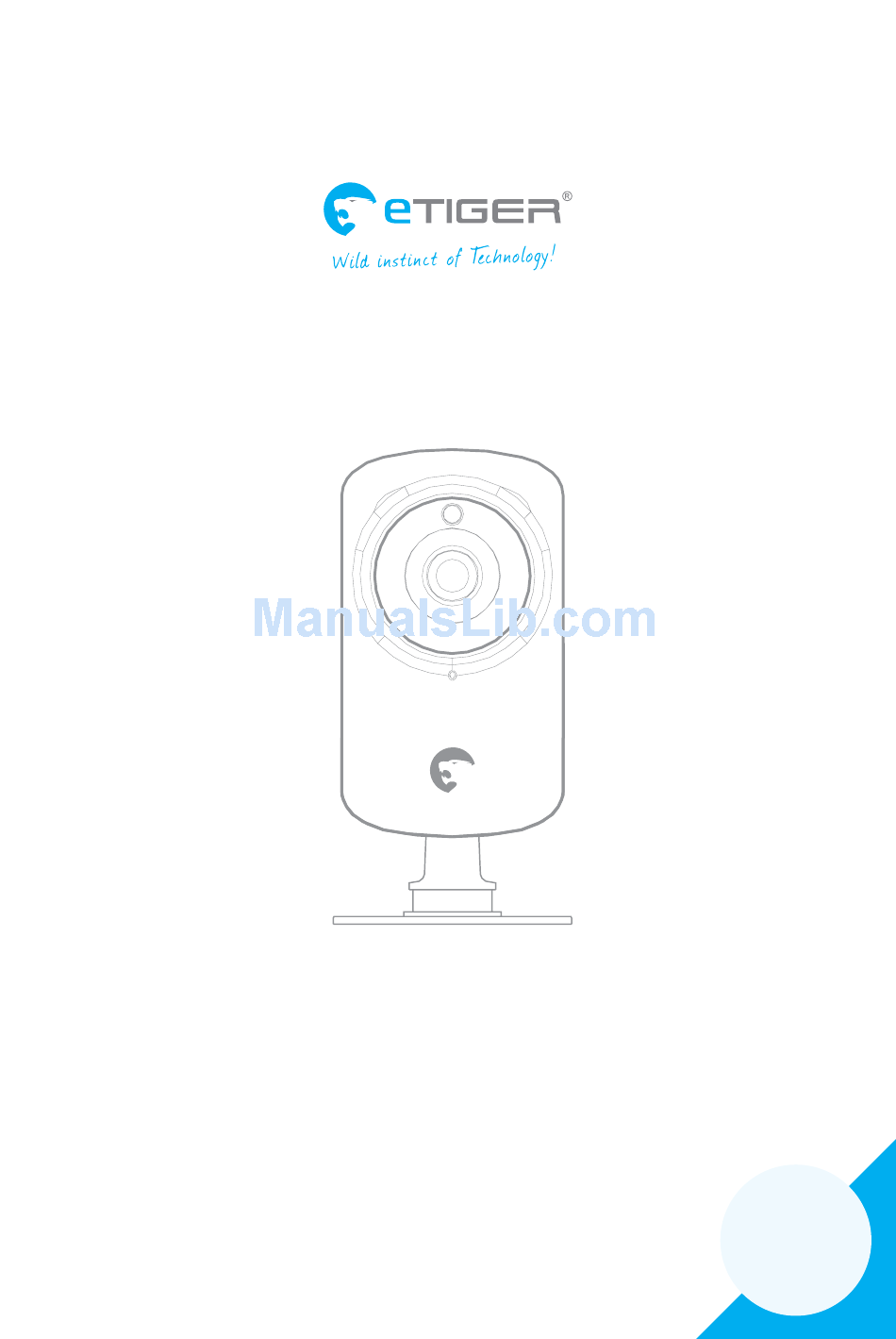

- Page 1 ES-CAM2A IP Camera www.etiger.com...
- Page 2 App Store or Google Play. Plug the camera Plug the AC adaptor to your ES-CAM2A, and plug the former into the mains. Switch the Wi-Fi of your camera on Make sure the Wi-Fi switch at the back of your camera is on “ON”.
- Page 3 Connect your smartphone to the camera Android Go to the Wi-Fi settings of your smartphone, select the network “ES-CAM2A XXXX” (the last 4 figures represent the last 4 figures of the MAC ID at the back of your camera). Launch the app iSecurity+...
-
Page 4: Configuration Of The Camera
Configuration of the camera Android Select “Continue” and follow the instructions of the installation assistant. Android Preview of the camera What your camera views appears in the interface : your camera is connected Select “Connect camera to Internet”. - Page 5 Connection of the camera to the Internet Android Select the Wi-Fi network to which your camera will be connected. Android Enter the password of the Wi-Fi network selected and press “Continue”. Note It may take a few minutes for the camera to access the Internet.
- Page 6 Connection to iSecurity+ Android Create an iSecurity+ account by filling in the fields. Android Enter your iSecurity+ username and password to log in.
- Page 7 Creation of the profile of your camera Android Choose a name and a description for your camera and press “Continue”. Note The registration of your camera on the iSecurity+ server will only take a few seconds. Finalization of the installation Android The installation is complete.
- Page 8 Android Quit and restart iSecurity+. You can use your Android or iOS smartphone / tablet to access your camera using an Internet connection (Wi-Fi or 4G). Controls on the camera Android Hold and talk Hold and talk Take a picture Take a picture Sound On / Off Sound On / Off...
- Page 9 Configuration of iSecurity+ Name Picture frequency Rename your camera Up to 25fps Share Quality Share your camera with your friends 1~ 5 (5 being the highest quality) using your web browser Video size Status 320x180, 640x360, or 1280x720 Change the status of your camera to Microphone appear online, offline, or in private.
-
Page 10: Installation
Follow the link below to access your camera from a computer : https://app.isecurityplus.com/app/c/login.html Installation To install the ES-CAM2A on a wall, unscrew the base of the camera and remove the metal plate. Fasten the mounting bracket to the wall with the screws and anchors included in the box. - Page 11 LED lights indications Wi-Fi Configuration Network Green: Green: Connected to configuration mode iSecurity+ Orange: Initialization Orange: Connected to the of the configuration local network mode Orange (blinking): Switched off: Not in Not connected configuration mode Power Green: Reset Reset button Make sure the Wi-Fi switch is on “OFF”.
-
Page 12: Specifications
Specifications Image sensor: 1/3” CMOS Sensor resolution: 1600x1200 CMOS Video resolution up to 1280x720p (H.264) Photo resolution up to 1280x720px (JPEG) Focal: 3mm, Aperture: F2.0 8 infrared LEDs for night vision Vision scope: Horizontal: 90° / Vertical: 45° / Diagonal: 78° Shutter speed: 1/5 –... - Page 13 Warnings ATTENTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 14: For More Information
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. - Page 15 ETIGER EUROPE Rue de la Loi, 25, 7100 La Louvière, Belgium service@etiger.com...
