Summary of Contents for eTIGER ES-CAM4A

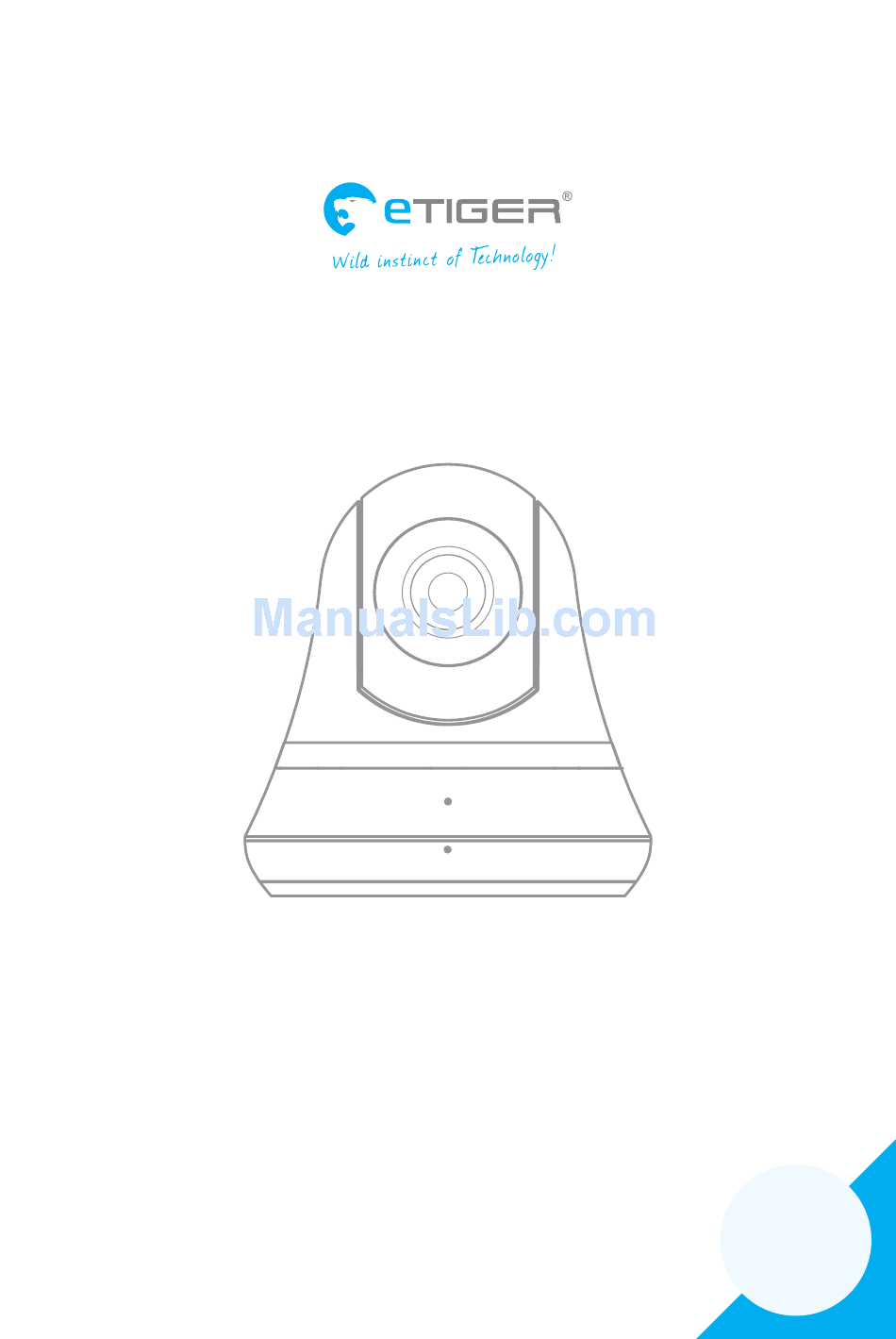

  • Page 1 ES-CAM4A Motorized IP Camera www.etiger.com...
  • Page 2: Specifications

    Operating conditions: 0°C to 40°C (humidity: 20%~80%, non-condensing) Power supply: 5V 2A, 110~240V/ DC Jack Compatible with smartphones under iOS and Android / Tablets / PC / Mac Reset button LED indicator Speaker Microphone Box content ES-CAM4A x1 Mounting bracket x1 AC Adaptor x1 User Manual x1...
  • Page 3: Initialization Of The Setup

    App Store or Google Play. Plug the camera Plug the AC adaptor to your ES-CAM4A, and plug the former into the mains. Attention: never manually rotate the camera upward, downward, toward the left or the right. This may damage the camera.
  • Page 4 Connect your smartphone to the camera Android Go to the Wi-Fi settings of your smartphone, select the network “ES-CAM4AXXXX” (the last 4 figures represent the last 4 figures of the MAC ID at the back of your camera). Launch the app iSecurity+ Android Once the connection...
  • Page 5: Configuration Of The Camera

    Configuration of the camera Android Select “Continue” and follow the instructions of the installation assistant. Android Preview of the camera What your camera views appears in the interface : your camera is connected Select “Connect camera to Internet”.
  • Page 6 Connection of the camera to the Internet Android Select the Wi-Fi network to which your camera will be connected (ADSL box, router, etc...). Android Enter the password of the Wi-Fi network selected and press “Continue”. Note It may take a few minutes for the camera to access the Internet.
  • Page 7 Connection to iSecurity+ Android Create an iSecurity+ account by filling in the fields. Android Enter your iSecurity+ username and password to log in.
  • Page 8 Creation of the profile of your camera Android Choose a name and a description for your camera and press “Continue”. Note The registration of your camera on the iSecurity+ server will only take a few seconds. Finalization of the installation Android You can use your Android or iOS...
  • Page 9 once. The LED indicator at the front of the camera blinks in green and orange alternately. You may now start the process again from page 4 “Connect your smartphone to the camera”. Remark If you have pressed the reset button at the back of the camera in error and you do not wish to connect another smartphone, press the reset button again.
  • Page 10 Front LED indicator Reset button (at the back) Green Green Connected to local network Setup mode on Green - Blinking Orange Searching Wi-Fi networks Setup mode initializing Orange - Blinking Not connected to any network Setup mode off Green/Orange - Blinking Ready to initiate Wi-Fi setup Motion Detection and Notifications When the camera is on, the iSecurity+ app informs you when the camera detects...
  • Page 11: Installation

    Installation To mount the ES-CAM4A on a wall, remove the base of the camera. Fasten the base to the wall with the screws and anchors included in the box. Reattach the camera to the base and screw them together (see drawing below).
  • Page 12 Warnings ATTENTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 13: Safety Instructions

    interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
  • Page 14 Standards This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities.
  • Page 15 ETIGER EUROPE Rue de la Loi, 25, 7100 La Louvière, Belgium service@etiger.com...
