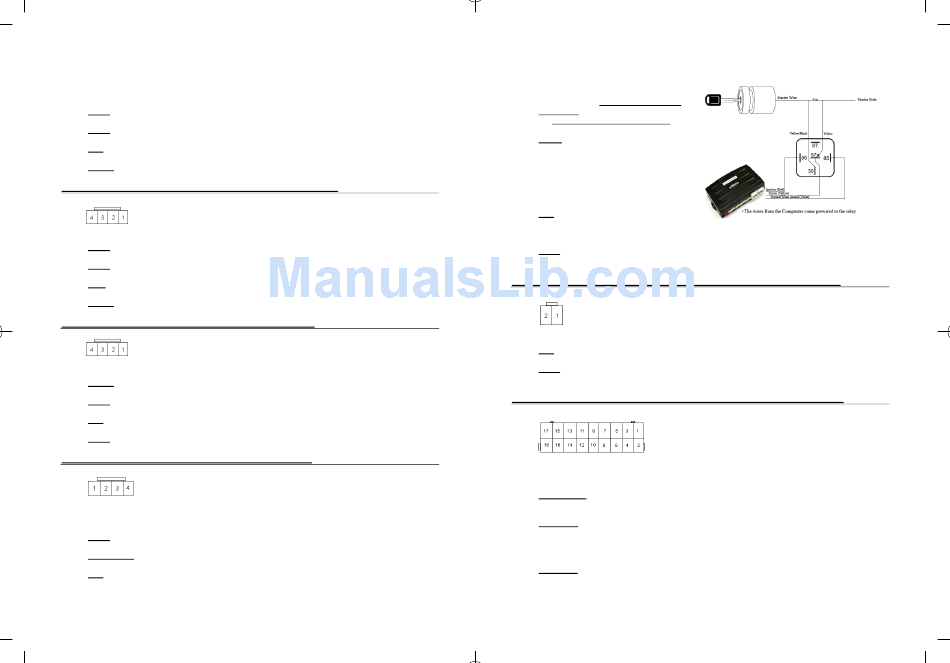

Pin 1 Black - Negative (-) ground.
nd
Pin 2 White - 2 stage negative (-) input. (Instant trigger)
Pin 3 Red - 12V positive (+) output.
st
Pin 4 Yellow - 1 stage negative (-) input. (Warn away)
Connector 7 (CN7), 4-Pin (Pre-wired RPS) (CM5000 Only)
Pin 1 Black - Negative (-) ground.
Pin 2 White - Negative (-) paging input.
Pin 3 Red - 12V positive (+) output.
Pin 4 Yellow - 9V positive (+) L.E.D. output.
Connector 8 (CN8), 4-Pin (Pre-wired Antenna Cable)
Pin 1 Yellow - RX input. This wire receives the signal from remote.
Pin 2 White - TX output. This wire transmits the signal to remote.
Pin 3 Red – Constant 12V positive (+) output.
Pin 4 Black – Negative (-) ground.
Connector 10 (CN10), 4-Pin (Optional Sensor Input)
This connector provides optional sensor inputs. Most commonly used with proximity and tilt sensors.
Pin 1 Black – Negative (-) ground.
nd
Pin 2 Black/White - 2 stage negative (-) input. (Instant trigger)
Pin 3 Red – 12V positive (+) output.
17
IMPORTANT: For anti-grind and starter-kill
applications, the yellow wire goes to the
starter side of the vehicles starter wire and
the yellow/black goes to the key side.
Pin 7 Green – Ignition 12V positive (+) output and
input. This wire must be connected to the
vehicles ignition for remote start and
valet/programming. The proper wire will
test 0V with the key in the off position, 12V
(+) while the key is in the on position and
12V (+) during crank.
Red – Ignition 12V positive (+) output. This
wire does not need to be connected. It is
pre-wired to the anti-grind/starter-kill relay to supply it with power.
Pin 8 Black - Ground negative (-) input. This wire must be connected to the vehicles ground.
Connector 2 (CN2), 2-Pin: Optional Battery Back-up (CM5000 Only)
Pin 1 Red - Constant 12 V positive (+) input and (+) charging output.
Pin 2 Black - Ground (-) negative input.
Connector 3 (CN3), 18-Pin: Programmable Output Connector (POC)
IMPORTANT: Odd Pin numbers 3, 5, and 7 are programmable for up to 4 different output types a piece.
Refer to the option tables for complete details.
Pin 1 Green/White - Parking light 250mA negative (-) output. The proper wire will test (-) when the
parking light switch is in the on position.
Pin 2 Light Blue – Parking / Emergency brake negative (-) input. This input is required for manual
transmission/reservation and turbo-timer mode. The proper wire will provide a (-) trigger when
parking / emergency brake is set. IMPORTANT: This wire is required for manual transmission
remote starts.
nd
Pin 3 Red/Black – 2 Starter 250mA negative (-) output. This output can be used to trigger the pre-
wired relay located on the main ignition harness. This output can be changed by option 4-14.
