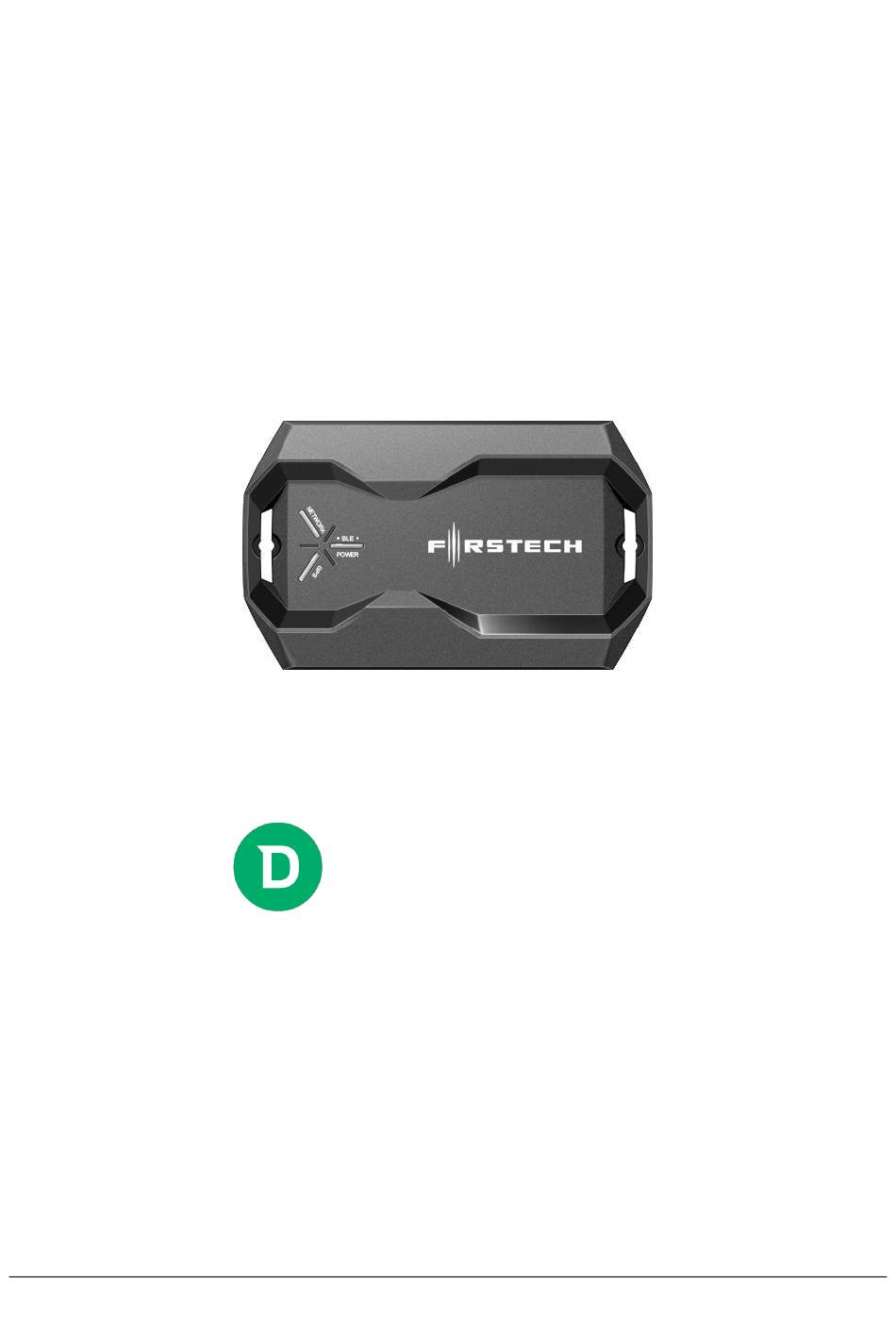

- Page 1 User Guide DR-X1 / DR-X1MAX / DR-X1R Your Car, Connected. Page 1 of 20 Confidential...
-
Page 2: Package & Accessory
Sticker 1page Gift Box 1box 2. Product Overview DR-X1 series are a LTE technology Terminal designed to provide wireless connectivity between Car-Alarm Green LED : LTE Connected to base station then system and LTE network. Global Navigation Satellite blinking one time every 2 sec. - Page 3 2.1 How to connect with Harness. 2.1.1 Standard Harness(UART 1 / UART 2) Pin No Pin contents TXD(5V) RXD(5V) 4 Pin Black port :External Device . 4 Pin Gray port :TELMATICS 10 Pin Black : STAND ALONE. Page 3 of 20 Confidential...
- Page 4 2.1.2 Stand-Alone Harness(10Pin) GPS(3.3V) POC 1 PIOC 2 PIOC 3 PIC 1 CAN H CAN L Page 4 of 20 Confidential...
- Page 5 Aftermarket remote start or security system Compustar Arctic Start iDatalink iDataStart NuStart Midcity Engineering DroneMobile module DR-X1 module DR-X1MAX module DR-X1R module DroneMobile subscription plan Authorized DroneMobile retailer Visit www.dronemobile.com to find an Authorized retailer near you.
-
Page 6: Setup And Get Started
3. Setup and Get Started. 3.1 App download Downloading the DroneMobile app is a similar process on both Android and iPhone smartphones. To download the DroneMobile app, please follow these instructions: Click either of the buttons above, or search "DroneMobile" in your app store. ... - Page 7 3.2 How to register for DronMobile app After you have installed a DroneMobile system into your vehicle, you can now register for a DroneMobile account. In order to register for a DroneMobile account, you will need your DroneMobile system’s serial number, which should be provided to you by your authorized retailer.
- Page 8 5. Done! Registering on the DroneMobile Website 1. Go to https://accounts.dronemobile.com/userlogin. 2. Click the “Register” link. 3. Enter your DroneMobile system’s serial number and name your vehicle. 4. Create your DroneMobile username and profile. 5. Done! Page 8 of 20 Confidential...
-
Page 9: Home Screen
3.3 “Home” Screen The new DroneMobile home screen allows you to check your vehicle’s status right when you open the app. The home screen is divided into sections, or “widgets”, which show different aspects of your vehicle’s status. Page 9 of 20 Confidential... -
Page 10: Control Screen
3.4 “Control” Screen The DroneMobile 4.0 app now features a simplified, easy to use interface for starting, lock, and controlling your vehicle. To open the “Control” screen, press the green control icon in the middle of the footer menu. The “Control”... - Page 11 To lock your doors, tap the “Lock” or “Unlock” buttons. While the command is being sent, the button you pressed will pulse until the command is confirmed. If the command is successful, a green check mark will appear. If the command is unsuccessful, a red X icon will appear. If you experience and unsuccessful command, please go through our “Troubleshooting”...
-
Page 12: "Activity " Screen
3.5 “Activity “ Screen DroneMobile 4.0 allows you to customize all the activity you would like to see on your app. After selecting your Drone Settings and Alerts, you'll receive the information right on your screen. Here's a video illustration: You can further customize it, by only selecting the feedback you are really looking for. -
Page 13: "Track" Screen
3.6 “Track” Screen One of the main benefits of DroneMobile is the ability to locate your vehicle from the app. So whether you forgot where you parked or you’re keeping tabs on a young driver in your family, DroneMobile can locate your vehicle in seconds. IMPORTANT DroneMobile Tracking features can only be accessed with a Premium, Business, or Business Plus subscription. -
Page 14: Application Settings
3.7 Family Sharing DroneMobile 4 now features the ability to share access to your vehicles with family members. Upon launch, family sharing will simply create additional logins for family members to access the vehicles on your account 3.8 “Setup” Screen : Setting Up Your DronMobile System To adjust the settings, or to customize your DroneMobile system, navigate to the “Setup”... -
Page 15: Troubleshooting
- Vibration Confirmation - Get haptic feedback whenever a command is succesful - Auto-Refresh: Update your vehicle's status whenever your open up the app. *This will work the very first time you are opening Drone. If the app is running in the background, please complete a manual refresh. - Page 16 4.2 (Something Went Wrong) Vehicle Not Responding Why am I receiving this error? You are receiving this error because the DroneMobile device in your vehicle is unable to receive and/or confirm commands sent from the DroneMobile app. How can I resolve this issue? Please try any of the following to troubleshoot your issue.
- Page 17 3. If the module is still not communicating, replace the module as it may be defective. 4.3 Error - The Internet connection appears to be offline. Why am I receiving this error? You are receiving this error because your smartphone is unable to connect to the internet and/or send commands via the DroneMobile app.
-
Page 18: Safety, Handling, And Support
Important safety information WARNING: Failure to follow these safety instructions could result in fire, electric shock, injury, or damage to X1 or other property. Read all the safety information below before using DR-X1 Series. Handling Handle X1 with care. It is made of metal, and plastic and has sensitive electronic components inside. -
Page 19: Fcc Compliance Statement
6. FCC compliance statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in- stalled and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 20 Cet appareil doit être installé et utilisé avec un minimum de 20 cm entre le radiateur et votre corps. Model : DR-X1MAX FCC ID : VA5CMT248-X1MAX IC : 7087A-CMT248X1M Contains FCC ID: XMR201707BG96 Contains IC: 10224A-201709BG96 Model : DR-X1 Contains FCC ID: XMR201707BG96 Contains IC: 10224A-201709BG96 Page 20 of 20 Confidential...
