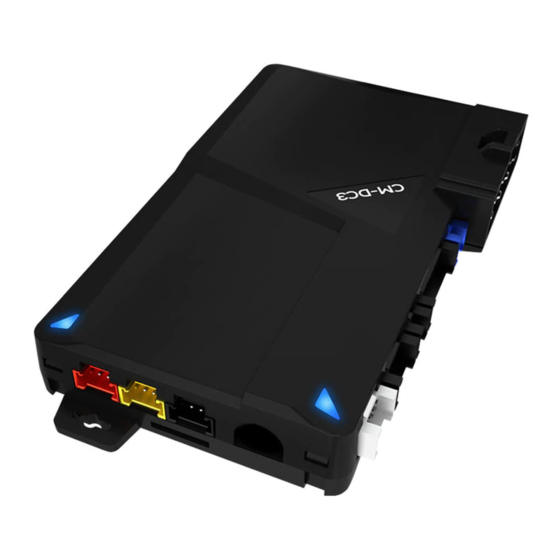

Automotive Data Solutions Inc. © 2017
2015-2017 AUDI A3 PTS AT
DOCUMENT NUMBER
REVISION DATE
20170808
FIRMWARE
FT-RSD-VW7-[FT-DC3-HC]
HARDWARE
FT-DC3-HC
ACCESSORIES
ADS-USB (OPTIONAL)
ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL)
DRONE MOBILE DR-2000 (OPTIONAL)
COMPATIBLE RF-KIT (OPTIONAL)
NOTICE
The manufacturer will accept no responsability for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the
installed device. This device must be installed by a certified technician. Please review the
Installation Guide carefully before beginning any work.
www.idatalink.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT-DC3-HC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Firstech FT-DC3-HC

Summary of Contents for Firstech FT-DC3-HC

  • Page 1 INSTALL GUIDE 2015-2017 AUDI A3 PTS AT DOCUMENT NUMBER REVISION DATE 20170808 FIRMWARE FT-RSD-VW7-[FT-DC3-HC] HARDWARE FT-DC3-HC ACCESSORIES ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL) NOTICE The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device.
  • Page 2 PAGE 2 OF 9 T-HARNESS / COMPONENT LOCATOR - 1 OF 1 20170808 T002_H U.S. Patent No. 8,856,780 2015-2017 Audi A3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 3 06 WHITE•BLUE DOT - IMMOBILIZER CONNECTOR SIDE HORN (-) HOOD SWITCH T002_H INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE. U.S. Patent No. 8,856,780 2015-2017 Audi A3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 4 PAGE 4 OF 9 HARDWIRE / COMPONENT LOCATOR - 1 OF 1 20170808 T002_W U.S. Patent No. 8,856,780 2015-2017 Audi A3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 5 06 WHITE•BLUE DOT - IMMOBILIZER CONNECTOR SIDE HOOD SWITCH INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE. T002_W U.S. Patent No. 8,856,780 2015-2017 Audi A3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 6 START vehicle for 15 seconds. STOP ACC ON START START ENGINE START STOP Press and hold the brake pedal. Press and release the module’s programming button. U.S. Patent No. 8,856,780 2015-2017 Audi A3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 7 Press unlock on OEM or aftermarket remote. Open driver door and enter vehicle. Close driver door. Press and release BRAKE pedal. U.S. Patent No. 8,856,780 2015-2017 Audi A3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 8 NO: Verify the remote programming, the RF connections and check the remote start error  codes. Repeat the test and call technical support, if the problem persists. U.S. Patent No. 8,856,780 2015-2017 Audi A3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 9 NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if applicable, and call technical support. Exit vehicle. Installation checklist completed. U.S. Patent No. 8,856,780 2015-2017 Audi A3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 10 INSTALL GUIDE 2015-2017 AUDI S3 PTS AT DOCUMENT NUMBER REVISION DATE 20170808 FIRMWARE FT-RSD-VW7-[FT-DC3-HC] HARDWARE FT-DC3-HC ACCESSORIES ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL) NOTICE The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device.
  • Page 11 PAGE 2 OF 9 T-HARNESS / COMPONENT LOCATOR - 1 OF 1 20170808 T002_H U.S. Patent No. 8,856,780 2015-2017 Audi S3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 12 06 WHITE•BLUE DOT - IMMOBILIZER CONNECTOR SIDE HORN (-) HOOD SWITCH T002_H INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE. U.S. Patent No. 8,856,780 2015-2017 Audi S3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 13 PAGE 4 OF 9 HARDWIRE / COMPONENT LOCATOR - 1 OF 1 20170808 T002_W U.S. Patent No. 8,856,780 2015-2017 Audi S3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 14 06 WHITE•BLUE DOT - IMMOBILIZER CONNECTOR SIDE HOOD SWITCH INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE. T002_W U.S. Patent No. 8,856,780 2015-2017 Audi S3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 15 START vehicle for 15 seconds. STOP ACC ON START START ENGINE START STOP Press and hold the brake pedal. Press and release the module’s programming button. U.S. Patent No. 8,856,780 2015-2017 Audi S3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 16 Press unlock on OEM or aftermarket remote. Open driver door and enter vehicle. Close driver door. Press and release BRAKE pedal. U.S. Patent No. 8,856,780 2015-2017 Audi S3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 17 NO: Verify the remote programming, the RF connections and check the remote start error  codes. Repeat the test and call technical support, if the problem persists. U.S. Patent No. 8,856,780 2015-2017 Audi S3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 18 NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if applicable, and call technical support. Exit vehicle. Installation checklist completed. U.S. Patent No. 8,856,780 2015-2017 Audi S3 PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 19 INSTALL GUIDE 2018 VOLKSWAGEN ATLAS PTS AT DOCUMENT NUMBER REVISION DATE 20170808 FIRMWARE FT-RSD-VW7-[FT-DC3-HC] HARDWARE FT-DC3-HC ACCESSORIES ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL) NOTICE The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device.
  • Page 20 PAGE 2 OF 7 HARDWIRE / COMPONENT LOCATOR - 1 OF 1 20170808 T003_W U.S. Patent No. 8,856,780 2018 Volkswagen Atlas PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...

  • Page 21: U.s. Patent No. 8

    05 GRAY•BLUE DOT - BRAKE (+) OUTPUT HORN (-) 06 WHITE•BLUE DOT HOOD SWITCH INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE. T003_W U.S. Patent No. 8,856,780 2018 Volkswagen Atlas PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 22 START vehicle for 15 seconds. STOP ACC ON START START ENGINE START STOP Press and hold the brake pedal. Press and release the module’s programming button. U.S. Patent No. 8,856,780 2018 Volkswagen Atlas PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 23 Press unlock on OEM or aftermarket remote. Open driver door and enter vehicle. Close driver door. Press and release BRAKE pedal. U.S. Patent No. 8,856,780 2018 Volkswagen Atlas PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 24 NO: Verify the remote programming, the RF connections and check the remote start error  codes. Repeat the test and call technical support, if the problem persists. U.S. Patent No. 8,856,780 2018 Volkswagen Atlas PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 25 NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if applicable, and call technical support. Exit vehicle. Installation checklist completed. U.S. Patent No. 8,856,780 2018 Volkswagen Atlas PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 26 INSTALL GUIDE 2017 VOLKSWAGEN GOLF ALLTRACK PTS AT DOCUMENT NUMBER REVISION DATE 20170808 FIRMWARE FT-RSD-VW7-[FT-DC3-HC] HARDWARE FT-DC3-HC ACCESSORIES ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL) NOTICE The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device.
  • Page 27 PAGE 2 OF 9 T-HARNESS / COMPONENT LOCATOR - 1 OF 1 20170808 T001_H U.S. Patent No. 8,856,780 2017 Volkswagen Golf Alltrack PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 28 06 WHITE•BLUE DOT - IMMOBILIZER CONNECTOR SIDE HORN (-) HOOD SWITCH T001_H INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE. U.S. Patent No. 8,856,780 2017 Volkswagen Golf Alltrack PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...

  • Page 29: Hardwire / Component Locator - 1 Of

    PAGE 4 OF 9 HARDWIRE / COMPONENT LOCATOR - 1 OF 1 20170808 T001_W U.S. Patent No. 8,856,780 2017 Volkswagen Golf Alltrack PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 30 06 WHITE•BLUE DOT - IMMOBILIZER CONNECTOR SIDE HOOD SWITCH INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE. T001_W U.S. Patent No. 8,856,780 2017 Volkswagen Golf Alltrack PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 31 START vehicle for 15 seconds. STOP ACC ON START START ENGINE START STOP Press and hold the brake pedal. Press and release the module’s programming button. U.S. Patent No. 8,856,780 2017 Volkswagen Golf Alltrack PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 32 Press unlock on OEM or aftermarket remote. Open driver door and enter vehicle. Close driver door. Press and release BRAKE pedal. U.S. Patent No. 8,856,780 2017 Volkswagen Golf Alltrack PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 33 NO: Verify the remote programming, the RF connections and check the remote start error  codes. Repeat the test and call technical support, if the problem persists. U.S. Patent No. 8,856,780 2017 Volkswagen Golf Alltrack PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 34 NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if applicable, and call technical support. Exit vehicle. Installation checklist completed. U.S. Patent No. 8,856,780 2017 Volkswagen Golf Alltrack PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 35 INSTALL GUIDE 2015-2017 VOLKSWAGEN GOLF GTI PTS AT DOCUMENT NUMBER REVISION DATE 20170808 FIRMWARE FT-RSD-VW7-[FT-DC3-HC] HARDWARE FT-DC3-HC ACCESSORIES ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL) NOTICE The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device.
  • Page 36 PAGE 2 OF 9 T-HARNESS / COMPONENT LOCATOR - 1 OF 1 20170808 T001_H U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf GTI PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 37 06 WHITE•BLUE DOT - IMMOBILIZER CONNECTOR SIDE HORN (-) HOOD SWITCH T001_H INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf GTI PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 38 PAGE 4 OF 9 HARDWIRE / COMPONENT LOCATOR - 1 OF 1 20170808 T001_W U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf GTI PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 39 06 WHITE•BLUE DOT - IMMOBILIZER CONNECTOR SIDE HOOD SWITCH INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE. T001_W U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf GTI PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 40 START vehicle for 15 seconds. STOP ACC ON START START ENGINE START STOP Press and hold the brake pedal. Press and release the module’s programming button. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf GTI PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 41 Press unlock on OEM or aftermarket remote. Open driver door and enter vehicle. Close driver door. Press and release BRAKE pedal. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf GTI PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 42 NO: Verify the remote programming, the RF connections and check the remote start error  codes. Repeat the test and call technical support, if the problem persists. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf GTI PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 43 NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if applicable, and call technical support. Exit vehicle. Installation checklist completed. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf GTI PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 44 INSTALL GUIDE 2015-2017 VOLKSWAGEN GOLF SPORTWAGEN PTS AT DOCUMENT NUMBER REVISION DATE 20170808 FIRMWARE FT-RSD-VW7-[FT-DC3-HC] HARDWARE FT-DC3-HC ACCESSORIES ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL) NOTICE The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device.

  • Page 45: T-Harness / Component Locator - 1 Of

    PAGE 2 OF 9 T-HARNESS / COMPONENT LOCATOR - 1 OF 1 20170808 T001_H U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf SportWagen PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 46 06 WHITE•BLUE DOT - IMMOBILIZER CONNECTOR SIDE HORN (-) HOOD SWITCH T001_H INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf SportWagen PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 47 PAGE 4 OF 9 HARDWIRE / COMPONENT LOCATOR - 1 OF 1 20170808 T001_W U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf SportWagen PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 48 06 WHITE•BLUE DOT - IMMOBILIZER CONNECTOR SIDE HOOD SWITCH INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE. T001_W U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf SportWagen PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 49 START vehicle for 15 seconds. STOP ACC ON START START ENGINE START STOP Press and hold the brake pedal. Press and release the module’s programming button. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf SportWagen PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 50 Press unlock on OEM or aftermarket remote. Open driver door and enter vehicle. Close driver door. Press and release BRAKE pedal. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf SportWagen PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 51 NO: Verify the remote programming, the RF connections and check the remote start error  codes. Repeat the test and call technical support, if the problem persists. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf SportWagen PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 52 NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if applicable, and call technical support. Exit vehicle. Installation checklist completed. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf SportWagen PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 53 INSTALL GUIDE 2015-2017 VOLKSWAGEN GOLF PTS AT DOCUMENT NUMBER REVISION DATE 20170808 FIRMWARE FT-RSD-VW7-[FT-DC3-HC] HARDWARE FT-DC3-HC ACCESSORIES ADS-USB (OPTIONAL) ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL) DRONE MOBILE DR-2000 (OPTIONAL) COMPATIBLE RF-KIT (OPTIONAL) NOTICE The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself or to the installed device.
  • Page 54 PAGE 2 OF 9 T-HARNESS / COMPONENT LOCATOR - 1 OF 1 20170808 T001_H U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 55 06 WHITE•BLUE DOT - IMMOBILIZER CONNECTOR SIDE HORN (-) HOOD SWITCH T001_H INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 56 PAGE 4 OF 9 HARDWIRE / COMPONENT LOCATOR - 1 OF 1 20170808 T001_W U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 57 06 WHITE•BLUE DOT - IMMOBILIZER CONNECTOR SIDE HOOD SWITCH INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE. T001_W U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 58 START vehicle for 15 seconds. STOP ACC ON START START ENGINE START STOP Press and hold the brake pedal. Press and release the module’s programming button. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 59 Press unlock on OEM or aftermarket remote. Open driver door and enter vehicle. Close driver door. Press and release BRAKE pedal. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 60 NO: Verify the remote programming, the RF connections and check the remote start error  codes. Repeat the test and call technical support, if the problem persists. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
  • Page 61 NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if applicable, and call technical support. Exit vehicle. Installation checklist completed. U.S. Patent No. 8,856,780 2015-2017 Volkswagen Golf PTS AT Automotive Data Solutions Inc. © 2017 FT-RSD-VW7-[FT-DC3-HC]-EN www.idatalink.com...
