Base Installations

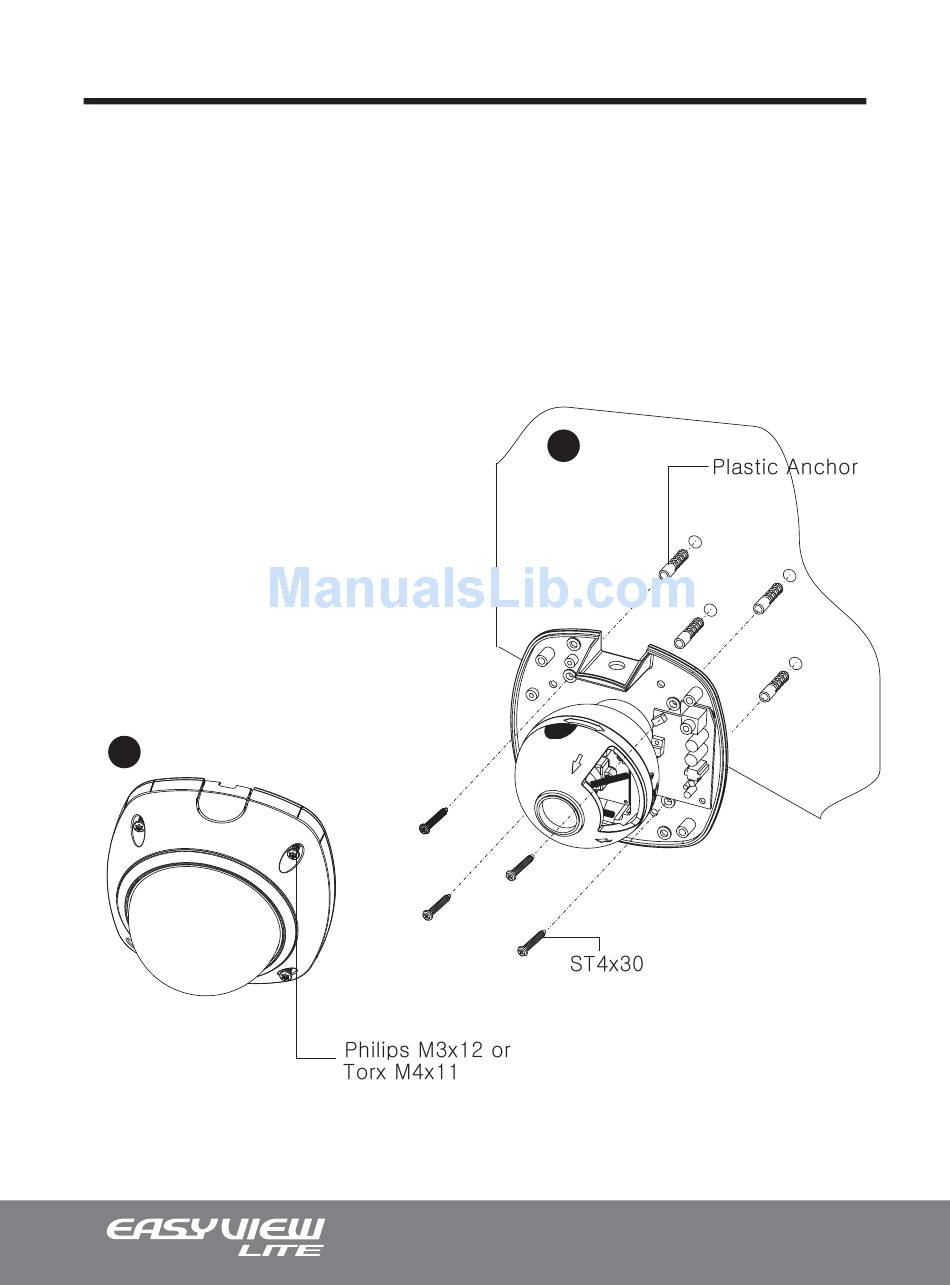

1.
Remove the dome cover by loosening the 4 screws located at the Dome Cover
Ring. EasyView™ Lite indoor domes use the standard philips screws, while vandal
domes uses the torx screws. Use the Torx Wrench supplied.
2.
Using four ST4x30 screws provided, mount the surface mount plate to a strudy
surface. Using four M3x12(Indoor) screws, or M4x11(Vandalproof) screws, affix the
dome cover back on to the surface mount plate.
1
10
2
