Now you need to route the stepper motor wires down through the other guide holes along the
inside right side of the DropLit chassis. I'd recommend "spindling" the end of the wires a bit to make
them a bit easier to get through the holes – it's a tight fit.

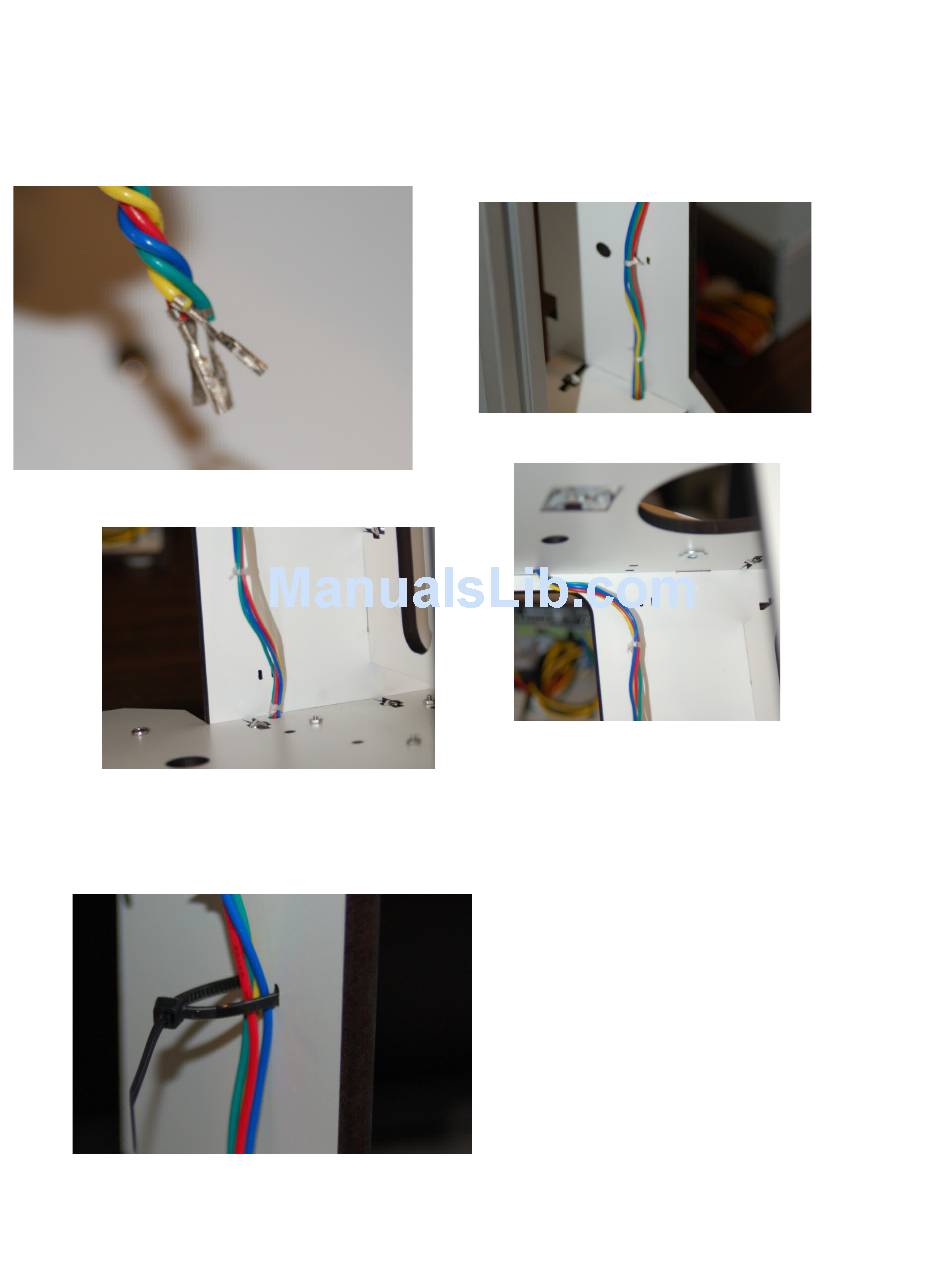

Fig. 5-11: Spindled wires.
Fig. 5-14: Base hole.
Once you've got the wires routed, start at the top and fix them in place using the include wire
ties.
Fig. 5-15: Top wire tie started.
DropLit Assembly Guide
Fig. 5-12: Tower Base hole.
Fig. 5-13: Dish Base hole.
