Installing the Carriage

Next up, we'll get the Carriage assembled and attached to the t-slot extrusion. For this task,

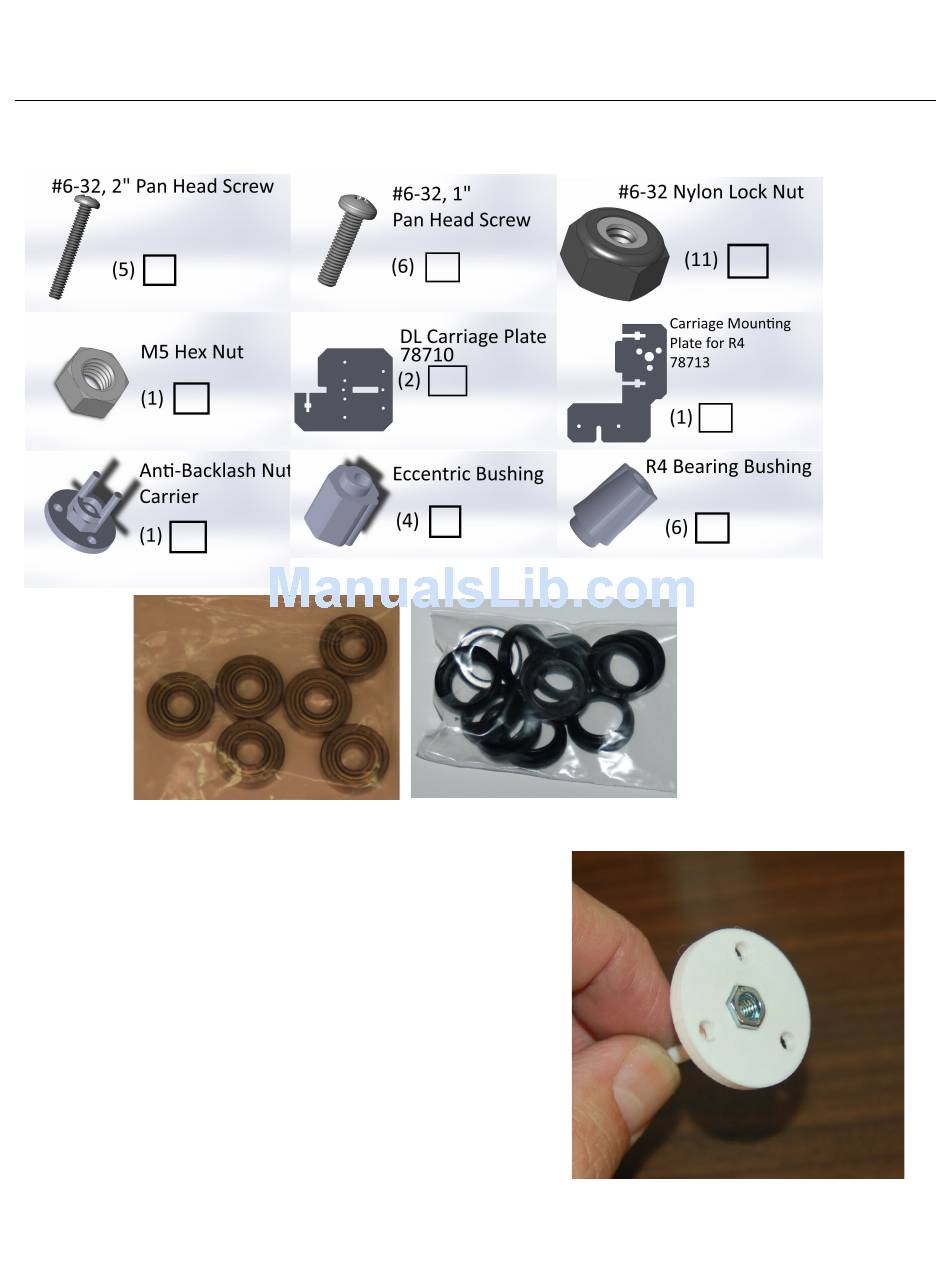

you'll need the following components:
Insert the M5 nut into the bottom of the Anti-Backlash
Nut Carrier as shown. The nut may not be a tight fit, so you'll
need to hold it in place until the carrier is installed.
DropLit Assembly Guide
Fig. 5-18: Anti-Backlash nut
installed.
