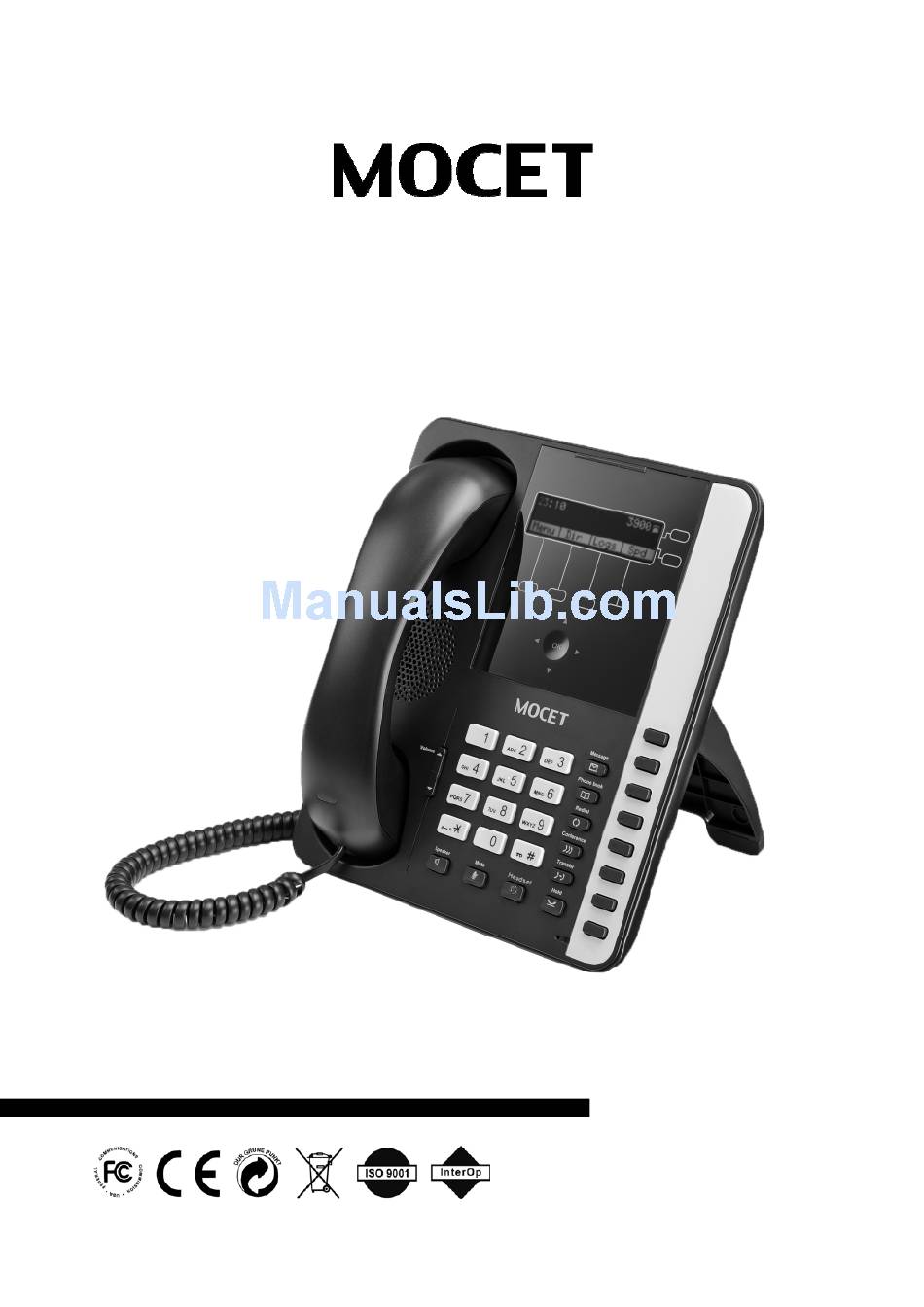

- Page 1 IP3032-E Standard IP Deskphone Quick User Guide Copyright © 2013, All Rights Reserved. Ver: A D/C: 102-0812...
-
Page 2: Fcc Statement
MOCET IP3032-E Standard IP Deskphone Quick User Guide FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 3 MOCET IP3032-E Standard IP Deskphone Quick User Guide TVs, radios, hi-fi or video equipment (which radiate electromagnetic fields). Do not connect the LAN/PC ports to any network other than an Ethernet network. Do not attempt to upgrade your IP phone in an unstable power environment. This could cause unexpected issues.
- Page 4 In addition, the IP3032-E supports HD audio through the use of the G.722 wideband codec, and has a dedicated external headset port. These functions make the IP3032-E a more powerful and flexible IP phone to meet the demands of a busy professional user.
-
Page 5: Hardware Installation
(1) If your Ethernet Switch supports PoE: - Please connect an Ethernet cable to the Switch port from the LAN port of the IP3032-E. Then you will see the phone LEDs and buttons light up momentarily and the phone will boot. Page... - Page 6 - Please connect an Ethernet cable to the Switch port from LAN port of the IP3032-E. - Plug in the IP3032-E power adaptor* to the wall power outlet then plug the barrel plug to the power port on the back of the phone. You should see the phone LEDs and buttons light up momentarily and the phone will boot.
- Page 7 The wall mount accessory is available separately. The figure below illustrates the front view of the IP3032-E IP Phone. With the point numbers, you can find its name and a simple description of specified part in the following table.
- Page 8 A blue LED is lit to indicate active status. Headset key The MUTE key is used to activate or deactivate the microphone on the IP3032-E. A blue LED is used to indicate whether the phone is muted or not. MUTE key...
- Page 9 MOCET IP3032-E Standard IP Deskphone Quick User Guide The SPKR key is used to activate or deactivate the Hands-free feature. A blue LED is used to indicate Speaker Phone key whether the speakerphone is active or not. The Hold key is used to place the active call on hold. A...
- Page 10 MOCET IP3032-E Standard IP Deskphone Quick User Guide IP3032-E Port Functions The back side view and the connectors of the IP3032-E are as follows: Part Name Description Handset Connector RJ-9 Jack for connecting handset cord. Headset Connector RJ-9 Jack for connecting headset cord.
- Page 11 MOCET IP3032-E Standard IP Deskphone Quick User Guide IP3032-E LED Functions The following table describes all functions of LED indicators: Color Status Description No new message(s). Message LED Blue Steady Phone is booting or upgrading. Blinking slow New message(s) indication.
- Page 12 MOCET IP3032-E Standard IP Deskphone Quick User Guide IP3032-E Screen Icons The following table describes line and phone status icons on the main screen: Line Status Icon Description The line is registered to the SIP server or service. The line is not registered to the SIP server or service.
- Page 13 MOCET IP3032-E Standard IP Deskphone Quick User Guide Basic Operation Guide This section will introduce some basic features of the IP3032-E Standard IP Deskphone. Operation Description 1. Pick-up the handset or press a line key or press the speaker key.
- Page 14 MOCET IP3032-E Standard IP Deskphone Quick User Guide 1. Press the “Logs” softkey to enter and view Call log record. Call Logs 2. Select the item Missed Calls and validate Review missed with the validate key “OK”. phone calls ...
- Page 15 MOCET IP3032-E Standard IP Deskphone Quick User Guide IP3032-E Configuration with a Web Browser The IP3032-E can be configured using a web browser. Point your web browser to the factory default IP address of 192.168.1.10 (assuming the subnet mask is 255.255.255.0) and the login dialog will appear.
- Page 16 MOCET IP3032-E Standard IP Deskphone Quick User Guide Upgrading the IP Phone Normally, general user is unable to upgarde IP phone by themselves. To upgrade IP phone, please ask your Administrator for help. Administrator can upgrade the IP phone through the Web user interface of the IP phone. There is also an Emergency Upgrade process available for administrators or vendors to recover a phone with corrupt or defective firmware that cannot be fixed using the web user interface of the phone.
- Page 17 MOCET IP3032-E Standard IP Deskphone Quick User Guide Notes This device has Model number, MAC Address and Serial Number which are located on the back of Base Unit. Please record down them for service check. Model Number: IP3032-E...
