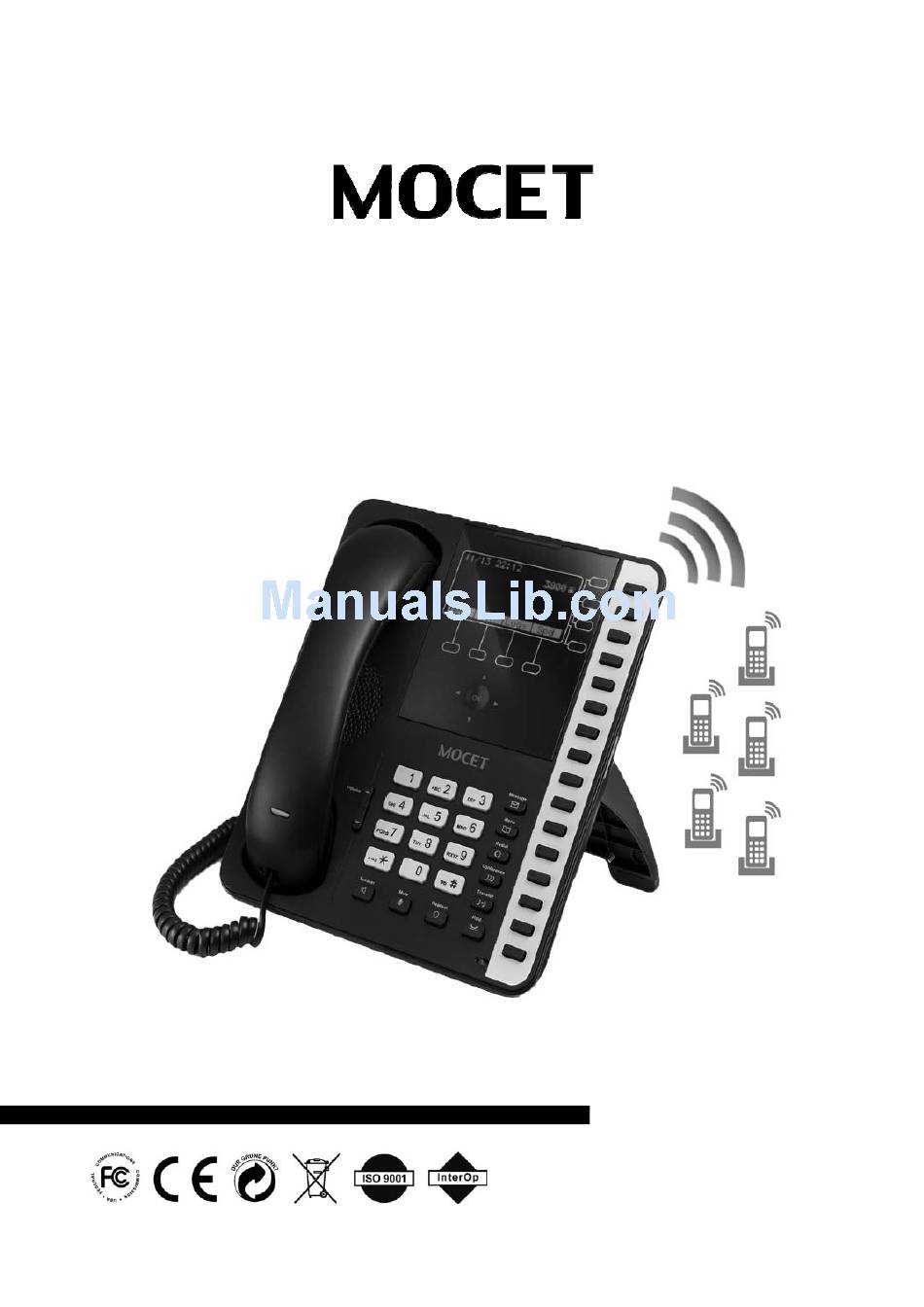

IP3062D Professional IP Deskphone
with DECT Base Station
Quick User Guide
Copyright © 2013, All Rights Reserved.
Ver: C D/C: 102-0903

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP3062D and is the answer not in the manual?

Questions and answers

Related Manuals for Mocet IP3062D

Summary of Contents for Mocet IP3062D

  • Page 1 IP3062D Professional IP Deskphone with DECT Base Station Quick User Guide Copyright © 2013, All Rights Reserved. Ver: C D/C: 102-0903...

  • Page 2: Fcc Statement

    MOCET IP3062D Professional IP Deskphone with DECT Base Station Quick User Guide FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 MOCET IP3062D Professional IP Deskphone with DECT Base Station Quick User Guide TVs, radios, hi-fi or video equipment (which radiate electromagnetic fields). Do not connect the LAN/PC port to any network other than an Ethernet network. Do not attempt to upgrade your IP phone in an unstable power environment. This could cause unexpected issues.
  • Page 4 “always-on” device, it does not require connection to a computer for it to work. In addition, the IP3062D has a large LCD display to show all calls in progress at once and supports HD audio through the use of the G.722 wideband codec, has a dedicated external headset port, USB 2.0 host type A and Mini type B ports, and Extended Dial...

  • Page 5: Hardware Installation

    (1) If your Ethernet Switch supports PoE: - Please connect an Ethernet cable to the Switch port from the LAN port of the IP3062D. Then you will see the phone LEDs and buttons light up momentarily and the phone will boot. Page...
  • Page 6 - Please connect an Ethernet cable to the Switch port from LAN port of the IP3062D. - Plug in the IP3062D power adaptor* to the wall power outlet then plug the barrel plug to the power port on the back of the phone. You should see the phone LEDs and buttons light up momentarily and the phone will boot.
  • Page 7 The wall mount accessory is available separately. The figure below illustrates the front view of the IP3062D IP Phone. With the point numbers, you can find its name and a simple description of specified part in the following table.
  • Page 8 MOCET IP3062D Professional IP Deskphone with DECT Base Station Quick User Guide Part Name Description The hanger can be pulled; it is reversed for wall-mount Hanger installation. For ring and hands-free talking. Speaker Under the cradle, a hook switch is used for handset hang- on and hang-off detection.
  • Page 9 MOCET IP3062D Professional IP Deskphone with DECT Base Station Quick User Guide The SPKR key is used to activate or deactivate the hands-free speaker. A blue LED is used to indicate Speaker Phone key whether the speakerphone is active or not.

  • Page 10: Ip3062D Port Functions

    MOCET IP3062D Professional IP Deskphone with DECT Base Station Quick User Guide IP3062D Port Functions The back side view and the connectors of the IP3062D are as follows: Part Name Description of function Handset Connector RJ-9 Jack for connecting handset cord.

  • Page 11: Ip3062D Led Functions

    MOCET IP3062D Professional IP Deskphone with DECT Base Station Quick User Guide IP3062D LED Functions The following table describes all functions of LED indicators: Color Status Description No new message(s). Message LED Blue Steady Phone is booting or upgrading. Blinking slow New message(s) indication.
  • Page 12 MOCET IP3062D Professional IP Deskphone with DECT Base Station Quick User Guide IP3062D Screen Icons The following table describes line and phone status icons on the main screen: Line Status Icon Description The line is registered to the SIP server or service.
  • Page 13 MOCET IP3062D Professional IP Deskphone with DECT Base Station Quick User Guide Basic Operation Guide This section will introduce some basic features of the IP3062D Professional IP Deskphone with DECT Base Station. Operation Description  1. Pick-up the handset or press a line key or ...

  • Page 14: Missed Calls

    MOCET IP3062D Professional IP Deskphone with DECT Base Station Quick User Guide 1. Press the “Logs” soft key to enter and view Call log record.  Call Logs Review missed phone calls 2. Select the item Missed Calls and validate with the validation key “OK”.

  • Page 15: Handset Operation

    2. Select Settings > Registration > Register HS 3. Enter the system PIN code. The default PIN code is 0000. When the registration is successful, you will hear “BiBi” sound from IP3062D. It means the DH300 handset is registered to IP3062D phone ok.
  • Page 16 Intercom calling between registered handsets or the IP3062D phone.   To make an intercom call from IP3062D to a registered handset, using the LCD menu: 1. Press Menu. 2. Select Phone Setting > DECT Setting. 3. Select Intercom to enter the Intercom Screen.
  • Page 17 MOCET IP3062D Professional IP Deskphone with DECT Base Station Quick User Guide  Paging between registered handsets or the IP3062D phone. To make a paging from IP3062D to a registered handset, using the LCD menu: 1. Press Menu. 2. Select Phone Setting > DECT Setting.
  • Page 18 MOCET IP3062D Professional IP Deskphone with DECT Base Station Quick User Guide IP3062D Configuration with a Web Browser The IP3062D can be configured using a web browser. Point your web browser to the factory default IP address of 192.168.1.10 (assuming the subnet mask is 255.255.255.0) and the login dialog will appear.
  • Page 19 In general, when you finish a configuration, you will be asked by IP phone to confirm the save of configuration and reboot function. To clear the current configuration and reset the IP3062D to factory defaults, please ask your Administrator for help. Upgrading the IP Phone A user normally will not need to update the firmware of the phone.
  • Page 20 MOCET IP3062D Professional IP Deskphone with DECT Base Station Quick User Guide Notes   This device has Model number, MAC Address and Serial Number which are located on the back of Base Unit. Please record down them for service check.
