Mocet IP3032 Quick User Manual

Hide thumbs Also See for IP3032:

Advertisement

Quick Links

Download this manual See also: User Manual

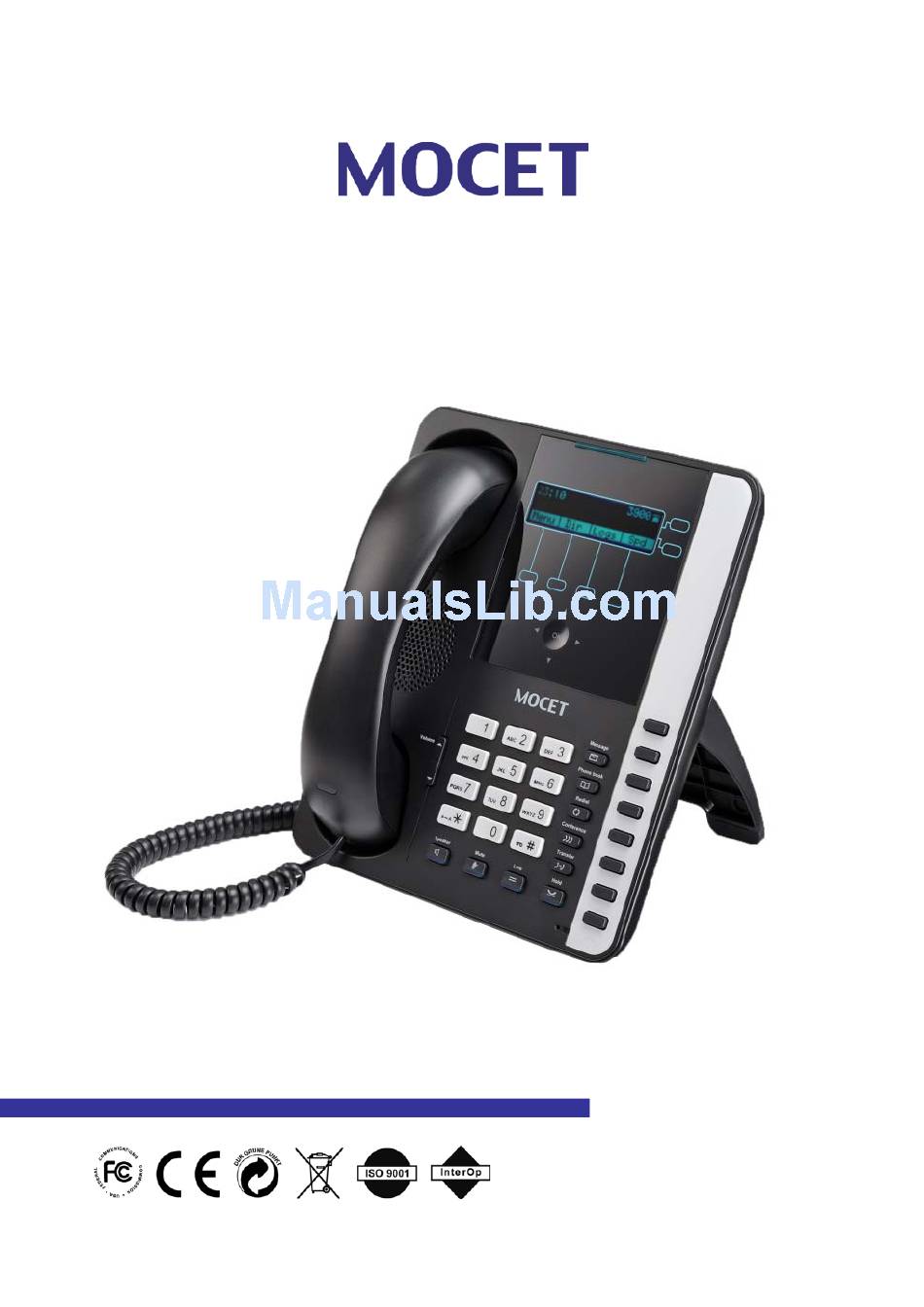

IP3032 Standard IP Deskphone
Quick User Guide
Copyright © 2012, All Rights Reserved.
Ver: B D/C: 101-1204

Advertisement

loading
Need help?

Need help?

Do you have a question about the IP3032 and is the answer not in the manual?

Questions and answers

Related Manuals for Mocet IP3032

Summary of Contents for Mocet IP3032

  • Page 1 IP3032 Standard IP Deskphone Quick User Guide Copyright © 2012, All Rights Reserved. Ver: B D/C: 101-1204...

  • Page 2: Fcc Statement

    MOCET IP3032 Standard IP Deskphone Quick User Guide FCC Statement This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause interference to radio communications. This equipment as been tested and found to comply with the limits for a Class B computing device pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against radio interference when operated in a commercial environment.

  • Page 3: Hardware Installation

    The IP3032 can support three different tilt angles (please refer to the illustrations below). Attaching the Stand to the Phone After unpacking the box, install the stand on the IP3032 phone first. Here we illustrate an example below of 60° angle installation with the stand. There are three sets of “antlers” on the top of the stand (named 1, 2 and 3) and there are three sets of mounting slots on the back of the phone (named A, B and C).
  • Page 4 To remove the stand from the IP3032 phone, follow the procedures below (we are using a 60° stand as an example):  Step : Place the main body of the IP3032 face down in your lap or a firm sofa; Page...
  • Page 5 MOCET IP3032 Standard IP Deskphone Quick User Guide  Step : Place with two hands on the stand of the IP3032 and firmly press down the stand, the “2 ” antler will be pulled straight out of the slot “B” hole; Keep pressing down the stand, the “3...
  • Page 6 - Please connect an Ethernet cable to the Switch port from LAN port. - Plug in the IP3032 power adaptor to the wall power outlet then plug the barrel plug to the power port on the back of the phone. You should see the phone LEDs and buttons light up momentarily and the phone will boot.
  • Page 7 The wall mount accessory is available separately. The figure below illustrates the front view of the IP3032 IP Phone. With the point numbers, you can find its name and a simple description of specified part in the following table.
  • Page 8 3,4. Or switch back from line group 3,4 to line group 1,2. Line Group key The MUTE key is used to activate or deactivate the microphone on the IP3032. A blue LED is used to indicate whether the phone is muted or not. MUTE key Page...
  • Page 9 MOCET IP3032 Standard IP Deskphone Quick User Guide The SPKR key is used to activate or deactivate the Hands-free feature. A blue LED is used to indicate whether the Speaker Phone speakerphone is active or not. The Hold key is used to place the active call on hold. A blue LED is used to indicate whether the call is on hold or not.
  • Page 10 MOCET IP3032 Standard IP Deskphone Quick User Guide IP3032 Port Functions The back side view and the connectors of the IP3032 are as follows: Part Name Description Handset Connector RJ-9 Jack for connecting handset cord. RJ-45 Jack 100/10Mbps Ethernet port for connecting to the local LAN Port area network (LAN).
  • Page 11 MOCET IP3032 Standard IP Deskphone Quick User Guide IP3032 LED Functions The following table describes all functions of LED indicators: Color Status Description No new message(s). Message LED Blue Steady Phone is booting or upgrading. Blinking slow New message(s) indication.
  • Page 12 MOCET IP3032 Standard IP Deskphone Quick User Guide IP3032 Line Status Icons The following table describes line status icons on the main screen: Line Status Icon Description The line is registered to the SIP server or service. The line is not registered to the SIP server or service.
  • Page 13 MOCET IP3032 Standard IP Deskphone Quick User Guide Basic Operation Guide This section will introduce some basic features of the IP3032 Standard IP Deskphone. Operation Description   1. Pick-up the handset or press a line key or  press the speaker key.
  • Page 14 MOCET IP3032 Standard IP Deskphone Quick User Guide 1. Press the “Logs” softkey to enter and view Call log record.  Call Logs 2. Select the item Missed Calls and validate Review missed with the validate key “OK”. phone calls ...
  • Page 15 MOCET IP3032 Standard IP Deskphone Quick User Guide IP3032 Configuration with a Web Browser The IP3032 can be configured using a web browser. Point your web browser to the factory default IP address of 192.168.1.10 (assuming the subnet mask is 255.255.255.0) and the login dialog will appear.
  • Page 16 MOCET IP3032 Standard IP Deskphone Quick User Guide Upgrading the IP Phone Normally, general user is unable to upgarde IP phone by themselves. To upgrade IP phone, please ask your Administrator for help. Administrator can upgrade the IP phone through the Web user interface of the IP phone. There is also an Emergency Upgrade process available for administrators or vendors to recover a phone with corrupt or defective firmware that cannot be fixed using the web user interface of the phone.
  • Page 17 MOCET IP3032 Standard IP Deskphone Quick User Guide Notes   This device has Model number, MAC Address and Serial Number which are located on the back of Base Unit. Please record down them for service check. Model Number: IP3032...
