Mocet IP3062-W Quick User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

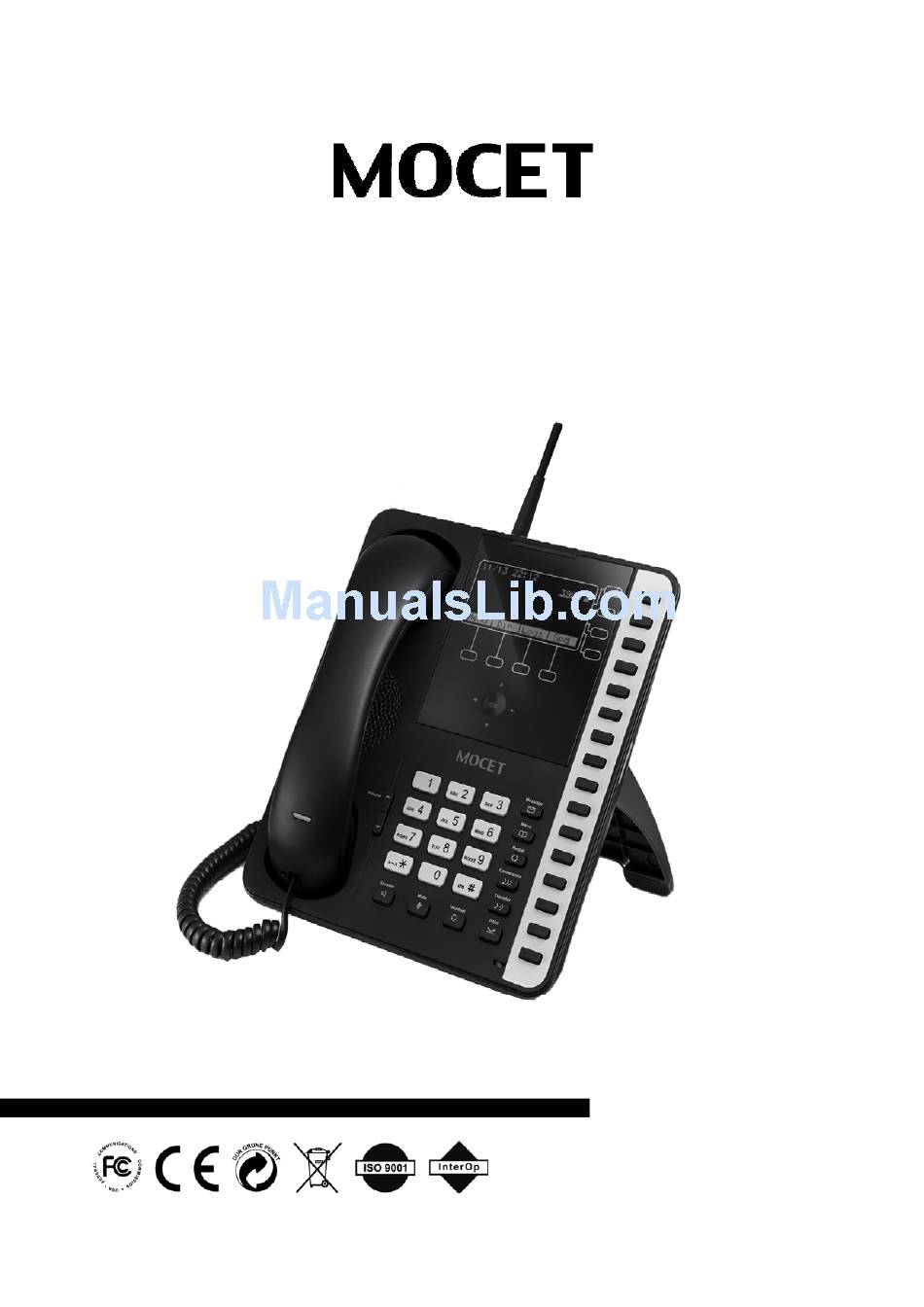

IP3062-W Professional IP Deskphone
Quick User Guide
Copyright © 2013, All Rights Reserved.
Ver: A D/C: 102-0801

Advertisement

loading
Need help?

Need help?

Do you have a question about the IP3062-W and is the answer not in the manual?

Questions and answers

Related Manuals for Mocet IP3062-W

Summary of Contents for Mocet IP3062-W

  • Page 1 IP3062-W Professional IP Deskphone Quick User Guide Copyright © 2013, All Rights Reserved. Ver: A D/C: 102-0801...

  • Page 2: Fcc Statement

    MOCET IP3062-W Professional IP Deskphone Quick User Guide FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 MOCET IP3062-W Professional IP Deskphone Quick User Guide TVs, radios, hi-fi or video equipment (which radiate electromagnetic fields). Do not connect the LAN/PC port to any network other than an Ethernet network. Do not attempt to upgrade your IP phone in an unstable power environment. This could cause unexpected issues.
  • Page 4 “always-on” device, it does not require connection to a computer for it to work. In addition, the IP3062-W has a large LCD display to show all calls in progress at once and supports HD audio through the use of the G.722 wideband codec, has a dedicated external headset port, USB 2.0 host type A and Mini type B ports, and Extended Dial Module port.

  • Page 5: Hardware Installation

    IP3062-W. Connecting the Power to the Phone Plug in the IP3062-W power adaptor to the wall power outlet then plug the barrel plug to the power port on the back of the phone. You should see the phone LEDs and buttons light up momentarily and the phone will boot.
  • Page 6 Connecting Your Phone to the Wireless Network Attach the wireless adapter to the port marked USB icon on the bottom of the IP3062-W. Notice : The PC port is not supported in wirelss operation; the PC port is only supported in a wired environment.
  • Page 7 The wall mount accessory is available separately. The figure below illustrates the front view of the IP3062-W IP Phone. With the point numbers, you can find its name and a simple description of specified part in the following table.
  • Page 8 A blue LED is lit to indicate active status. Headset key The MUTE key is used to activate or deactivate the microphone on the IP3062-W. A blue LED is used to indicate whether the phone is muted or not. MUTE key Page...
  • Page 9 MOCET IP3062-W Professional IP Deskphone Quick User Guide The SPKR key is used to activate or deactivate the Hands-free feature. A blue LED is used to indicate whether the speakerphone is active or not. Speaker Phone key The Hold key is used to place the active call on hold. A blue LED is used to indicate whether the call is on hold or not.
  • Page 10 MOCET IP3062-W Professional IP Deskphone Quick User Guide IP3062-W Port Functions The back side view and the connectors of the IP3062-W are as follows: Part Name Description Handset RJ-9 Jack for connecting handset cord. Connector Headset RJ-9 Jack for connecting headset cord.
  • Page 11 MOCET IP3062-W Professional IP Deskphone Quick User Guide Their locations are shown in the figure below: Page...
  • Page 12 MOCET IP3062-W Professional IP Deskphone Quick User Guide IP3062-W LED Functions The following table describes all functions of LED indicators: Color Status Description No new message(s). Message LED Blue Steady Phone is booting or upgrading. Blinking slow New message(s) indication.
  • Page 13 Phone is connecting with the wireless adapter, and enable wireless connection. The Wi-Fi signal strength of IP3062-W which is connecting to Wi-Fi network. Phone is connecting with an USB memory dongle. Phone is connecting with an USB keyboard.
  • Page 14 MOCET IP3062-W Professional IP Deskphone Quick User Guide Basic Operation Guide This section will introduce some basic features of the IP3062-W Professional IP Deskphone. Operation Description  1. Pick-up the handset or press a line key or  press the speaker key.

  • Page 15: Call Logs

    MOCET IP3062-W Professional IP Deskphone Quick User Guide 1. Press the “Logs” softkey to enter and view Call log record.  Call Logs Review missed phone calls 2. Select the item Missed Calls and validate with the validate key “OK”.
  • Page 16 MOCET IP3062-W Professional IP Deskphone Quick User Guide IP3062-W Configuration with a Web Browser The IP3062-W can be configured using a web browser. Point your web browser to the factory default IP address of 192.168.1.10 (assuming the subnet mask is 255.255.255.0) and the login dialog will appear.
  • Page 17 MOCET IP3062-W Professional IP Deskphone Quick User Guide Upgrading the IP Phone Normally, general user is unable to upgarde IP phone by themselves. To upgrade IP phone, please ask your Administrator for help. Administrator can upgrade the IP phone through the Web user interface of the IP phone. There is also an Emergency Upgrade process available for administrators or vendors to recover a phone with corrupt or defective firmware that cannot be fixed using the web user interface of the phone.
  • Page 18 MOCET IP3062-W Professional IP Deskphone Quick User Guide Notes   This device has Model number, MAC Address and Serial Number which are located on the back of Base Unit. Please record down them for service check. Model Number: IP3062-W...
