Mocet IP3072 Quick User Manual

Smart office ip deskphone
Hide thumbs Also See for IP3072:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Administrator's Manual, User Manual

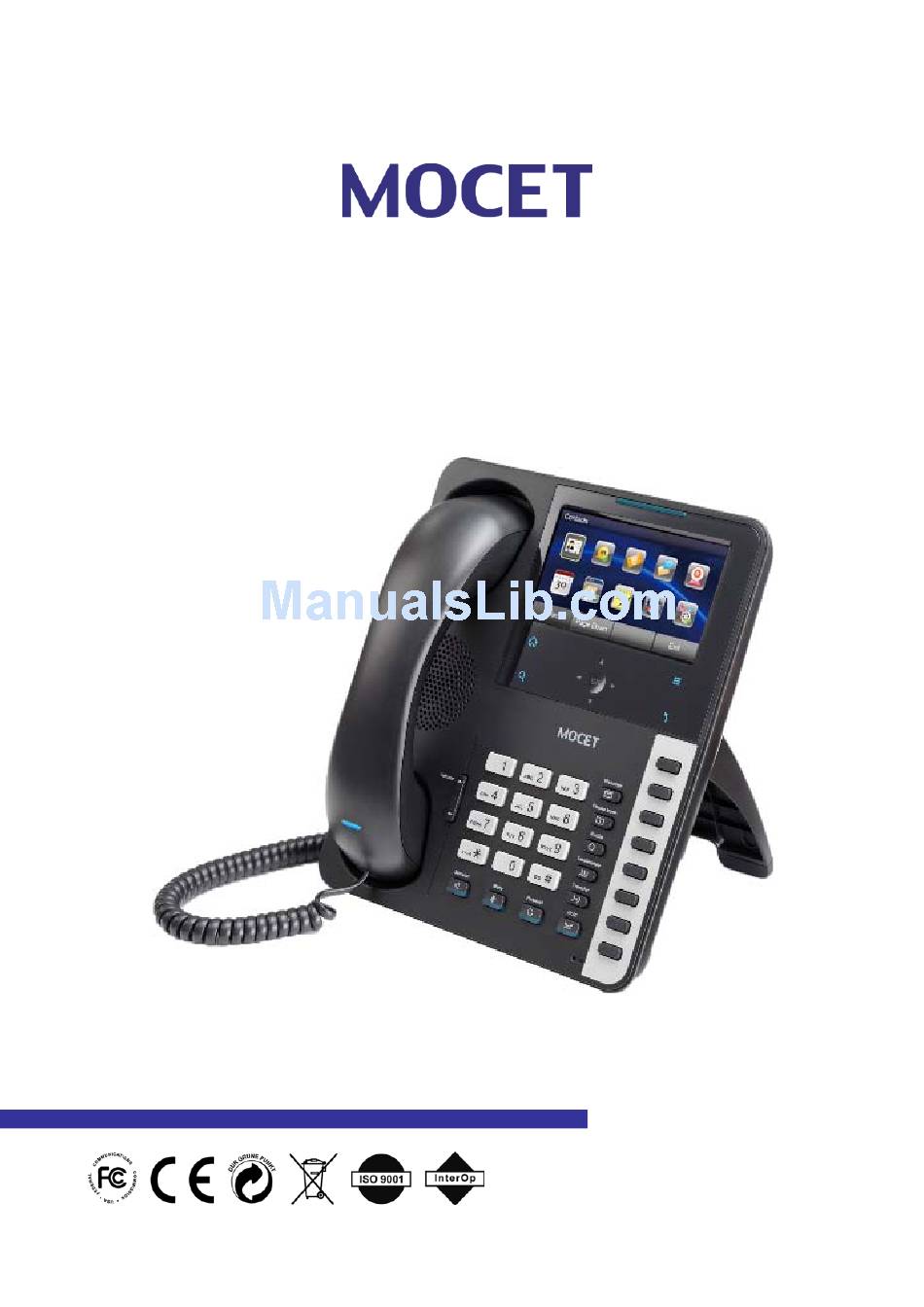

IP3072 Smart Office IP Deskphone
Quick User Guide
Copyright © 2012, All Rights Reserved.
Ver: B D/C: 101-1204

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP3072 and is the answer not in the manual?

Questions and answers

Related Manuals for Mocet IP3072

Summary of Contents for Mocet IP3072

  • Page 1 IP3072 Smart Office IP Deskphone Quick User Guide Copyright © 2012, All Rights Reserved. Ver: B D/C: 101-1204...

  • Page 2: Fcc Statement

    MOCET IP3072 Smart Office IP Deskphone Quick User Guide FCC Statement This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause interference to radio communications.
  • Page 3 The IP3072, it can be positioned with multiple tilt angles with a wall mount option as well, has a built-in two port Gigabit Ethernet switch with Class 2/3 power over Ethernet (PoE) support, and eight programable keys.

  • Page 4: Hardware Installation

    (named A, B and C). See the illustration below. The procedures for attaching the stand to the phone are as follows :  Step : Place the main body of the IP3072 face down on your lap or a firm sofa;  Step : First snap the “2 ”...
  • Page 5 60° stand as an example):  Step : Place the main body of the IP3072 face down in your lap or a firm sofa;  Step : Place with two hands on the stand of the IP3072 and firmly press down the stand, the “2...
  • Page 6 (1) If your Ethernet Switch supports PoE: - Please connect an Ethernet cable to the Switch port from the LAN port of the IP3072. Then you will see the phone LEDs and buttons light up momentarily and the phone will boot. Page...
  • Page 7 - Please connect an Ethernet cable to the Switch port from the LAN port of the IP3072. - Plug in the IP3072 power adaptor to the wall power outlet then plug the barrel plug to the power port on the back of the phone. You should see the phone LEDs and buttons light up momentarily and the phone will boot.
  • Page 8 The wall mount accessory is available separately. The figure below illustrates the front view of the IP3072 IP Phone. With the point numbers, you can find its name and a simple description of specified part in the following table.
  • Page 9 MOCET IP3072 Smart Office IP Deskphone Quick User Guide Part Name Description The hanger can be pulled; it is reversed for wall-mount Hanger installation. Speaker For ring and hands-free talking. Under the cradle, a hook switch is used for handset hang-on and Hook switch &...
  • Page 10 MOCET IP3072 Smart Office IP Deskphone Quick User Guide The Volume Control key is used to set the loudness of the ringer, handset, headset and speakerphone functions. While the phone is in idle state, the Ringer is adjustable. While in a call, the handset, headset or speaker volume is adjustable.

  • Page 11: Ip3072 Port Functions

    USB Port Type A connect with a keyboard.) Please refer to the figure below for these I/O port locations on the back shell of the IP3072 phone. Remarks: There are 2 wiring slots under the I/O ports. One is used for fit Handset cord and the other is used to fit the power adaptor wire.

  • Page 12: Ip3072 Led Functions

    MOCET IP3072 Smart Office IP Deskphone Quick User Guide IP3072 LED Functions The following table describes all functions of LED indicators: Color Status Description No new message(s). Message LED Blue Steady The phone is booting or upgrading. Blinking slow New message(s) indication.
  • Page 13 MOCET IP3072 Smart Office IP Deskphone Quick User Guide Feature is set to “ON – Active” Steady or the phone is busy. Programmable LED Blue Blinking slow Incoming call notification. Feature is set “Off-inactive”. No call is on hold. Hold LED...
  • Page 14 MOCET IP3072 Smart Office IP Deskphone Quick User Guide IP3072 Screen Icons The following table describes line and phone status icons on the main screen: Top Line Icons on LCD Description The icon indicates the network cable is disconnected or broken.
  • Page 15 MOCET IP3072 Smart Office IP Deskphone Quick User Guide Basic Operation Guide This section will introduce some basic operation of the IP3072 phone. When the phone is booted up and gets into idle state, or anytime user presses the Home key(...
  • Page 16 MOCET IP3072 Smart Office IP Deskphone Quick User Guide The Icon Function Description In the menu, there are 18 icons and they are useful for users in different applications. Most of the icon functions can be activated in either idle time or calling time. Their function or applications are described below.
  • Page 17 MOCET IP3072 Smart Office IP Deskphone Quick User Guide The world clock supports world wide time zone information that user can read the current time of any location. It is a very World Clock convenient tool for users to book meeting time with multiple location parties.
  • Page 18 MOCET IP3072 Smart Office IP Deskphone Quick User Guide General Setting Items For setting basic items, please follow the steps in the menu tree described below. For other advanced items, please refer to the user guide of IP3072 IP phone. Operation Description Menu ...
  • Page 19 MOCET IP3072 Smart Office IP Deskphone Quick User Guide  3. On-hook the handset when your conversation is over.  1. Pick-up the handset upon hearing the phone ringing. Receiving a call  2. On-hook the handset when your conversation is over.

  • Page 20: Multimedia Services

    MOCET IP3072 Smart Office IP Deskphone Quick User Guide Multimedia Services Operation Description Menu  Multimedia  Video Viewer Viewing Choose video source from either Embedded Memory or External Video(s) Memory Card. Note: To play video, your IP Phone must have MP4 decoder. Please contact with your service provider for more information.
  • Page 21 MOCET IP3072 Smart Office IP Deskphone Quick User Guide IP3072 Configuration through a Web Browser The IP3072 can be configured using a web browser. Point your web browser to the factory default IP address of 192.168.1.10 (assuming the subnet mask is 255.255.255.0) and the login dialog will appear.
  • Page 22 MOCET IP3072 Smart Office IP Deskphone Quick User Guide Upgrading the IP Phone Normally, general user is unable to upgarde IP phone by themselves. To upgrade IP phone, please ask your Administrator for help. Administrator can upgrade the IP phone through the Web user interface of the IP phone.
  • Page 23 MOCET IP3072 Smart Office IP Deskphone Quick User Guide Notes   This device has Model number, MAC Address and Serial Number which are located on the back of Base Unit. Please record down them for service check. Model Number: IP3072...
