Mocet Soho IP3022 Quick User Manual

Hide thumbs Also See for Soho IP3022:

Advertisement

Quick Links

Download this manual See also: User Manual

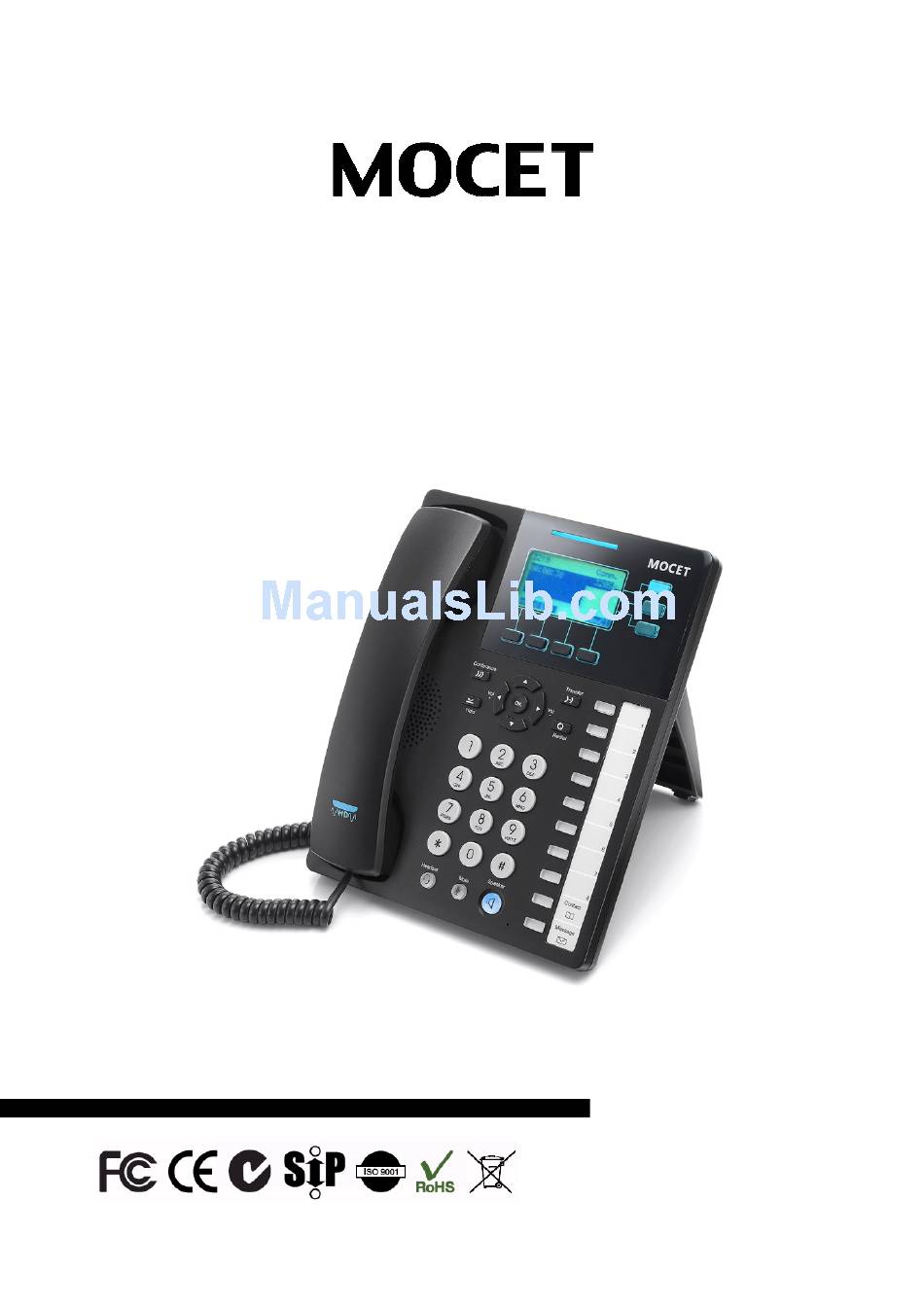

IP3022 / IP3021
SOHO IP Deskphone
Quick User Guide
Copyright © 2014, All Rights Reserved.
Ver: 1.11 D/C: 103-0113

Advertisement

loading
Need help?

Need help?

Do you have a question about the Soho IP3022 and is the answer not in the manual?

Questions and answers

Related Manuals for Mocet Soho IP3022

Summary of Contents for Mocet Soho IP3022

  • Page 1 IP3022 / IP3021 SOHO IP Deskphone Quick User Guide Copyright © 2014, All Rights Reserved. Ver: 1.11 D/C: 103-0113...

  • Page 2: Fcc Statement

    MOCET IP3022 / IP3021 SOHO IP Deskphone Quick User Guide FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 MOCET IP3022 / IP3021 SOHO IP Deskphone Quick User Guide Take care not to scratch the LCD screen. The IP phone is designed to work in temperatures from 5 C to 40 The IP phone must be installed at least 1 meter from radio frequency equipment, such as TVs, radios, hi-fi or video equipment (which radiate electromagnetic fields).

  • Page 4: Hardware Installation

    LCD menus or from the web user interface of phone. The IP3022 / IP3021 can be automatically provisioned from a local server (like DHCP or TFTP), or from Internet using the built-in MOCET auto-provisioning system and management protocols.
  • Page 5 MOCET IP3022 / IP3021 SOHO IP Deskphone Quick User Guide Connecting the Handset to the Phone Connect the handset to the curly handset cord and then connect the other end of the curly handset cord to the port marked HAND with the handset icon on the bottom of the phone.
  • Page 6 MOCET IP3022 / IP3021 SOHO IP Deskphone Quick User Guide Office LAN or Internet PoE Ethernet Switch Office LAN or Internet Non-PoE Ethernet Switch To eliminate the requirement for multiple Ethernet cables to an user’s location, the user’s computer can be connected to the network through the second Ethernet port on the IP3022 / IP3021 phone with an Ethernet cable.
  • Page 7 Power over Ethernet (PoE), you must order the power adapter separately from MOCET. Do not use other Power Adapters. Use only the MOCET IP3022 / Warning IP3021 Power Adapter in the package of IP3022 / IP3021. Other spec power adapters may damage your IP3022 / IP3021 IP Phone.
  • Page 8 MOCET IP3022 / IP3021 SOHO IP Deskphone Quick User Guide Phone book Message Part Name Description The hanger can be pulled; it is reversed for wall-mount Hanger installation. Speaker For ring and hands-free talking. Under the cradle, a hook switch is used for handset hang-on and hang-off detection.
  • Page 9 MOCET IP3022 / IP3021 SOHO IP Deskphone Quick User Guide The message LED. Steady Blue means the phone is booting or upgrading. Message LED The LCD screen is used for displaying phone’s LCD Display settings, phone number, call status and so forth.
  • Page 10 MOCET IP3022 / IP3021 SOHO IP Deskphone Quick User Guide The SPKR key is used to activate or deactivate the Hands-free feature. A blue LED is used to indicate whether the speakerphone is active or not. Speaker Phone key The Hold key is used to place the active call on hold.
  • Page 11 MOCET IP3022 / IP3021 SOHO IP Deskphone Quick User Guide IP3022 / IP3021 Port Functions The rear side view and connectors on the IP3022 / IP3021 are as follows: Part Name Description Handset RJ-9 Jack for connecting handset cord. Connector Headset RJ-9 Jack for connecting headset cord.
  • Page 12 MOCET IP3022 / IP3021 SOHO IP Deskphone Quick User Guide Page...
  • Page 13 MOCET IP3022 / IP3021 SOHO IP Deskphone Quick User Guide IP3022 / IP3021 LED Functions The following table describes all functions of LED indicators: Color Status Description No new message(s). Message LED Blue Steady Phone is booting or upgrading. Blinking slow New message(s) indication.
  • Page 14 IP-EDMX(s). Please contact your distributor for purchasing. [Warning]: Due to more power required, the power adaptor of IP3022 should be changed to 5V/2A spec that is used in MOCET IP3062 phone. Please contact your distributor for purchasing. Basic Operation Guide This section will introduce some basic features of the IP3022 / IP3021 IP phone.
  • Page 15 MOCET IP3022 / IP3021 SOHO IP Deskphone Quick User Guide 2. Press the Volume control key Left (+) or Right (-) to adjust the volume of Speaker, Handset, or Headset. 1. Press the “Logs” softkey to enter and view Call log record.
  • Page 16 MOCET IP3022 / IP3021 SOHO IP Deskphone Quick User Guide settings, EDM settings and Phonebook settings Resetting the IP Phone There is a “Reboot” soft key in LCD Menu, which can execute the warm reboot of the phone. In general, when you finish a configuration, you will be asked by IP phone to confirm the save of configuration and reboot function.
  • Page 17 MOCET IP3022 / IP3021 SOHO IP Deskphone Quick User Guide Notes  This device has Model number, MAC Address and Serial Number which are located on the back of Base Unit. Please record down them for service check. Model Number: IP302...

This manual is also suitable for:

Soho ip3021
