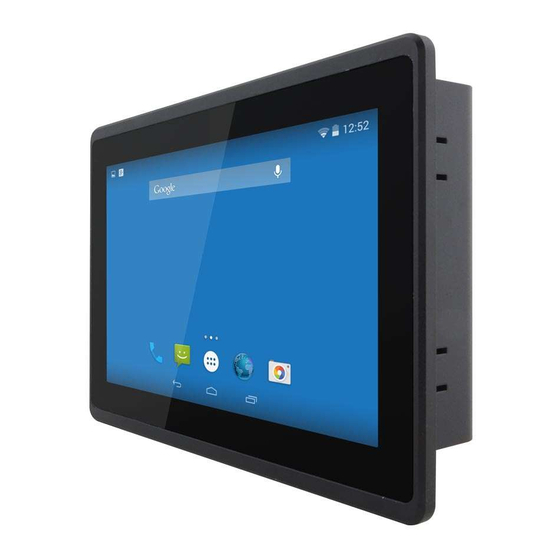

Winmate W07FA3S-EHT1 User Manual
7”/10.1”/15.6” pcap touchscreen freescale cortex a9 i.mx6 dual core 1ghz
Hide thumbs
Also See for W07FA3S-EHT1:
- Quick start manual (31 pages) ,
- User manual (72 pages) ,
- User manual (60 pages)
Subscribe to Our Youtube Channel
Related Manuals for Winmate W07FA3S-EHT1
Summary of Contents for Winmate W07FA3S-EHT1
-
Page 1: User Manual
E-Series HMI 7”/10.1”/15.6” PCAP Touchscreen Freescale® Cortex® A9 i.MX6 Dual Core 1GHz Elegant Design Model No.: W07FA3S-EHT1 W10FA3S-EHH2 W15FA3S-EHA2 User Manual Version 1.1 9152111I100W Document Part Number:... - Page 2 Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners.
-
Page 3: Customer Service
Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance. - Page 4 Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. NOTE: A note is used to emphasize helpful information IMPORTANT:...
-
Page 5: Safety Information
Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis. Toujours débrancher le cordon d’alimentation du chassis lorsque vous travaillez sur celui-ci. - Page 6 CAUTION/ATTENTION Do not cover the openings! Ne pas couvrir les ouvertures! Before connecting the equipment to the power outlet make sure the voltage of the power source is correct. Position the power cord so that people cannot step on it. Do not place anything over the power cord.
- Page 7 WARNING!/ AVERTISSEMENT! Always ground yourself against electrostatic damage to the device. Toujours vérifier votre mise à la terre afin que l’équipement ne se décharge pas sur vous. Cover workstations with approved anti-static material. Use a wrist strap connected to a work surface and properly grounded tools and equipment. ...
-
Page 8: Important Information
Important Information Countries/ Area Symbol This equipment complies with essential requirements of: FCC Part 15 Subpart B Regulations Class B Electromagnetic Compatibility Directive(2014/30/EU) European Union Low Voltage Directive (2014/35/EU) Restrictions of the use of certain hazardous substances (RoHS) Directive (2011/65/EU) Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules. -
Page 9: Ec Declaration Of Conformity
EC Declaration of Conformity This equipment is in conformity with the requirement of the following EU legislations and harmonized standards. Product also complies with the Council directions. Electromagnetic Compatibility Directive (2014/30/EU) EN55024: 2010 EN 55022: 2010 Class B o IEC61000-4-2: 2009 o IEC61000-4-3: 2006+A1: 2007+A2: 2010 o IEC61000-4-4: 2012 o IEC61000-4-5: 2014... -
Page 10: About This User Manual
About This User Manual This User Manual provides information about using the Winmate® E-Series HMI. The documentation set for the E-Series HMI with Freescale® Cortex® A9 i.MX6 Dual Core provides information for specific user needs, and includes: E-Series HMI User Manual – contains detailed description on how to use the HMI device, its components and features. -
Page 11: Table Of Contents
Contents Preface ............................ii About This User Manual ....................... x 1 Introduction ..........................1 1.1 Product Features ........................1 1.2 Hardware Specifications ...................... 2 1.3 Software Support ......................... 3 1.4 Packing List ........................... 4 1.5 Appearance .......................... 5 1.5.1 Appearance 7” ......................5 1.5.2 Appearance 10.1”... - Page 12 3.4 Ethernet ..........................22 3.4.1 Configuring Ethernet ....................23 3.4.2 Checking Ethernet Settings ..................23 3.5 Winmate® Home Manager (WHM) ................... 24 3.5.1 How to Lock Applications ..................24 3.5.2 How to Reset WHM ....................26 4 Software Installation ....................... 30 4.1 Android Debug Bridge (ADB) Driver Installation ...............
- Page 13 6.2 Problem Report Form ......................51 xiii...
- Page 14 Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the HMI in the packing list. Mechanical dimensions and drawings included in this chapter. E-Series HMI...
-
Page 15: Introduction
Chapter 1 Introduction 1 Introduction Congratulations on purchasing Winmate® E-Series HMI. Winmate® continues developing new generation of Human Machine Interfaces for Industry 4.0 and Internet of Things (IoT). Our E-Series HMI runs on Android 4.4 / Linux operating system that allows installing the latest applications (APPs). -
Page 16: Hardware Specifications
User Manual Chapter 1 Introduction 1.2 Hardware Specifications Model Name W07FA3S-EHT1 W10FA3S-EHH2 W15FA3S-EHA2 Display Size/ Type 7” TFT 10.1” TFT 15.6” Resolution 1024x600 1280 x 800 1366 x 768 Brightness, 320 (typ.) 350 (typ.) 400 (typ.) Contrast Ratio 500 : 1 (typ.) 800:1 (typ.) -
Page 17: Software Support
User Manual Chapter 1 Introduction 1.3 Software Support Winmate provide the following SDK for E-Series HMI: Software Development Tools Android Programming Guide Linux Programming Guide E-Series HMI... -
Page 18: Packing List
User Manual Chapter 1 Introduction 1.4 Packing List Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list: Quick Start Guide 7”... -
Page 19: Appearance
User Manual Chapter 1 Introduction 1.5 Appearance This section describes appearance and input/output layout. 1.5.1 Appearance 7” ① Mini USB Console (Linux use) ⑤ RS232/422/485 ② Micro SD ⑥ CAN BUS ③ LAN/PoE ⑦ 1 x USB 2.0 ④ USB OTG ⑧... -
Page 20: Appearance 15.6
User Manual Chapter 1 Introduction 1.5.3 Appearance 15.6” ① Mini USB Console (Linux use) ⑤ RS232/422/485 ② Micro SD ⑥ CAN BUS ③ LAN/PoE ⑦ 1 x USB 2.0 ④ USB OTG ⑧ 12V DC in (Phoenix type) E-Series HMI... -
Page 21: Dimensions
User Manual Chapter 1 Introduction 1.6 Dimensions This section describes mechanical dimensions of Bar-Type Panel PC. Notice that this is a simplified drawing and some components are not marked in detail. Please contact our sales representative if you need further product information. 1.6.1 Dimensions 7”... -
Page 22: Dimensions 15.6
User Manual Chapter 1 Introduction 1.6.3 Dimensions 15.6” E-Series HMI... -
Page 23: Getting Started
Getting Started This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations. E-Series HMI... -
Page 24: Getting Started
User Manual Chapter 2 Getting Started 2 Getting Started This chapter provides information on how to connect the HMI device to the source of power, connector pinouts and the guideline to turn on/off the HMI device. 2.1 Powering On 2.1.1 AC Adapter Components 2 Pin Terminal Block to Power Cord AC Adapter... -
Page 25: Power Considerations
User Manual Chapter 2 Getting Started ALTERNATING CURRENT / MISE À LE TERRE! This product must be grounded. Use only a grounded AC outlet. Install the additional PE ground wire if the local installation regulations require it. *If you do not use a grounded outlet while using the device, you may notice an electrical tingling sensation when the palms of your hands touch the device. -
Page 26: Connecting The Power
User Manual Chapter 2 Getting Started 2.1.3 Connecting the Power Cable Mounting Steps Connect a 2-pin terminal block to the HMI connector. Connect the other side of the terminal block to the AC adapter. Connect the AC adapter to the power cord. Plug in the power cord to a working AC wall outlet .The device will boot automatically. -
Page 27: Connector Pinouts
TxD- TxD+ RxD+ RxD- Serial port settings can be configured in Winmate application for Android OS. Refer to Ch.2, 2.4 “Configuring Serial Port Settings” of this user manual. 2.2.3 USB 2.0 Connector Use USB A Type (USB2.0) connector to connect your HMI device to other USB2.0 compatible devices. -
Page 28: Usb Otg Connector
User Manual Chapter 2 Getting Started 2.2.4 USB OTG Connector Use USB OTG connector to connect the HMI device to other external devices. Use USB OTG cable to install software on the HMI device. Pin № Name Pin № Name USB_OTG_D- USB_OTG_D+ USB_OTG_ID... -
Page 29: Turning On/ Off The Hmi Device
User Manual Chapter 2 Getting Started 2.3 Turning On/ Off the HMI Device This section describes how to turn on / off the HMI device. To turn on the HMI device: 1. Connect the HMI device to the source of power/ 2. -
Page 30: Configuring Serial Port Settings
User Manual Chapter 2 Getting Started 2.4 Configuring Serial Port Settings Serial COM Port can be configured for RS-232, RS-422 or RS-485. Winmate provide COM port settings application for Android OS. Step 1 Settings > Accessibility Step 2 Accessibility > Comport-Setting... - Page 31 User Manual Chapter 2 Getting Started Step 3 Comport-Setting > Comport 1/ Comport 2/ Comport 3 * Select Comport 1/ Comport 2/ Comport 3 that you want to configure. Step 4 Comport 1 > RS232/RS422/RS485 * Configure Comport 1 settings E-Series HMI...
- Page 32 Operating the Device This chapter provides detailed information on how to operate the device. If you have been using Android touch-screen Panel PCs before, the interface may look familiar. Sections include system settings parameters. E-Series HMI...
-
Page 33: Operating The Device
User Manual Chapter 3 Operating the Device 3 Operating the Device In this chapter you will find instructions on how to operate the HMI device. 3.1 Operating System E-series HMI support Android 4.4 (Default) and Linux Kernel 3.0.35, QT 5.4 Browser (Optional). -
Page 34: System Settings
User Manual Chapter 3 Operating the Device Scale Place two finger on the screen and pinching them together Type Touch where you want to type. A keyboard pops up that lets you type into the field. 3.3 System Settings This section explains how to adjust main system settings in Android 4.4. 3.3.1 Set up the Device When you first turn on your HMI device, you’ll see a Welcome screen. -
Page 35: Quick Settings
User Manual Chapter 3 Operating the Device All APPs Icon Opens a list of all applications. Back Opens the previous screen you were working in. Once you back up to the Home screen, you can’t go back any further. Home Opens the central Home screen. -
Page 36: Ethernet
User Manual Chapter 3 Operating the Device 3.4 Ethernet Step 1 Connect Ethernet Cable to the HMI device. Step 2 APPS > Ethernet Step 3 Ethernet APP main menu appears Setting Description Check Ethernet Check Ethernet connection parameters: IP mode, IP address, DNS address and others Configure Ethernet Enable Ethernet connection and configure its such as... -
Page 37: Configuring Ethernet
User Manual Chapter 3 Operating the Device 3.4.1 Configuring Ethernet Go to Apps > Ethernet > Configure Ethernet *Ethernet OFF is set by default. Swipe Ethernet ON to activate Ethernet connection. Connection Type Setting Description DHCP (default) The device automatically capture IP-address from the router Static IP Allows to manually set up IP-address, DNS, Network and Gateway 3.4.2 Checking Ethernet Settings... -
Page 38: Winmate® Home Manager (Whm)
Operating the Device 3.5 Winmate® Home Manager (WHM) Winmate® E-Series HMI comes with preinstalled APP called Winmate® Home Manager (WHM) which let the device manager to lock the launcher then the user can only use one application assigned by the device manager. - Page 39 User Manual Chapter 3 Operating the Device Home Manager Allows setting which app you want to run up automatically after booting. Password Manager Allows settings WHM password (Default is “0000”). Step 2 Go to “Application Selector”, and choose the app which you want to run up automatically after booting.
-
Page 40: How To Reset Whm
User Manual Chapter 3 Operating the Device Step 4 Select “Restrict Home” and “Always”, and then restart the computer to enable these settings. The system will automatically start the application which you selected and lock it. Whatever you press home key or back key, the system will go back to the same application which you have selected. - Page 41 User Manual Chapter 3 Operating the Device Step 2 System will request the password to login. Default password is “0000”. Step 3 Restart the system and you will go back to the normal Launcher. Step 4 In the Home manager->Home Selector Tab-> click the “Clear and Rest Default Home”.
-
Page 42: Software Installation
Software Installation This chapter contains software installation and update guides. E-Series HMI... -
Page 44: Software Installation
E-Series HMI Chapter 4 Software Installation 4 Software Installation This chapter contains software installation and updates guide. All the programming guides can be found in the driver CD included in the package. 4.1 Android Debug Bridge (ADB) Driver Installation IMPORTANT: ... -
Page 45: Disabling Driver Signature On Windows 8
E-Series HMI Chapter 4 Software Installation 4.1.1 Disabling Driver Signature on Windows 8 Step 1 Hold down the Windows key on your keyboard and press the letter C to open the Charm menu, and then click the gear icon (Settings). Step 2 Click Change PC Settings. - Page 46 E-Series HMI Chapter 4 Software Installation Step 3 Click General. Step 4 Under Advanced Startup, click Restart Now. NOTE: In Windows 8.1, the ‘Restart Now’ button has moved to ‘PC Setting -> Update & Recovery -> Recovery.’ Step 5 After restarting, click Troubleshoot. E-Series HMI...
- Page 47 E-Series HMI Chapter 4 Software Installation Step 6 Click Advanced Options. Step 7 Click Windows Startup Settings. E-Series HMI...
- Page 48 E-Series HMI Chapter 4 Software Installation Step 8 Click Restart. Step 9 After restarting your computer a second time, choose Disable driver signature enforcement from the list by typing the number 7 on your keyboard. Your computer will restart automatically. Step 10 After restarting, you will be able to install the ADB drivers normally;...
-
Page 49: Adb Driver Installation
E-Series HMI Chapter 4 Software Installation NOTE: The next time you restart your computer, driver signature enforcement will be in effect again. You will have to repeat this process for any new boards. If you have multiple boards to use with the same computer, we recommend installing the drivers for each one before you shut down or restart your computer. - Page 50 E-Series HMI Chapter 4 Software Installation Step 2 In the Update Driver Software window choose Browse my computer for driver software. Step 3 Select Let me pick from a list of device drivers on my computer. Click Next. Step 4 Select from your computer Step 5 In the Update driver software window, click show All Devices and then click Next.
- Page 51 E-Series HMI Chapter 4 Software Installation Step 6 The system is looking for the driver folder. Click Browse. Step 7 Select the driver for your OS system. Click Open. E-Series HMI...
- Page 52 E-Series HMI Chapter 4 Software Installation Step 8 Windows Security window will pop up. This message is used to confirm whether the user wants to install the driver. Select Install this driver software anyway to continue. Step 9 When the installation is successfully completed you will see Android ADB Interface driver in the Update Driver Software window.
-
Page 53: Installing Android Debug Bridge (Adb)
E-Series HMI Chapter 4 Software Installation 4.2 Installing Android Debug Bridge (ADB) For detailed Android Debug Bridge (ADB) information refer to Android Developers Platform: http://developer.android.com/tools/help/adb.html Step 1 Decompress adb.zip. Open ADB terminal and move into the adb archive. ADB Terminal window Step 2 Connect FA34 motherboard to the computer via USB. -
Page 54: Downloading Image Tool
E-Series HMI Chapter 4 Software Installation 4.3 Downloading Image Tool Download OS Image Tool update guide: 1. Winmate Download Center http://www.winmate.com.tw/ > Support > Download Center > Multi-touch PPC > E- Series HMI > OS Image 2. Winmate File Share http://www.winmate.com.tw/... - Page 55 E-Series HMI Chapter 4 Software Installation Step 3 The system is checking OTA File. It may take some time. Step 4 Tap Update Image E-Series HMI...
- Page 56 E-Series HMI Chapter 4 Software Installation Step 5 Make sure the file founded by the system is image update file. Tap OK. Step 6 Tap OK. Make sure the battery level is at least 50%. E-Series HMI...
- Page 57 E-Series HMI Chapter 4 Software Installation Step 7 Tap OK. IMPORTANT: Do not disconnect the power source! Do not remove the battery! Step 8 After update the system will automatically restart. E-Series HMI...
-
Page 58: Os Image Update Guide
E-Series HMI Chapter 4 Software Installation 4.5 OS Image Update Guide Download OS Image update guide from Winmate Download Center or Winmate File Share. Winmate Download Center: http://www.winmate.com/DownCenter/DownLoadCenter.asp?DownType=3018 Winmate File Share: https://winmate.box.com/v/FA34-OS-Image-Update-Guide E-Series HMI... - Page 59 Mounting Solutions This chapter provides step-by-step mounting guide for all available mounting options. E-Series HMI...
-
Page 60: Mounting Solutions
User Manual Chapter 5 Mounting Solutions 5 Mounting Solutions This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. 5.1 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the HMI device. -
Page 61: Mounting Guide
User Manual Chapter 5 Mounting Solutions 5.3 Mounting Guide E-series HMI devices come with different mounting options suitable for most of the industrial and commercial applications. The main mounting approach is rear mount - very user-friendly in terms of installation. Refer to sub-sections below for more details. CAUTION/ ATTENTION Follow mounting instructions and use recommended mounting hardware to avoid the risk of injury. -
Page 62: Panel Mount
User Manual Chapter 5 Mounting Solutions NOTE: Notice that both hooks on bracket should lock the notches on the back cover of the device. 5.3.2 Panel Mount Panel Mount mounting solutions is suitable for many applications where HMI should be embedded in the machine. -
Page 63: Technical Support
Technical Support This chapter includes the directory for technical support. E-Series HMI... -
Page 64: Technical Support
Item Driver Description Android Driver USB Driver Android Driver USB OTG Driver Winmate provides the following SDK for E-Series HMI with Freescale® Cortex® A9 i.MX6 Dual Core 1GHz processor: Item File Type Description Android SDK Linux SDK Winmate provides OS Image Downloading Guide for E-Series HMI:... - Page 65 User Manual Chapter 6 Technical Support 6.2 Problem Report Form E-Series HMI (Elegant Design) Customer name: Company: Tel.: Fax: E-mail: Date: Product Serial Number: ____________________________________________________ Problem Description: Please describe the problem as clearly as possible. Detailed description of the occurred problem will allow us to find the best solution to solve the problem as soon as possible.
- Page 66 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, Taipei 241, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
