- Page 1 PoE Touch Monitor 10.1~15” User Manual Version 1.0 Document Part Number: 915211101036 Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
Contents Preface ........................... 3 About This User Manual ..................... 7 Chapter 1: Introduction ....................8 1.1 About PoE Touch Monitor ..................9 1.2 Product Features ....................9 1.3 Package Overview ....................9 1.4 Product Overview ....................10 1.5 External Connectors ................... 12 1.6 Physical Buttons and LED Indicators .............. -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 10.1~15" PoE Touch Monitor User Manual Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.
- Page 5 Preface Caution/ Attention Always ground yourself to remove any static charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis.
- Page 6 10.1~15" PoE Touch Monitor User Manual Safety Precautions For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference. Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning.
-
Page 7: About This User Manual
This User Manual provides information about using the Winmate® • PoE Touch Monitor. The documentation set provides information for specific user needs, and includes: PoE Touch Monitor User Manual – contains detailed description on how to use the display, its components and features. -
Page 8: Chapter 1: Introduction
10.1~15" PoE Touch Monitor User Manual Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the display device in the packing list. Mechanical dimensions and drawings included in this chapter. -
Page 9: About Poe Touch Monitor

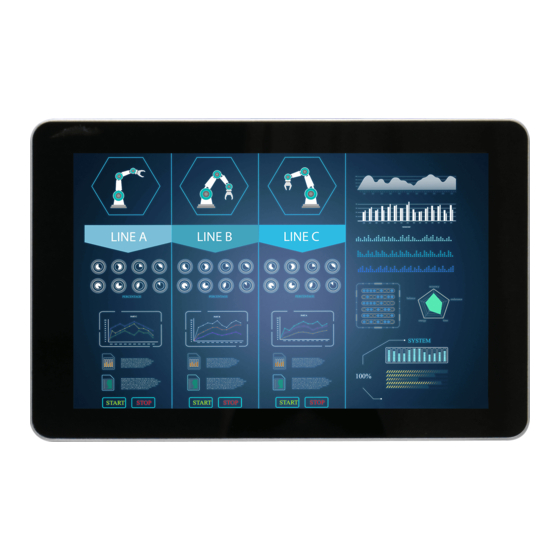

® Congratulations on purchasing Winmate PoE Touch Monitor. A new generation of P-Cap monitors with PoE (Power over Ethernet) function where electric power is transferred to the device through a single network cable, allowing for ease of installation without needing to re-wire electrical power. -
Page 10: Product Overview
10.1~15" PoE Touch Monitor User Manual 1.4 Product Overview This section describes physical appearance of the PoE Touch Monitor. All dimensions shown in mm. W10L100-PCH1-PoE W10L100-PCH2-PoE... - Page 11 Chapter 1: Introduction R10L100-PCT2-PoE R12L100-PCM2-PoE...
-
Page 12: External Connectors
10.1~15" PoE Touch Monitor User Manual R15L600-PCC3-PoE 1.5 External Connectors Terminal interfaces are located on the bottom side of the display. Item Description PoE - For power transmission in network equipment, via network UTP cable, together with data. USB for Touch - Connects USB for touch capabilities. -
Page 13: Physical Buttons And Led Indicators
Chapter 1: Introduction 1.6 Physical Buttons and LED Indicators Physical buttons and LED indicators (OSD Control Panel) located on the rear side of the Display. OSD Panel Physical Buttons DOWN-Press to lower down the volume. UP- Press to increase the volume. ESC/ AUTO- Press to exit the menu. -
Page 14: Chapter 2: Installation
10.1~15" PoE Touch Monitor User Manual Chapter 2: Installation This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages... -
Page 15: Wiring Requirements
Chapter 2: Installation 2.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device: Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. -
Page 16: Panel Mount
10.1~15" PoE Touch Monitor User Manual 2.2.1 Panel Mount The PoE Touch Monitor supports panel mount installation. The panel mount solution is suitable for many applications where display should be embedded. With this mounting solution flat surface leave no bezel in the front. -
Page 17: Vesa Mount
1. Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. 2. Follow instructions that come with VESA mount kit (Not supplied by Winmate). *The picture is for demonstration purposes only. VESA Mount accessories are not supplied by Winmate. -
Page 18: Cable Mounting Considerations
2. Connect the external computer to the LAN port of the PoE adapter. 3. Connect the LAN port PoE Touch Monitor to the PoE port of the PoE adapter. 4. Connect PoE Touch Monitor to external PC using VGA or/and HDMI cable. -
Page 19: Connector Description
Power Device (PD): follows IEEE 802.3at (25 Watt) 2.5.2 VGA Connector PoE Touch Monitor uses standard 15pin D-sub connector. Plug 15-pin VGA signal cable to the VGA connector in the rear of motherboard, and plug the other end to the monitor. Secure cable connectors with hexagonal copper pillars M3x4mm. -
Page 20: Hdmi Connector
10.1~15" PoE Touch Monitor User Manual 2.5.3 HDMI Connector Plug HDMI signal cable to the HDMI connector on the rear side of PC system, and plug the other end to the PoE Touch Monitor. Pin Assignment and signal names for HDMI connector Pin №... -
Page 21: Chapter 3: Operating The Device
Chapter 3: Operating the Device Chapter 3: Operating the Device In this chapter you will find instructions on how to operate the display. -
Page 22: Turning On/ Off The System
1. Plug the PoE adapter into the power socket. 2. Connect the external computer to the LAN port of the PoE adapter. 3. Connect the LAN port PoE Touch Monitor to the PoE port of the PoE adapter. 4. Turn on the external computer. -
Page 23: On-Screen Display Menu Navigation
Chapter 3: Operating the Device 3.3 On-Screen Display Menu Navigation OSD Icon Sub-menu Settings Note BRIGHTNESS slider bar Default 50 Use to adjust the screen’s brightness. Range 0 to 100. CONTRAST slider bar Default 50.. BRICONTRAST Use to adjust the screen’s contrast. Range 0 to 100. H POSITION slider bar Default 50. - Page 24 10.1~15" PoE Touch Monitor User Manual OSD Icon Sub-menu Settings Note Volume slider bar Default 10 Use to set value of Volume. Range 0~31. Speaker ON/OFF OPTION Use to set value of Volume Speaker AUTO SCAN Select and execute Default mode...
-
Page 25: Appendix
Appendix Appendix This chapter contains additional product information, including troubleshooting guide and frequency table... -
Page 26: Appendix A: Hardware Specifications
10.1~15" PoE Touch Monitor User Manual Appendix A: Hardware Specifications Model Name W10L100- W10L100- R10L100- R12L100- R15L600- PCH1-PoE PCH2-PoE PCT2-PoE PCM2-PoE PCC3-PoE Display 10.1” 10.1” 10.4” 12.1” 15” Size/Type Resolution 1024x600 1280x800 1024x768 1024x768 1024x768 Brightness 420 nits 350 nits... -
Page 27: Appendix B: Frequency Table
For more information about available input signals and OSD navigation, please refer to R6H AD Board Manual included in the package. You can also download manuals and touch drivers from Winmate Download Center. Appendix D: Cleaning the Monitor Before cleaning: ... - Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
