Summary of Contents for Fronius IG Plus USA

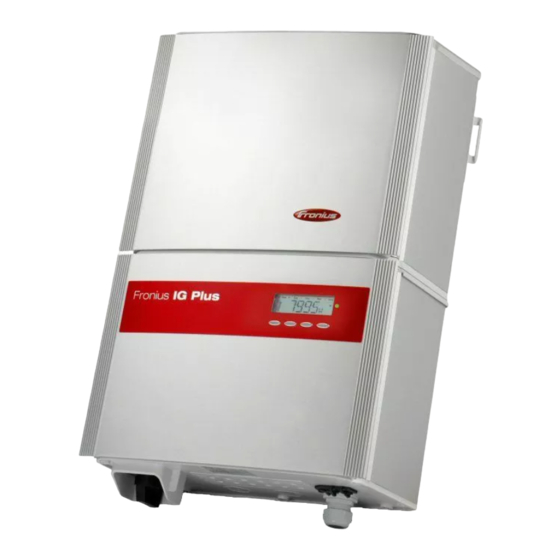

- Page 1 Field Adjustable Trip Points Operating Instructions Grid connected inverters for Fronius IG Plus USA photovoltaic systems Fronius IG Plus V USA Fronius CL USA 42,0410,1517 012011...
- Page 3 Warning describes a hazard to equipment or personnel. It calls attention to a procedure or practice, which, if not correctly performed or adhered to, could result in damage to or destruction of part or all of the Fronius equip- ment and/or other equipment connected to the Fronius equipment or...
- Page 5 Safety Instructions DANGER! “DANGER!“ indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING! “WARNING!“ indicates a potentially hazardous situation which, if not avoided, will result in death or serious injury. CAUTION! “CAUTION!“ indicates a potentially harmful situation which, if not avoided, may result in minor and moderate injury or property damage.
- Page 6 General For information about where the safety instructions and warning signs are (continued) located on the equipment, please refer to the “General“ section of your equipment’s operating instructions. Any equipment malfunctions which might impair safety must be remedied immediately before the device is turned on. Your safety is at stake.
- Page 7 Safety Precauti- When installing devices with air vents, make sure that cool air can flow freely through the ons at Equipment vents unobstructed. The device should only be operated in accordance with the protec- Location tion class listed on the rating plate. Information on The inverter generates a maximum sound power level of <80dB(A) (ref.
- Page 8 Electrical Installa- Electrical installations may only be carried out in accordance with relevant tions national and local standards and regulations. ESD Precautions Danger of damage to electronic components due to electrostatic discharge. Take appropriate ESD precautions when replacing and installing compon- ents.
-
Page 9: Table Of Contents
Frequency Limit Values....................6 Start Time........................7 Voltage Limit Values for Neutral Conductor Monitoring ..........7 Fronius IG Plus - Field Adjustable Trip Points in the public grid ......... 8 General .......................... 8 208 V Delta ........................8 208 V Delta: 120 V WYE ....................8 240 V Delta ........................ -
Page 10: Keys And Symbols On The Inverter
Keys and Symbols on the Inverter Keys and Symbols Keys and Symbols on the inverters Fronius IG Plus and Fronius CL Item Function Display for displaying values, settings and menus Operating Status LED for displaying the operating status ‘Enter’ key for confirming a choice ‘Menu / Esc’... -
Page 11: Display
Display (13) (12) (11) (10) Display Item Function Icons for the ‘Now’ display mode Icons for the ‘Day’ display mode Icons for the ‘Year’ display mode Icons for the ‘Total’ display mode Icons for the ‘Setup’ display mode Icons for operating conditions ... - Page 12 Display Item Function (continued) (12) Area for data for displaying the data value measured (13) output bar (not active during setup adjustments) indicates the power output fed into the grid at a given moment - independent from the display mode chosen. The screen displays % of the maximum possible output power of your solar inverter...
-
Page 13: Parameters In The Setup Menu For Field Adjustable Trip Points
Parameters in the Setup Menu for Field Adjus- table Trip Points Voltage Limit Maximum inner limit voltage Values Upper limit voltage between the AC terminals of the inverter Unit Setting range 106 - 248 at 208 V grid voltage 122 - 287 at 240 V grid voltage 141 - 324 at 277 V grid voltage Factory setting 229 at 208 V grid voltage... -
Page 14: Frequency Limit Values
Voltage Limit Unit P (grid cycles) Values Setting range 1 - 255 at 208 V / 240 V / 277 V grid voltage (continued) Factory setting 118 at 208 V / 240 V / 277 V grid voltage Frequency Maximum inner limit frequency Limit Values Upper limit frequency Unit... -
Page 15: Start Time
Frequency Unit P (grid cycles) Limit Values Setting range 1 - 17998 at 208 V / 240 V / 277 V grid voltage (continued) Factory setting 9 at 208 V / 240 V / 277 V grid voltage Start Time Start initiation time Grid monitoring time during the startup phase During this time, the inverter checks the... -
Page 16: Fronius Ig Plus - Field Adjustable Trip Points In The Public Grid
Fronius IG Plus 3.0-1 / 3.8-1 / 5.0-1 / 6.0-1 / 7.5-1 / 10.0-1 / 11.4-1 Fronius IG Plus V 3.0-1 / 3.8-1 / 5.0-1 / 6.0-1 / 7.5-1 / 10.0-1 / 11.4-1 208 V Delta... -
Page 17: 240 V: 120 V Stinger
240 V: Adjustable parameters: 120 V Stinger TRIP TRIP FREQ 120 V 120 V FREQ / FREQ TRIP START / START INIT TIME 120 ° NMON NMON NMON 240 V: Adjustable parameters: 180 ° 120 V Split Phase TRIP 120 V 120 V TRIP FREQ... -
Page 18: Fronius Cl - Field Adjustable Trip Points In The Public Grid
Fronius 3-Phase Inverters - Field Adjustable Trip Points in the public grid General Different parameters can be set for the following Fronius 3-phase inver- ters depending on the available power grid: Fronius IG Plus 11.4-3 / 12.0-3 Fronius IG Plus V 10.0-3 / 11.4-3 / 12.0-3 Fronius CL 33.3... -
Page 19: 240 V Delta
240 V Delta Fronius IG Plus 11.4-3 Fronius IG Plus V 10.0-3 Fronius IG Plus V 11.4-3 Fronius CL 33.3 DELTA Fronius CL 44.4 DELTA Fronius CL 55.5 DELTA 240 V Adjustable parameters: 120 ° TRIP TRIP FREQ FREQ / FREQ... -
Page 20: Enter The Setup Menu For Field Adjustable Trip Points
Enter the Setup Menu for Field Adjustable Trip Points Requirements A 5-character access code is required to access Field Adjustable Trip Points in the Setup menu. This access code will be provided by Fronius upon request. Enter the 1. Press the ‘Menu’ key... -
Page 21: Enter The Access Code
Enter the ‘CODE’ is displayed, the first access code digit flashes. 1. Use the ‘Up’ and ‘Down’ keys to select a value for the first digit of the access code 2. Press the ‘Enter’ key The second digit flashes. 3. Use the ‘Up’ and ‘Down’ keys to select a value for the second digit of the access code 4. - Page 22 Enter the The first parameter ‘U ’ in access code the setup menu for field adjus- (continued) table trip points is displayed. The setup menu for field adjus- table trip points is now activated on the inverter.
-
Page 23: Setting And Displaying Field Adjustable Trip Points
Setting and Displaying Field Adjustable Trip Points Setting and 1. Enter the setup menu for field adjustable trip points Displaying 2. Enter the access code Field Adjus- 3. Select the desired parameter using the ‘Up’ and ‘Down’ keys table Trip Points - Gene- 4. - Page 24 Setting Ex- e.g.: ‘FREQ ’ TRIP ample (continued) The display switches between ‘FREQ ’ and ..‘FREQ ’. TRIP 4. Press the ‘Enter’ key The value of ‘FREQ ’ is TRIP displayed, the first digit flashes. 5. Use the ‘Up’ and ‘Down’ keys to select a value for the first digit 6.
- Page 25 Setting Ex- The fifth digit flashes. ample (continued) 13. Use the ‘Up’ and ‘Down’ keys to select a value for the fifth digit 14. Press the ‘Enter’ key The value of ‘FREQ ’ TRIP flashes. 15. Press the ‘Enter’ key The new value of ‘FREQ ’...
-
Page 26: Technical Data
Technical Data Fronius IG Field adjustable trip points 208 V 240 V 277 V Plus Nominal AC output voltage, Line-to-Line, [V] Operating AC voltage range 183-229 211-264 default, Line-to-Line, [V] Adjustment range for 105-248 121-287 voltage, Line-to-Line, [V] Voltage trip limit accuracy,... - Page 27 Fronius IG Field adjustable trip points 208 V 240 V 277 V Plus V Nominal AC output voltage, Line-to-Line, [V] Operating AC voltage range 183-229 211-264 default, Line-to-Line, [V] Adjustment range for 105-248 121-287 voltage, Line-to-Line, [V] Voltage trip limit accuracy,...
- Page 28 Fronius CL Field adjustable trip points 208 V 240 V 277 V Nominal AC output voltage, Line-to-Line, [V] Operating AC voltage range 183-229 211-264 default, Line-to-Line, [V] Adjustment range for 105-248 121-287 voltage, Line-to-Line, [V] Voltage trip limit accuracy, Line-to-Line [% of nominal value]...
- Page 29 Fronius USA LLC Solar Electronics Division 4600 Wels, Froniusplatz 1, Austria 10421 Citation Drive, Suite 1100, Brighton, MI 48116 E-Mail: pv@fronius.com E-Mail: pv-us@fronius.com http://www.fronius.com http://www.fronius-usa.com Under http://www.fronius.com/addresses you will find all addresses of our sales branches and partner firms! ud_fr_se_so_00913 012011...
