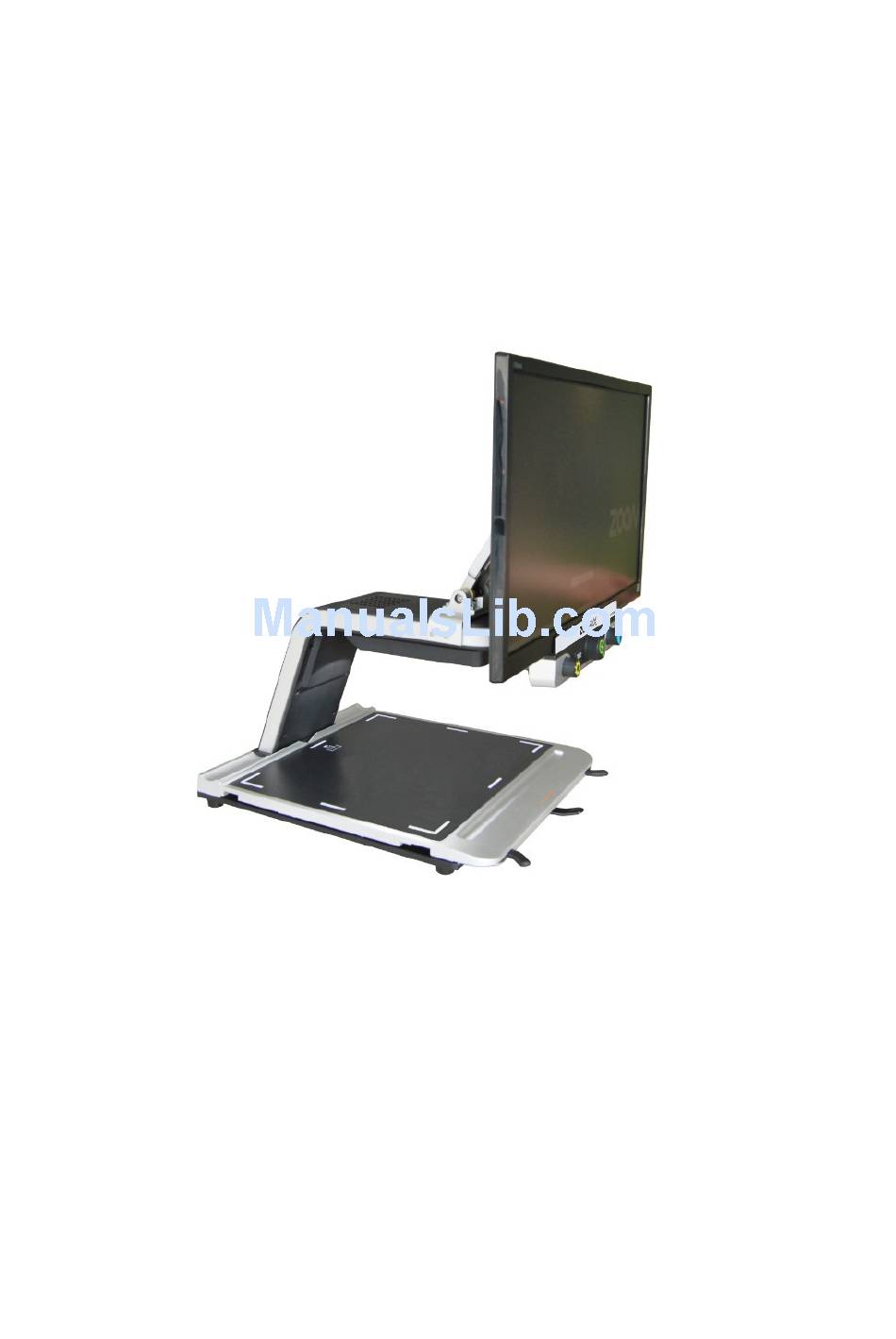

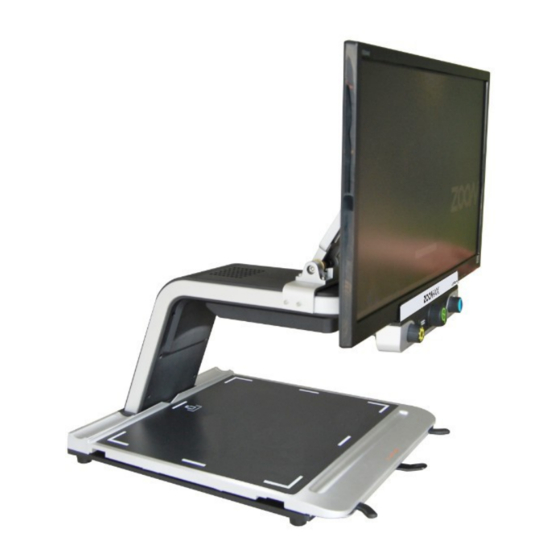

- Page 1 ® ZOOMAX AURORA HD Desktop Video Magnifier User’s Guide Version 3.0 ZOOMAX Technology Co.,Limited...
- Page 2 ZOOMAX. To contact by e-mail, send questions to sales@zoomax.co. To search the knowledge base, visit www.zoomax.co choose the relative links.
-
Page 3: Table Of Contents
Freeze Function/ Reset Factory Default Setting ..14 Turn off the LED Light ..........15 Advanced Color Mode ..........15 Demo Mode ..............16 7. Specifications .............. 16 8. Important Safety Instructions ........17 9.Other products from ZOOMAX ........19 ® ZOOMAX Aurora HD– User’s Guide... -
Page 4: Structure Components
4.Control Panel 5. LED Light 6. Brake 7.Tactile Handle 8.XY Table 9. Ports from Left to Right: ①KB: for Control Panel when connected to External Monitor ②HDMI: for Video Input when connected to External Monitor ® ZOOMAX Aurora HD– User’s Guide... -
Page 5: Package
③USB: for FW Update ④DC IN: for Power Input 2. Package Figure 2 In full package, the monitor screen is folded backwards on the Support Stand. ® ZOOMAX Aurora HD– User’s Guide... -
Page 6: Setup
After moving the unit out of the packing carton, hold on both sides of the monitor to pull up the monitor. Plug-and-play. Plug in the power and the monitor will be on automatically. ® ZOOMAX Aurora HD– User’s Guide... - Page 7 Notes: Monitor Height : Adjustable. Display Orientation: Rotate to left and right (Max: 45° ). ® ZOOMAX Aurora HD– User’s Guide...
-
Page 8: Xy Table
Turn the Brake to the left side to unlock the XY Table. Then, you can shift the XY Table as you need. Please use the tactile handle to save your energy and help you comfortably move XY Table. ® ZOOMAX Aurora HD– User’s Guide... -
Page 9: Basic Operation
In factory default, you are in Basic Operation. Power on/off Follow the arrow direction to short press the Power On/Off Button to turn on Aurora HD. Keep pressing the Power On/Off Button for 3 seconds to turn off Aurora HD. -
Page 10: Magnification/ Auto Zoom (Az)
Magnification Dial Button until you hear “beep” to save this preferred magnification. Whatever magnification view you are in, if you short press the Magnification Dial Button, it will return to your preferred magnification immediately. ® ZOOMAX Aurora HD– User’s Guide... -
Page 11: Color Mode
Short press the Color Mode Dial Button to switch between full color and your favorite high contrast color. Brightness Adjustment Turn the Brightness Dial Button to adjust brightness you prefer. The default value is 50. ® ZOOMAX Aurora HD– User’s Guide... -
Page 12: Find Function
The Square Frame disappears .You can view the part of the reading material you need easily now. Demo In Full Color mode, long press Electronic Curtain Button to start Demo function. 6. Advanced Operation Keep pressing the Electronic Curtain Button and ® ZOOMAX Aurora HD– User’s Guide... -
Page 13: Electronic Curtain
Turn the Brightness Dial to shift the Electronic Curtain to the position you need. Keep pressing the Electronic Curtain Button until you hear“beep”. You see two lines on the screen. Turn the ® ZOOMAX Aurora HD– User’s Guide... -
Page 14: Focus Lock
During normal operation, it is recommended that you leave Focus Lock off. Please turn it on when writing or handwork. ® ZOOMAX Aurora HD– User’s Guide... -
Page 15: Freeze Function/ Reset Factory Default Setting
Keep pressing the Focus Lock Button; you will hear two times of “beep”. Then, you see the Firmware Version Number indicated on the bottom of the screen. Please release your pressing. Now, Aurora HD turns to the factory default setting. ® ZOOMAX... -
Page 16: Turn Off The Led Light
Color Mode Dial for 17 color mode options (Full Color, Black on White, Blue on White, Blue on Yellow, Black on Yellow, Black on Purple, Black on Light Blue, Black on Orange, Black on Green, White on Black, White on Blue, ® ZOOMAX Aurora HD– User’s Guide... -
Page 17: Demo Mode
Demo Mode In full color mode, keep pressing the Electronic Curtain Button until you hear “beep” to enter into Demo Mode. Then， Aurora HD demonstrates each function about itself automatically. Short press the Power on/off Button to exit from Demo ... -
Page 18: Important Safety Instructions
Humidity: <90%. 8. Important Safety Instructions Read and follow all warning notices and instructions marked on the product or included in the manual. Slots and openings in the product are provided for ® ZOOMAX Aurora HD– User’s Guide... - Page 19 Keep it away from wet areas, rain, and other sources of liquids. Do not submerge the product. Do not stare directly at the light emitted by the reading lamp as the bright light may be harmful to the eyes. ® ZOOMAX Aurora HD– User’s Guide...
-
Page 20: Other Products From Zoomax
9. Other Products from ZOOMAX Item Name Product Photo Product Description Snow is given the most advanced image Snow 4.3” technology and best camera. It offers sharp image even at the lowest magnification and under the fast movement. No learning but easy to use skillfully at the very beginning with the large button.
