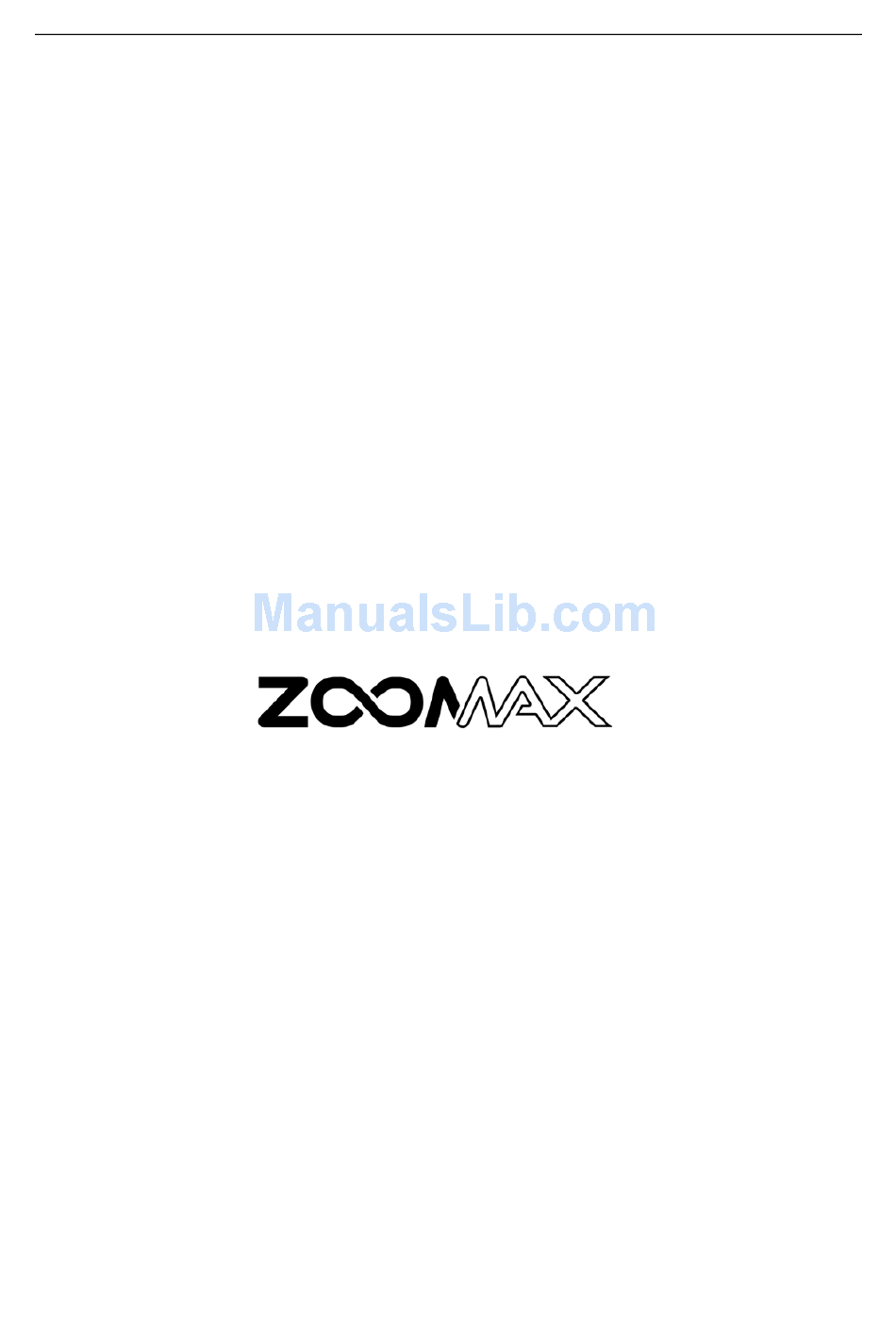

- Page 1 Zoomax Capture User Manual Zoomax Capture Video Magnifier User Manual V1.1...
-
Page 2: Table Of Contents
Zoomax Capture User Manual Contents Description................3 Accessories................3 Compositions................4 Operation................... 5 Battery installation..........................5 Charging the battery..........................6 Install short strap..........................6 Turn on/off............................. 7 Video magnifier mode............7 Adjust Magnification..........................7 Change display mode.......................... 8 Freeze..............................9 Writing stand............................10 Turn on/off button beeps........................ -
Page 3: Description

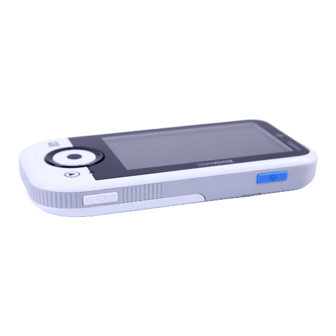

Capture is a lightweight handheld electronic magnifier with a large 4.3” widescreen LCD display. It provides magnification from 2X up to16X, 10 contrast modes, as well as the ability to capture and store image. Besides, it features modern design with power saving function. -
Page 4: Compositions
Zoomax Capture User Manual Compositions: 4.3” widescreen LCD screen Indicator light Replay button Arrow button The Wheel Mode/ Confirmation Delete button Camera Writing stand Battery slot Power button Freeze butto... -
Page 5: Operation
Zoomax Capture User Manual USB port AV-OUT port Cord slot Operation Battery installation Install the battery as follows: 1. Turn the unit so that the back is facing up 2. Press and slide open the battery cover 3. Insert the battery... -
Page 6: Charging The Battery
User Manual Charging the battery The battery should be charged prior to using the Capture for the first time. - Connect the power adapter to the unit USB port, and then insert the other end of the power adapter into power outlet. The power indicator will be red during charging. -
Page 7: Turn On/Off
Zoomax Capture User Manual Turn on/off Power button Press and hold the power button for 2 seconds to turn on (as shown in diagram), and the green power indicator will be on and the unit will enter into video magnifier mode directly. -
Page 8: Change Display Mode
Zoomax Capture User Manual you connect the unit to a TV screen. Change display mode Press mode button There are 2 modes for selection: 1. Normal mode Press the Mode button to cycle through the following modes: - Full color mode... -
Page 9: Freeze
Favorite mode automatically at next power on. Freeze Freeze button Use Freeze button to capture images and letters - Put the unit over the object or material - Press Freeze button - Take the unit closer to have a carefully look at the object - Press Freeze button again to release. -
Page 10: Writing Stand
Zoomax Capture User Manual Writing stand Open the writing stand. -Write underneath the right side of the camera. Turn on/off button beeps Long pressing delete button In default, the button sound is mute. To turn it on, press and hold “delete” button for 3 seconds until BEEP goes twice. -
Page 11: Adjust Brightness
Zoomax Capture User Manual To turn light off, press and hold “mode” button for 5 seconds until BEEP goes TWICE (keep holding if you just heard one beep). To turn light ON, press and hold “mode” button for 5 seconds until BEEP goes TWICE (keep holding if you just heard one beep). -
Page 12: Connecting To A Tv
Zoomax Capture User Manual Connecting to a TV Plug the AV cable packaged with the unit to your TV video input. After connection completed, the LCD screen will turn off automatically. -To select the appropriate TV standard, press and hold the Freeze button for 3 seconds. -
Page 13: Replay Mode
Zoomax Capture User Manual Replay mode Press Replay button to enter into replay mode. Three pictures will appear on the screen, press Replay button again to return to video magnifier mode. At most 100 pictures can be saved. The system will delete automatically the oldest unlocked picture when saved pictures number is over 100. -
Page 14: Delete
Zoomax Capture User Manual Locked pictures will be moved to the front position of all pictures automatically. So the picture sequence will change if you perform this operation. For example, To lock one picture, it will move to the front position or behind the last locked picture. - Page 15 Zoomax Capture User Manual NOTE: You can’t switch/browse pictures unless zooming in/out icon disappears. 5. Lock/Unlock Press Freeze button to lock the pictures and unlock the locked ones. 6. Delete “Press Again To Delete” will appear after pressing “delete” button, and press Delete button again to delete or press other buttons to neglect this operation.
-
Page 16: Troubleshooting
Zoomax Capture User Manual Troubleshooting Problems Solutions Ensure that the power is on. ● Change the battery. Black screen ● Reduce the magnification level. ● Ensure the image is below the crosshair. The unit will not turn on. ●Change the battery. -
Page 17: Safety
Zoomax Capture User Manual Safety To keep your video magnifier in a good condition, please read the following safety instructions carefully: - Do not expose your video magnifier to excessive heat or direct sunlight to avoid the risk of fire. -
Page 18: Specifications
Zoomax Capture User Manual Specifications 1. Magnification: 2x to 16x (optical and digital) 2. Picture storage: up to 100 pictures. 3. Display modes: ten modes (full color, gray, high contrast white on black, high contrast black on white, high contrast white on blue, high contrast...
