AGFEO AS 40 Installation Manual

Isdn pabx system profi-line
Hide thumbs Also See for AS 40:

Advertisement

Quick Links

Download this manual See also: User Manual, Manual
ISDN PABX System
Installation manual
Profi-Line: AS 40, AS 40 P

Advertisement

loading

Related Manuals for AGFEO AS 40

Summary of Contents for AGFEO AS 40

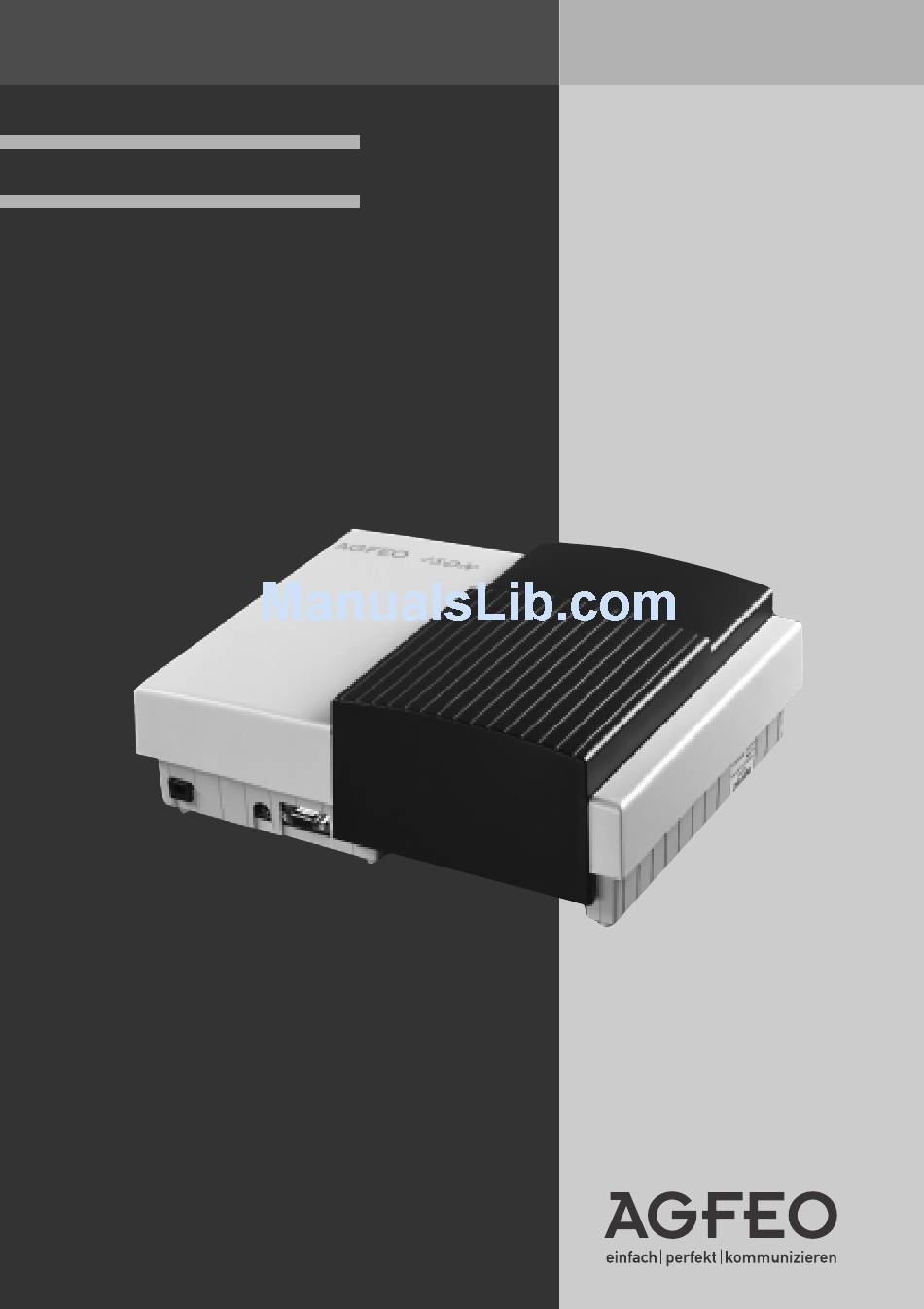

  • Page 1 ISDN PABX System Installation manual Profi-Line: AS 40, AS 40 P...

  • Page 2: Safety Notes

    S0 bus that you are also al- The telephone system has a general con- lowed to operate directly on the ISDN nection permit (Germany: AAE). network. Two digital AGFEO system tel- Safety notes ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ - The telephone system the telephone system's elec-...

  • Page 3: Installation

    Installation Checking the contents of delivery ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ - 1 Telephone system - 1 Drilling template - 1 Set of securing material (3 dowels S6, - 1 Instruction manual 3 wood screws (cross head recess) 4 x - 1 Installation manual - 2 Short-form operating instructions for - 1 Bolt (module extractor) system telephones...
  • Page 4 Opening the housing ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Before opening the housing, remove the 230 V mains plug from the telephone system. Removing the cover to unlatch it. Detach the cover towards - Grip the underside behind the finned you. cover that covers the telephone The cover is not locked in the as-delivered system’s connection panel.
  • Page 5 Safety notes ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Pay attention to the safety notes nator (NT) or the S0 bus. - before installing or removing a mod- 3. Touch the metal shield of the PC/ ule, printer socket on the bottom of the - before connecting or disconnecting a telephone system briefly with your connecting lead finger.
  • Page 6 The connection module The connection module belongs to the switch S1301 basic telephone system. ab/cd Fixed slot X=0 (outside right). The con- nection module must not be plugged on to any other slot as otherwise the connector will be damaged. Interfaces 1 External S0 interface S0 0/1 (ISDN basic access as a point-to-multipoint or point-...
  • Page 7 Connect analogue extensions ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ You may connect any analogue apparatus System telephones to the system which has been approved for Connect system telephones by four wires connection to the public switched to the Vario ports by connecting them to telephone network. the La and Lb wires (speech wires) and the Da and Db wires (data wires;...
  • Page 8 PTMP connection on the internal SO - Connector: a1 -green Bus of the System. b1 -brown ISDN Apparatus: a2 -yellow Digital AGFEO System Phones (max 2 b2 -white digital phones per SO Bus) -ISDN -Telephones -ISDN -PC-Cards - To disconnect a wire, press the release -ISDN –Fax machines...
  • Page 9 Connect the cable to the switchable S0 tool (screwdriver with a narrow blade) to press down the terminal spring and pull connection of the module out the wire. - Mark the cable with the included marking system - Switching over to internal S0 connection - Strip 11 mm off the wires On the module, set all switches of the - Push the individual wires into the...
  • Page 10 The T Module 404 (User module) The T Module 404 features 4 interfaces (Vario ports) for system telephones or a/b terminals. Slots: X=1 - 4, freely optional Connecting analog users You may connect all analog terminals to the telephone system that you are also permitted to operate on the public tel- ecommunications network.
  • Page 11 The T Module 407 and 408 (User module) The T Module 407 features 7 interfaces for module 407 the a/b-terminals on the T a/b terminals. This modul supports the module 408 have the CLIP function. CLIP function on a/b-terminal (Geman CLIP) Slots: X=1 - 4, freely optional The T-Modul 408 features 8 interfaces for...
  • Page 12 The S0 Module 420 The S0 module features the following in- terfaces: 1 External S0 interface S0 X/1(ISDN basic access as a point-to-multipoint or point- to-point connection) Schalter S202 Schalter 1 Switchable internal / external S0 S201 interface S0 X/2 (external: ISDN basic access as a point- to-multipoint or point-to-point connec- tion, internal: point-to-multipoint con-...
  • Page 13 External S0 connection, fixed S0 X/1 (Western socket) ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Point-to-point connection Terminators for the external S0 access You may only connect one ISDN telephone S0 0/1 system to an ISDN point-to-point connec- For the point-to-multipoint connection, the tion. You cannot connect any further ISDN two switches S4101/ab for the 100 Ohm terminals.
  • Page 14 PTMP connection on the internal SO - Connector: a1 -green Bus of the System. b1 -brown ISDN Apparatus: a2 -yellow Digital AGFEO System Phones (max 2 b2 -white digital phones per SO Bus) -ISDN -Telephones -ISDN -PC-Cards - To disconnect a wire, press the release -ISDN –Fax machines...
  • Page 15 tool (screwdriver with a narrow blade) to Connect the cable to the switchable S0 press down the terminal spring and pull connection of the module out the wire. - Mark the cable with the included marking system - Switching over to internal S0 connection - Strip 11 mm off the wires On the module, set all switches of the - Push the individual wires into the...
  • Page 16 The S0 Module 440 The S0 module features the following interfaces: ext. int. S0 access int. ext. 4 Switchable internal / external S0 terminators interfaces (external: ISDN basic access as a S0 pin assignments point-to-multipoint or point-to-point left: external S0 connection, right: internal S0 internal: point-to-multipoint...
  • Page 17 The TFE Module 402 (door hands free unit) The TFE module 402 features two interfaces telephone system supports one bell button. conforming to the 4-wire TFE specification Optionally, a loudspeaker system or an FTZ 123 D12 for the connection of door sta- audio module can be connected to the FTZ tions with amplifiers.
  • Page 18 The TFE Module 403 (door hands free unit) The TFE module 403 features an interface It features an interface (TFE 2) conforming (TFE 1) that conforms to the Telekom 2- to the 4-wire TFE specification FTZ 123 D12 wire TFE (CE interface) specification for for connecting door stations with connecting DoorLine T01 to T04 door amplifiers.
  • Page 19 Connecting the door hands free unit (TFE) ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ TFE Module 402 The TFE module 403 also has an interface The TFE module 402 features two (TFE 2) that conforms to the 4-wire TFE interfaces conforming to the 4-wire TFE specification FTZ 123 D12 for the connec- specification FTZ 123 D12 for the tion of door stations with amplifiers.
  • Page 20 Switching relays ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ You can make versatile use of the relays on TFE module 402 or 403 - TFE the TFE module either to connect a door TFE Module 403 hands free unit or as individual switching Instead of the door hands free unit TFE 2 in relays with potential-free contacts for conformity with FTZ 123 D12, you can use other functions.
  • Page 21 Connecting an audio module ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ D12 interface for announcements. A loudspeaker system or an audio module can be optionally connected to the FTZ 123 KT´ NF´ TFE2 TFE1 TS2 TS1 SPK1 SPK2 TFE Module 402 or 403 Audio module AM 20 Figure 13: Connecting an audio module Connecting external music on hold (MoH) ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢...
  • Page 22 Connecting a printer for printing connection charges ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ You can connect any printer to the tel- To print out connection records, the printer ephone system’s RS 232C interface to print must be on all the time and must be con- out connection records.
  • Page 23 Closing the housing ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Replacing the cover Locking the cover - First hook in the cover at the top of the - Insert the bolt with the hook facing housing. The three latches engage be- downwards in the cover opening, turning hind the edge of the housing.
  • Page 24 Commissioning You have installed the telephone system. - Switch on the telephone system by in- Now, only a few operations are necessary serting the mains plug. before you are able to make telephone - Once the telephone system has been calls.

  • Page 25: Technical Data

    Technical data Specification Modular ISDN telecommunications system with 4 module slots Basic capacity 1 external S0 access (point-to-point or point-to-multipoint connection) One internal/external S0 access 2 Vario ports (optionally 2 system telephones or 2 a/b terminals) 1 a/b terminal Expansion modules - T module 404 4 Vario ports (optionally 4 system telephones or 4 a/b terminals)
  • Page 26 Switchable S0 access Internal/external switchable S0 access (DIP switch) Internal: point-to-point, Euro-ISDN (DSS1) External: point-to-point or point-to-multipoint connection, Euro-ISDN (DSS1) - Connection 4-wire by spring terminal connection - Length Max. length of the internal S0 access 130 m - Power 4.5 Watt - ISDN terminals Max.
  • Page 27 This documentation was elaborated with great care and attention and is revised on a You can only use the numerous ISDN features of your AGFEO-ISDN telephone system if your network operator has provided you with these features.
  • Page 28 Ident. No. 1529435 Subject to change without notice. No liability AGFEO GmbH & Co. KG can be accepted for errors contained in this document. Gaswerkstr. 8 Printed in Germany D-33647 Bielefeld 0047 Internet: http://www.agfeo.de...

This manual is also suitable for:

As 40 p
