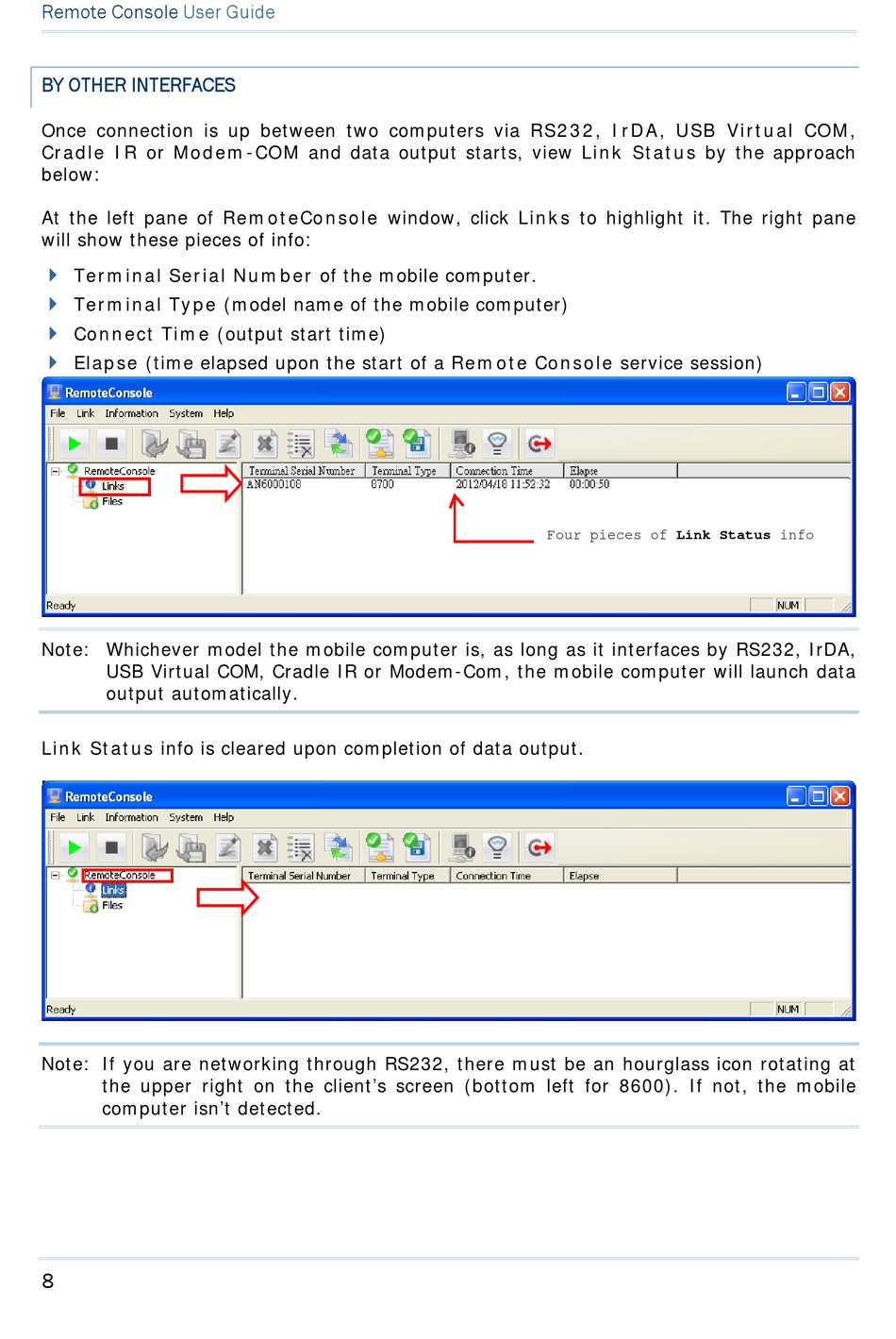

CipherLab 8000 User Manual page 12

Remote Console User Guide
BY OTHER INTERFACES
Once connection is up between two computers via RS232, IrDA, USB Virtual COM,
Cradle IR or Modem-COM and data output starts, view Link Status by the approach
below:
At the left pane of RemoteConsole window, click Links to highlight it. The right pane
will show these pieces of info:
Terminal Serial Number of the mobile computer.

Terminal Type (model name of the mobile computer)

Connect Time (output start time)

Elapse (time elapsed upon the start of a Remote Console service session)

Note: Whichever model the mobile computer is, as long as it interfaces by RS232, IrDA,
USB Virtual COM, Cradle IR or Modem-Com, the mobile computer will launch data
output automatically.
Link Status info is cleared upon completion of data output.
Note: If you are networking through RS232, there must be an hourglass icon rotating at
the upper right on the client's screen (bottom left for 8600). If not, the mobile
computer isn't detected.
8
Four pieces of Link Status info
