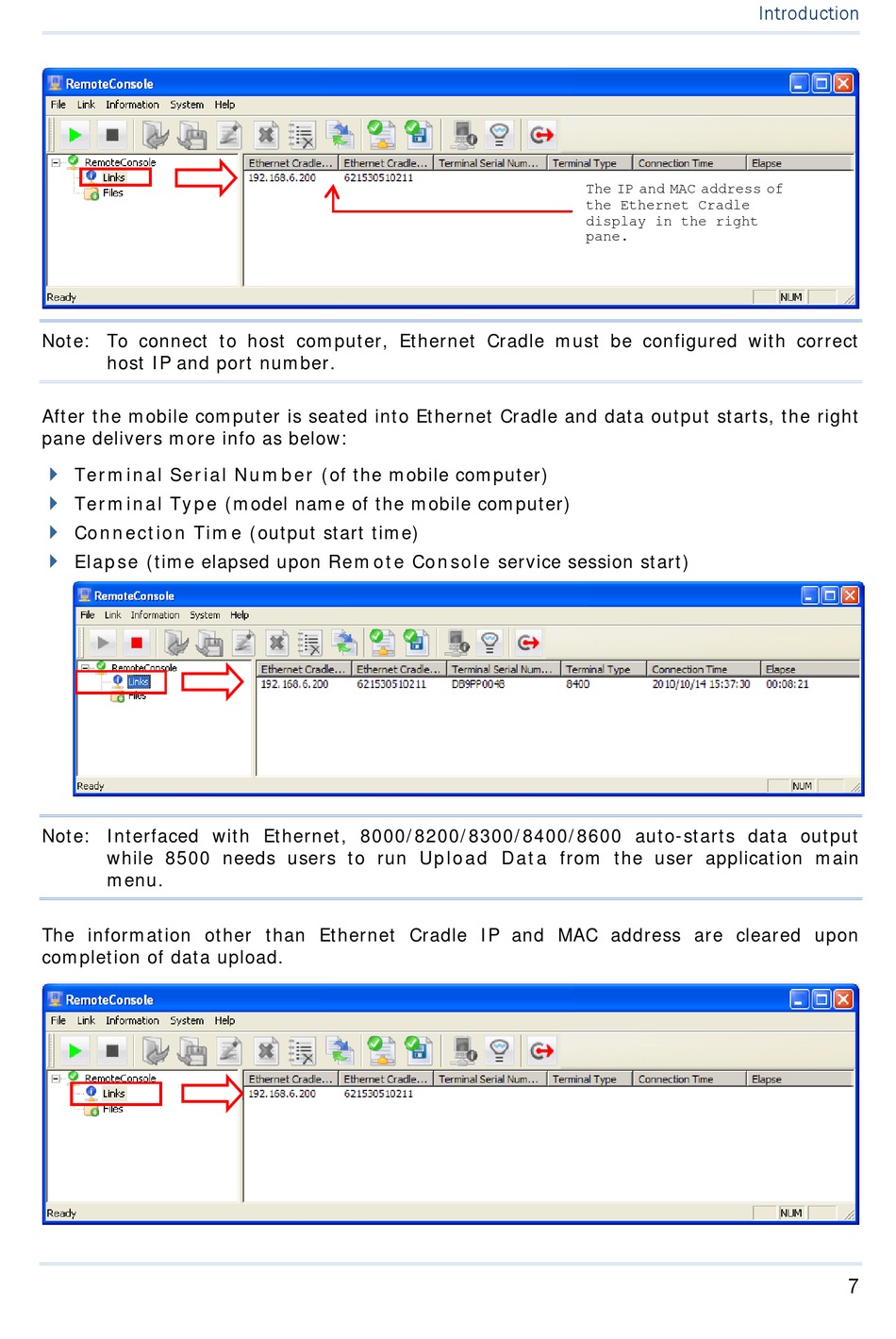

CipherLab 8000 User Manual page 11

Note: To connect to host computer, Ethernet Cradle must be configured with correct
host IP and port number.
After the mobile computer is seated into Ethernet Cradle and data output starts, the right
pane delivers more info as below:
Terminal Serial Number (of the mobile computer)

Terminal Type (model name of the mobile computer)

Connection Time (output start time)

Elapse (time elapsed upon Remote Console service session start)

Note: Interfaced with Ethernet, 8000/8200/8300/8400/8600 auto-starts data output
while 8500 needs users to run Upload Data from the user application main
menu.
The information other than Ethernet Cradle IP and MAC address are cleared upon
completion of data upload.
The IP and MAC address of
the Ethernet Cradle
display in the right
pane.
Introduction
7
