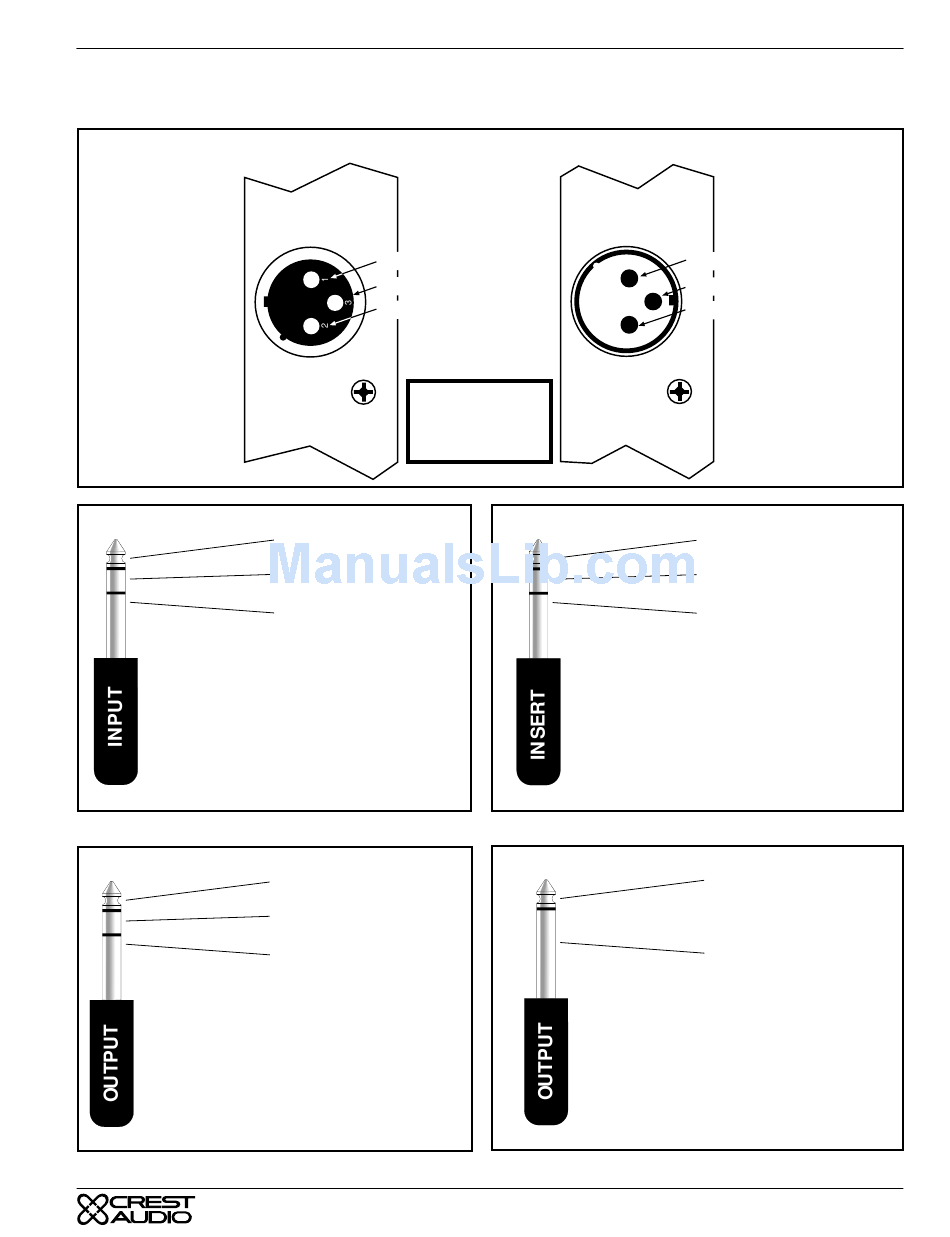

Wiring Conventions

Since the same connectors are used throughout the professional audio industry, it is important to know how the connectors for
Crest's Century SP, TC, and GT consoles are wired. The wiring is as follows.

INPUT XLR

Input Plug Polarities
Output Plug Polarity - TRS
PIN 1
PIN 3
PIN 2
PIN 1 = GROUND
PIN 2 = POSITIVE
PIN 3 = NEGATIVE
TIP - POSITIVE
RING - NEGATIVE
SLEEVE - GROUND
TIP - POSITIVE
RING - GROUND
SLEEVE - GROUND
OUTPUT XLR
PIN 2
PIN 3
PIN 1
TIP - SEND
RING - RETURN
SLEEVE - GROUND
Insert Plug Polarities
TIP - POSITIVE
SLEEVE - GROUND
Output Plug Polarity - Tip/Sleeve
