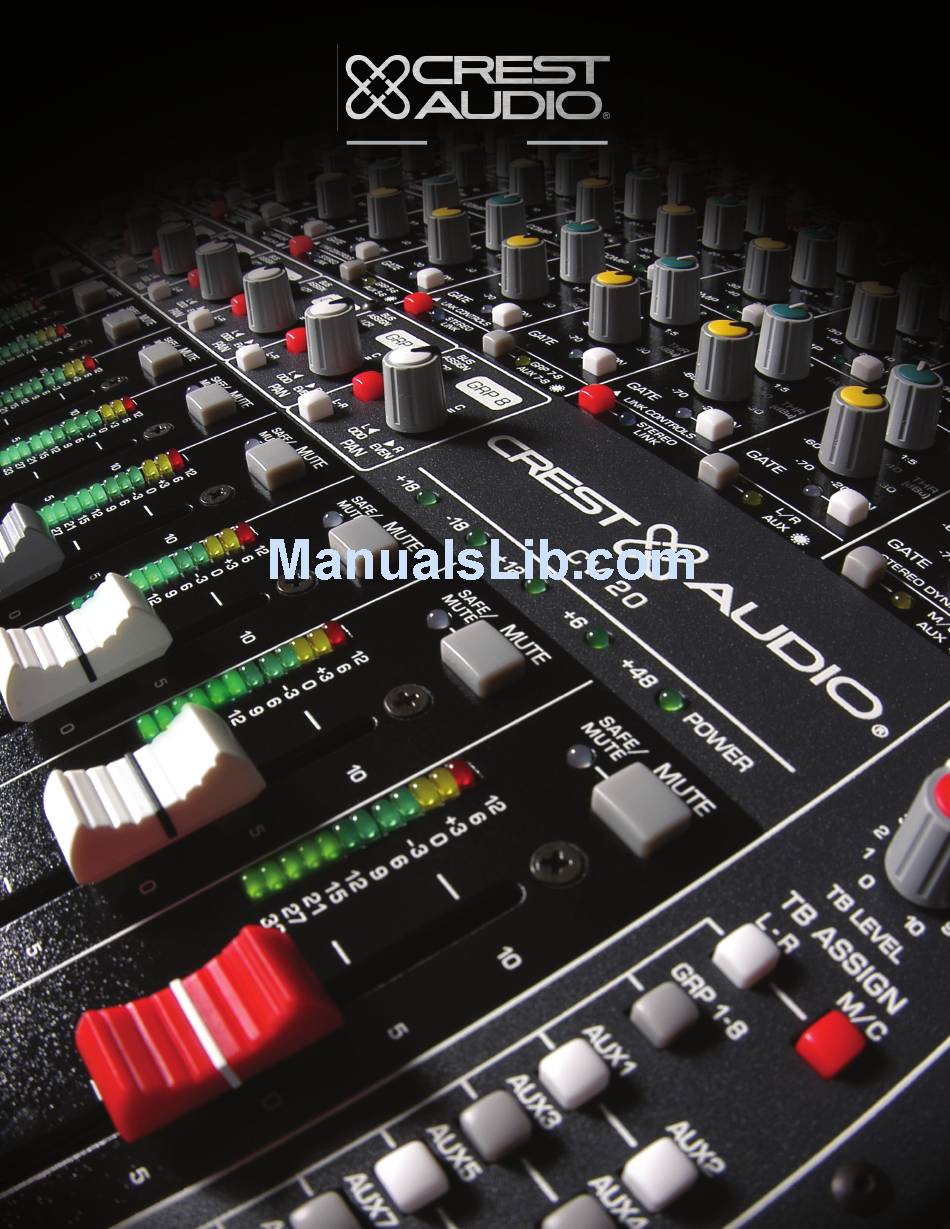

- Page 1 C V 2 0...
- Page 2 deally suited for both Front-of-House and Monitor applications, Crest ® Audio ’s new CV 20 provides complete flexibility for any Live sound ™ application. CV 20 includes those features most-desired by touring and permanent installation engineers. Full-VCA control is provided, not only on input channels but also on group masters (aux masters in fader reverse mode) and L/R and Mono masters for maximum control of complex mixes.
- Page 3 16 mute groups, 136 mute scenes and 128 VCA assignment scenes with easy editing, snapshot automation and MIDI/RS485 control USB Link for saving settings via a jump drive or external control via Crest Audio’s NexSys audio control software package ®...
- Page 4 ono input module blocks are made up of assemblies of 8 channels. Each channel includes switches for; 48 volt phantom power, -25 dB pad and polarity in addition to a high quality mic pre-amp that features high headroom, high slew rate and excellent CMRR performance.
- Page 5 8 Subgroups are also provided for conventional groupings of the inputs via 8 individual assignment switches. Stereo panning between group pairs can also be achieved by selecting the “PAN ON” Switch. Left/Right and Mono routing is done by pressing either the L-R or M/C switches.
- Page 6 ight full-time stereo channels are provided standard on all CV 20 frame packages with the ability to add more ™ modules on custom frame packages. The stereo module is divided into two types of channels. The first four stereo input channels allow mic and line level inputs.
- Page 7 C0501909BB C0501910 C V 2 0...
- Page 8 he Master Module block contains the main audio buses and their associated controls, VCA masters and Mute group/ scene masters and functions including monitoring and talk back. 8 VCA masters are standard on all CV Assigning Channels to a VCA is via “soft assignments”. With a channel assigned to a VCA, not only can the channel’s post fader level be controlled by the VCA master but the channel can also be muted and soloed...
- Page 9 Jump drive with via the USB interface underneath the armrest. The USB interface also has hooks to connect a PC to program and control the Scene Controller via Crest Audio’s NexSys computer controlled audio systems ® hardware.
- Page 10 Meter Bridge: An optional meter bridge is also provided for all frames sizes for analog monitoring (in VU) of ™ all outputs. A total of 17 meters are provided on the meter bridge that is segmented into two sets. The first 12 meters can either meter both subgroups and Power Supplies: One Internal, Field replaceable, Power Factor...
- Page 11 Jump drive using the USB interface underneath the armrest. The USB interface also has hooks to connect a PC to program and control the Scene Controller via Crest Audio’s NexSys computer controlled audio systems hardware. C V 2 0...
- Page 12 Standard Models include 56 Mono inputs + 8 Stereo 5022 HWY 493 N Meridian, MS 39305 USA TEL: 601.486.2000 FAX: 601.486.1380 Weight 145 lbs. 165 lbs. 185 lbs. 205 lbs. 225 lbs. C V 2 0 Crest Audio Inc. www.crestaudio.com Lights...
