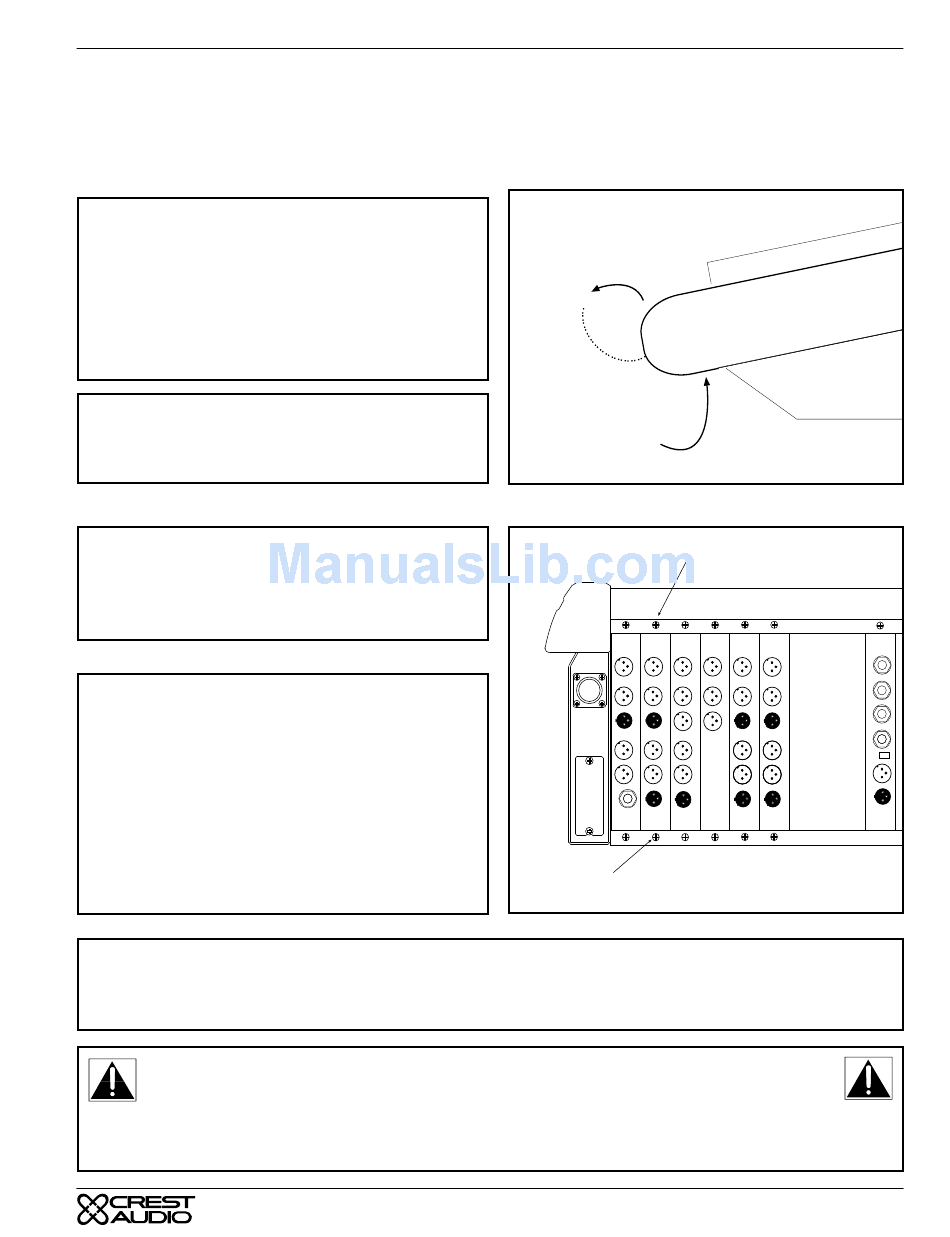

Console Disassembly
Though you shouldn't have to disassemble the console, it is necessary to remove modules to change the jumper and switch set-
tings associated with the internally selectable options. The following steps detail the tasks involved when taking the console
apart.
ONE • Open the armrest
To properly remove one or many modules, the black painted
armrest must first be opened. To do this, the two thumb-
screws (see diagram at right) must be loosened from below.
Once these screws are loose, slide both of them a few inches to
the side (they will only move in one direction). Once the
screws have been moved the armrest will easily roll back
exposing the module screws beneath.
TWO • Remove top module screw
Once the armrest has been opened, there will be a single screw
holding each module in place. Remove the screw from the
module(s) you want to remove.
THREE • Remove rear screws
On the back panel of the console there are two screws holding
each module in place (see diagram at right) Remove both
screws from each module you wish to remove.
FOUR • Lift the module(s) out
As you lift the module out of the chassis three wires must be
detached before the module can be completely removed: 2
flat-wires (ribbon cables) and one ground wire.
The flat-wires are removed by flipping the latches on the ends
of the connectors. Once the tabs have been flipped the connec-
tor should pull off easily.
The ground wire (green) is a spade lug which pulls off.
FIVE • Putting it all back together
Re-assembling a Century Console is as easy as taking it apart, but only if you know where everything goes. If you are going to
be removing a number of modules, consider replacing the first before removing the second. Reversing the above steps should
result in the console being as well put together as it was when it left the factory.
These modules must always be installed in the correct positions. They are NOT interchangeable without being properly re-
assigned. Please contact the Crest Audio Service Department for more information.
IMPORTANT
Output modules are pre-assigned at the Crest factory
Opening the
Armrest
Thumbscrews
Upper Screw
BAL OUT BAL OUT BAL OUT BAL OUT
INSERT SEND INSERT SEND INSERT SEND INSERT SEND
INSERT RETURN INSERT RETURN INSERT RETURN INSERT RETURN
MONITOR B LEFT MONITOR A LEFT RETURN 1
MONITOR B RIGHT MONITOR A RIGHT RETURN 2
OSC IN EXT TB IN
EXT TB OUT
Lower Screw
SP / TC / GT
Light Bar
DIR OUT DIR
BAL OUT LEFT BAL OUT LEFT
INSRT SND INSR
INSERT SEND INSERT SEND
BAL INSRT RTN BAL
INSERT RETURN INSERT RETURN
BAL LINE IN BAL
BAL OUT RIGHT BAL OUT RIGHT
LIFT LIFT
PIN 1 PIN
BAL MIC IN BAL
INSERT SEND INSERT SEND
BAL MIC OUT BAL
INSERT RETURN INSERT RETURN
