SP/TC Master Section

Left & Right Meters
Monitors the post-fader output of the Left & Right channels,
and any PFL'd or AFL'd signals, via a ten-segment LED array.
Power Indicators
These four LED's indicate the status of the four types of power
used by Century Series Consoles.
Headphone Jack
Delivers right and left output, unless a PFL or AFL switch is
depressed. Whenever any signal is in PFL or AFL mode the
headphone jack will deliver that signal. An additional head-
phone jack is located underneath the hand rest on the right-
front part of the console.
Headphone Level Control
Controls signal level delivered to the two headphone jacks.
Local Monitor Level Control
Controls signal level delivered to the local monitor outputs.
PFL Defeat
Disables PFL function to the local monitor, permitting local
monitor output to function as an additional left/right output.
Dim Switch
Introduces -12 dB attenuation into local monitor output. Local
monitors are automatically dimmed when Talkback is engaged.
Mono Switch
Switches local monitor from stereo mode to mono mode.
Local Monitor Mute
Mutes the local monitor signal output.
Aux Master Controls
Controls final output signal level of eight auxiliary outputs.
Aux AFL Switches
Switch the eight auxiliary outputs to After Fader Listening
mode, via the normal PFL signal path. The AUXes can be
monitored as stereo pairs if both AFL switches are depressed.
If only one is depressed, that AUX is monitored in mono.
Talkback Level Control
Controls the level of talkback signal output, and dims the local
monitor, whether or not the Dim switch has been pressed.
Talkback Assignment Switches
Assign the talkback signal to the outputs, groups and or auxes.
Talkback On/Off Switch
Turns the talkback system on and off.
L/R/Mono Mute Switches
Mute outputs of the Left, Right and Mono signals respectively.
L/R Mono Assignment Switches
Assign the Left and Right signals to the Mono output.
L/R/Mono PFL Switches
Allow for Pre Fader Listening of the Right, Left and Mono
output signals.
L/R/Mono Peak & Signal LED's
Red LEDs indicate the signal is within 3dB of clipping point.
The green LED indicates the level of signal activity by varying
in intensity.
L/R/Mono Faders
Adjust final signal level of the Right, Left and Mono outputs.
Talkback Mic Input
Allows a microphone to be plugged in for use with the talk-
back system. This jack is located next to the headphone jack on
the front-right of the console under the arm rest.

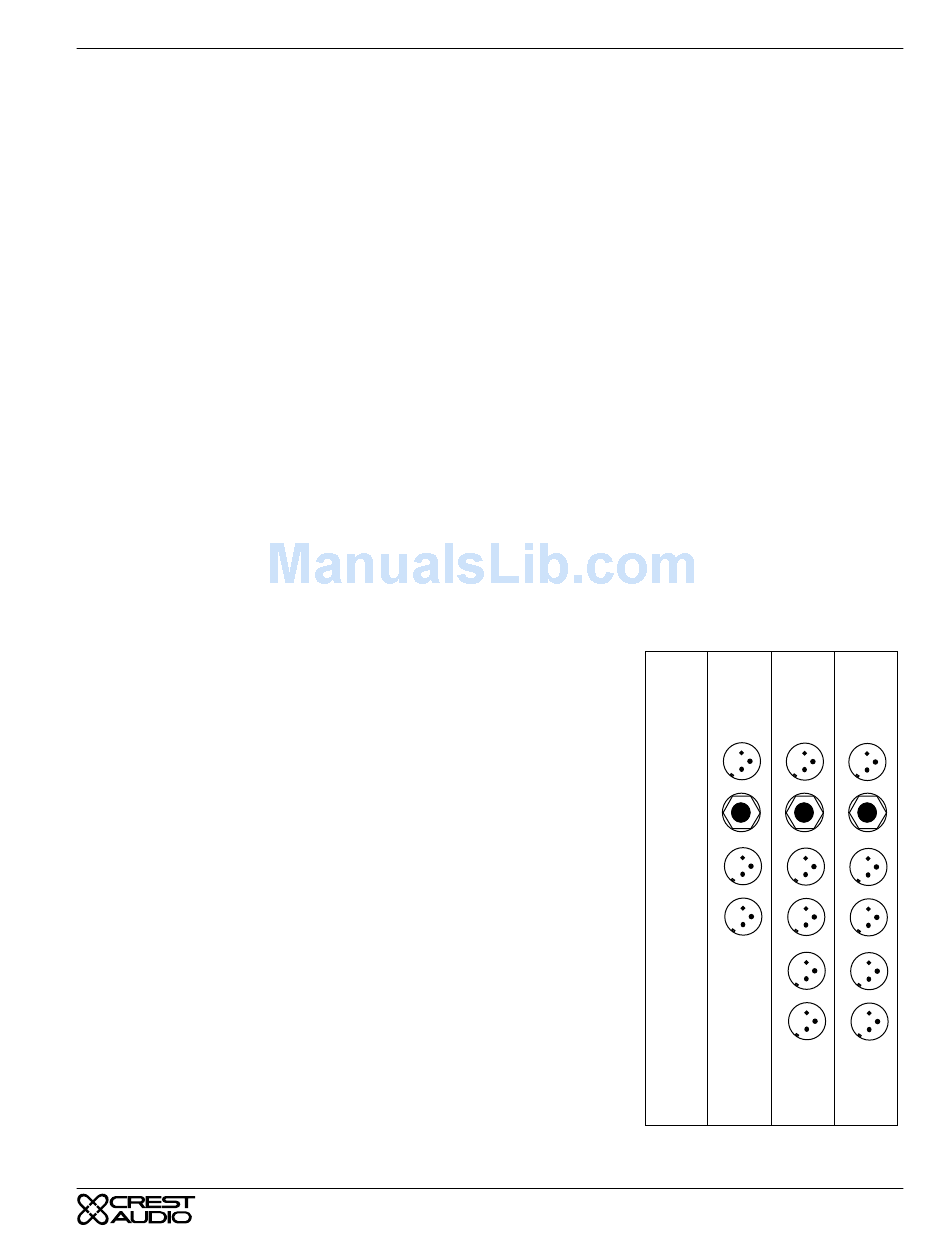

Rear Connections
Mono Out
Delivers balanced post-fader signal containing all signals
assigned to the Mono Clean Bus.
Right Out
Delivers a balanced post-fader signal containing all signals
assigned to the right output.
Left Out
Delivers a balanced post-fader signal containing all signals
assigned to the left output.
Mono Insert
This jack allows for the insertion of a signal processor into the
path of the mono sub-mix.
Right Insert
This jack allows for the insertion of an effect or signal proces-
sor into the audio path of the right sub-mix.
Left Insert
This jack allows for
the insertion of an
effect or signal
processor into the
audio path of the
left sub-mix.
Monitor Out
(R&L)
These two connec-
tors deliver a bal-
anced signal from
the left and right
local monitor.
Aux 1-8 Out
These eight connec-
tions provide the
balanced output sig-
nals from their
respective auxiliary
buses.
SP / TC / GT
MONO OUT RIGHT OUT LEFT OUT
MONO INSERT RIGHT INSERT LEFT INSERT
MONITOR L OUT AUX 3 OUT AUX 1 OUT
MONITOR R OUT AUX 4 OUT AUX 2 OUT
AUX 7 OUT AUX 5 OUT
AUX 6 OUT AUX 8 OUT
