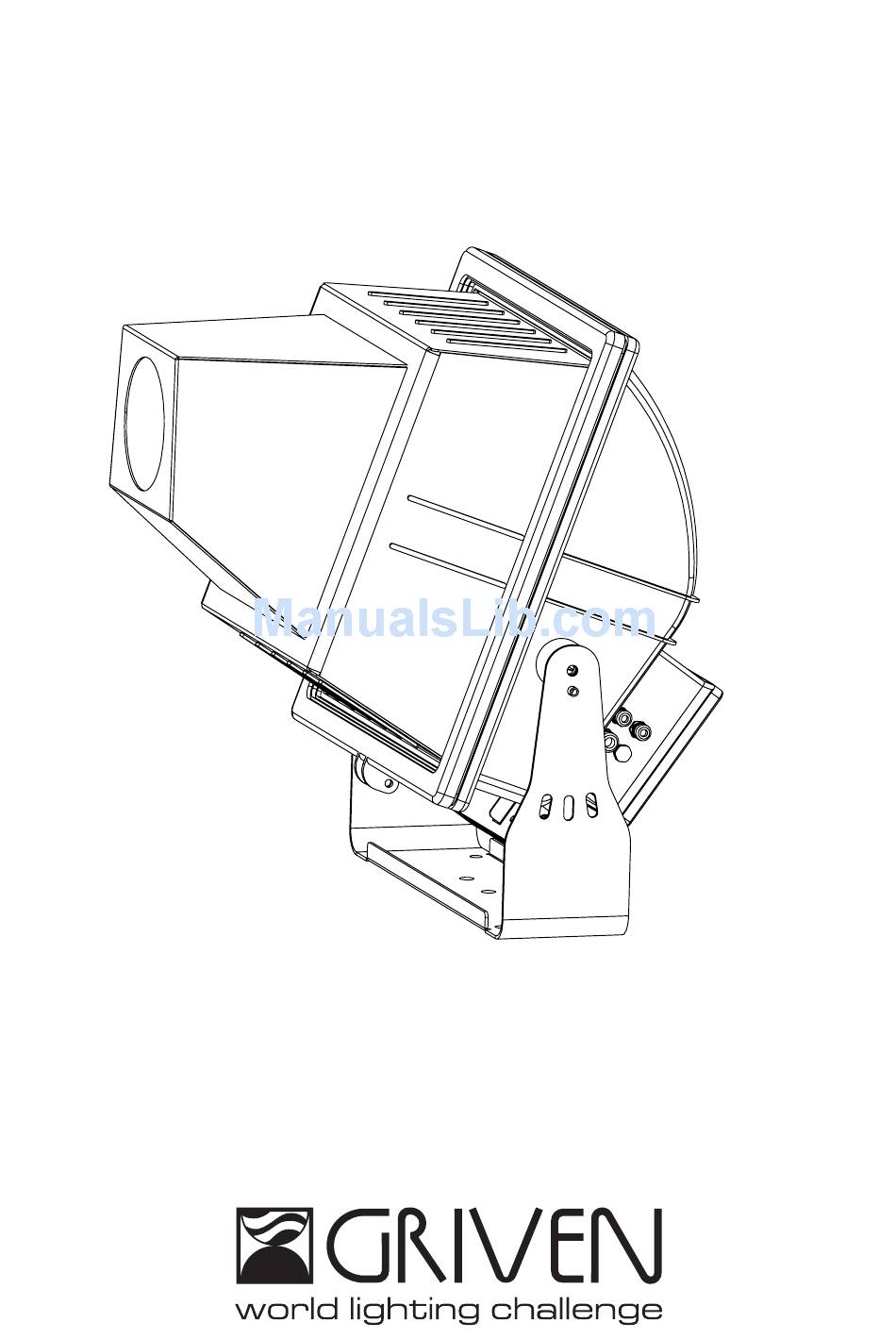

- Page 1 GOBOSTORM PLUS MK2 GR0660 Instruction manual...
-
Page 3: Table Of Contents
INDEX 1.0 Introduction ...................................4 1.1 Safety information........................................4 1.1.1 Protecting against electric shock................................4 1.1.2 Installation ........................................4 1.1.3 Protection against burns and fire.................................4 1.1.4 Protection against lamp explosion................................4 1.1.5 Weather protection .......................................4 1.1.6 Protection against UV radiation ...................................4 1.2 Warranty conditions .......................................4 1.3 Compliance ..........................................5 2.0 Size ....................................5 3.0 Components of the unit..............................6... -
Page 4: Introduction
• GRIVEN srl of Italy does not respond for damages occurred to the units during transport and for irrational use and inaccuracy in regular maintenance of the products. • The guarantee excludes all consumables. • The customer will take care of the return of the faulty parts to GRIVEN srl of Italy, at his own charge and risk. English... -
Page 5: Size
• The parts which have been repaired or replaced are sent by GRIVEN srl of Italy ex-factory. • For any dispute, the Court of Mantova (Italy) will be competent and in conformity with relevant jurisdiction the Italian Law is enforced for any controversy. -
Page 6: Components Of The Unit
• Griven S.r.l. will accept claims for broken or missing goods only within seven days of receipt of the goods. • Returns of equipment will not be accepted without prior authorization granted by Griven S.r.l. and if not duly ac- companied by relevant shipping documents. -
Page 7: Quick Turn On
5.0 Quick turn on In this chapter brief essential instructions for an immediate use of the unit are listed. These instructions are neces- sary to connect and power up the unit, but they will not describe in complete details the functions of the unit it- self. - Page 8 F. Connect the DMX signal by using the cables “4”. G. Power up the unit by using the cable “5”. H. Adjust the DMX address and the operating mode by using the control panel “5” in the rear of the unit. English...
-
Page 9: Installation
6.0 Installation 6.1 Fixing The unit can be used both rested on floor and fixed onto a structure. Possible mounting positions are shown in the following picture. Min 10 cm Min 10 cm Use the holes Ø12.5 and Ø14 in the bracket to fix the unit. 180mm 180mm 7,09in... -
Page 10: Adjusting Light Beam Direction
6.2 Adjusting light beam direction A. Untighten the screws "7" and the grain “8”. B. Rotate the body of the unit towards desired direction and tighten the screws “7” and the grain “8”. 6.3 Connection to mains power The unit can operate with voltage from 200 to 220Vac or 230 to 240Vac and with frequency of 50 and 60Hz. Warning! •... - Page 11 Connect the ballast by using the terminal “10”. Vac IN Cable n° 3 Cable n° 2 Cable n° 1 Close the projector following the numerical order shown in the picture. Power up the ballast. Main supply Brown Live Yellow Green Ground Blue Neutral...
- Page 12 Gobostorm Plus MK2 is fitted with butt connectors and heat shrink tube which allow to perform IP67 connections. To make the connection follow these instructions. A. Open the bag with label “POWER SUPPLY”. You will find inside a piece of heat shrink tube and 4 butt connectors. B.
-
Page 13: Connection To Dmx Signal
6.4 Connection to DMX signal The DMX signal is to be connected by using a shielded cable designed for devices RS-485. The signal cable must be connected according to the following table: GND = Hose DATA - = Black DATA + = Red Warning! All data wires must be isolated one from another and from the shield. - Page 14 D. Warm up the tube by using a heater for heat shrink tubes “20” till the complete shrinkage. The connection so obtained features an IP67 protection rate. If the unit which you are connecting is the last one of the DMX line, insert a 120 Ω terminal resistor connected between DATA- and DATA+, as shown and following.
-
Page 15: Lamp Installation And Replacement
Every time the lamp is replaced, please reset the lamplife counter, as described in paragraph 9.5, in order to de- termine when to perform the next replacement. The specification of the lamp, available via the Griven network of dealers and distributors, are shown in the table below. - Page 16 B. Place the lamp “23” transversally. Close the projector following the numerical order shown in the picture. Attention! Operate the units with the front panel par- tially open for 30-40 minutes before clos- ing them for permanent use. This precaution will avoid the forming of condensation in the projector.
-
Page 17: Replacing Gobos And Focus
8.0 Replacing gobos and focus 8.1 Replacing gobos Gobostorm Plus MK2 features a gobos wheel hosting up to 5 gobos (D Size: Ext 53,3 – Int 38). A. Untighten the screws “9” ed open the projector. B. Slide the metal plate “24” as shown by the arrow. C. -
Page 18: Focus
8.2 Focus The standard beam angle is 9°. By adjusting the objective it is possible to modify the focusing. A. Loosen the knobs “28”. B. Act on the objective “29” to reach the desired focus . C. Tighten the Knobs “28”. 8.3 Mounting the optional 16°... - Page 19 C. Place the lens as shown in the picture and secure it by using the screws previously removed. D. Loosen the screws “32” and remove the spacer “33”. E. Install the objective “34” in its seat and perform the focusing. Close the projector following the numerical order shown in the picture.
-
Page 20: Use Of The Unit
9.0 Use of the unit 9.1 Setting operating mode By the control panel it is possible to select one of the following operating modes: • using DMX512 signal control mode Each fixture is controlled from DMX512 signal control. (see chapter 10.0 DMX function) •... -
Page 21: Automatic Mode
9.4 AUTOMATIC mode Press ENTER when the display shows AUTOMATIC. This mode allows you to run or to create programs. A maximum number of 4 programs is available; each program can perform up to 50 scenes. PROGRAM 1 • PROGRAM 2 •... -
Page 22: Lamp Setting
Values: CANCEL / RESET By selcting RESET the fixture will reset all motors. The lamp will remain in its current status RESERVED 1 • The access to this menu is allowed to GRIVEN engineers only. FIXTURE TEST • Values: YES / NO A test of all the projector functions will be performed;... -
Page 23: Dmx Function Mode
10.0 DMX function mode 10.1 DMX channels Each unit use 11 DMX channels. In case of more units, the first unit will be set with address 001, the second unit with address 0012, the third unit with address 023, etc. 10.2 DMX functions Channel Function Value... - Page 24 Canale Funzione Valore Descrizione 0-15 No effect 16-130 Proportional clockwise control of the rotation Gobos rotation 131-140 No effect 141-255 Proportional anticlockwise control of the rotation No effect Gobo 8-248 360° Gobo indexing (excluding channel 5 for gobos rotation) indexing 249-255 No effect 0-24...
-
Page 25: Dmx Signal Interruption
10.3 DMX signal interruption If the DMX signal is absent the shutter will close and the motors will stop in 5 minutes from the last signal reception. 10.4 Lamp management by DMX signal In the presence of DMX, the lamp is controlled by the 1st channel dmx. To turn off the lamp via DMX you need to stay at least 4 seconds in the 0-63 area of the DMX channel 1. -
Page 26: Rdm Function
This command is used to identify the projector you want to get access to (the identification happens by swit- ching on strobe effect). • Manufacturer The name of the manufacturer (Griven) is displayed. • Model description The projector model (Gobostorm Plus MK2) is displayed. -
Page 27: Gears Lubrication
Warning! • the gears must be exclusively lubricated with perfluoropolyether UNIFLOR™ 8470 also available through GRIVEN authorized dealers network. • This procedure must be exclusively performed by authorized and qualified staff. A. Untighten the screws “9” ed open the projector. -
Page 28: Spare Parts
The gobo holder must perfectly adhere to the Gobo wheel. 14.0 Spare parts All components of the unit are available as spare parts at Griven dealers. Exploded views, wiring diagrams, electronic layouts and advertising brochures are available on request. To make the job of assistance centres easier, specify serial number and model of the unit which spare parts are requested for. -
Page 29: Message Errors
16.0 Message errors The unit display can point out faulty functionings by visualizing error codes. Such a visualization is possible only when the display is at rest condition (visualization of the dmx address). Message Description Projector’s action Motors set to zero. Lamp Communication with slave microprocessor interrup- turns off. -
Page 30: Troubleshooting
17.0 Troubleshooting Inconvenience Possibile Cause Action The fixture is com- Check that power is switched on and cables are No power to fixture. pletely dead plugged in. Incorrect DMX cable Check connections and wires. Rectify inefficient connection. connections. Repair or replace damaged wires. Unfinished data Insert a terminal plug in the output jack of the last unit of connection. - Page 31 NOTES English...
- Page 32 Via Bulgaria, 16 - 46042 CASTEL GOFFREDO (MN) - Italy Telefono 0376/779483 - Fax 0376/779682 - 0376/779552 http://www.griven.com/ e-mail griven@griven.com http://www.griven.it/ e-mail griven@griven.it User’s manual rel. 1.30...
