Description of Each Component

Camera Link connector (

● ● ● ●
The pin arrangement and the signals assigned to those pins are shown in the following table:

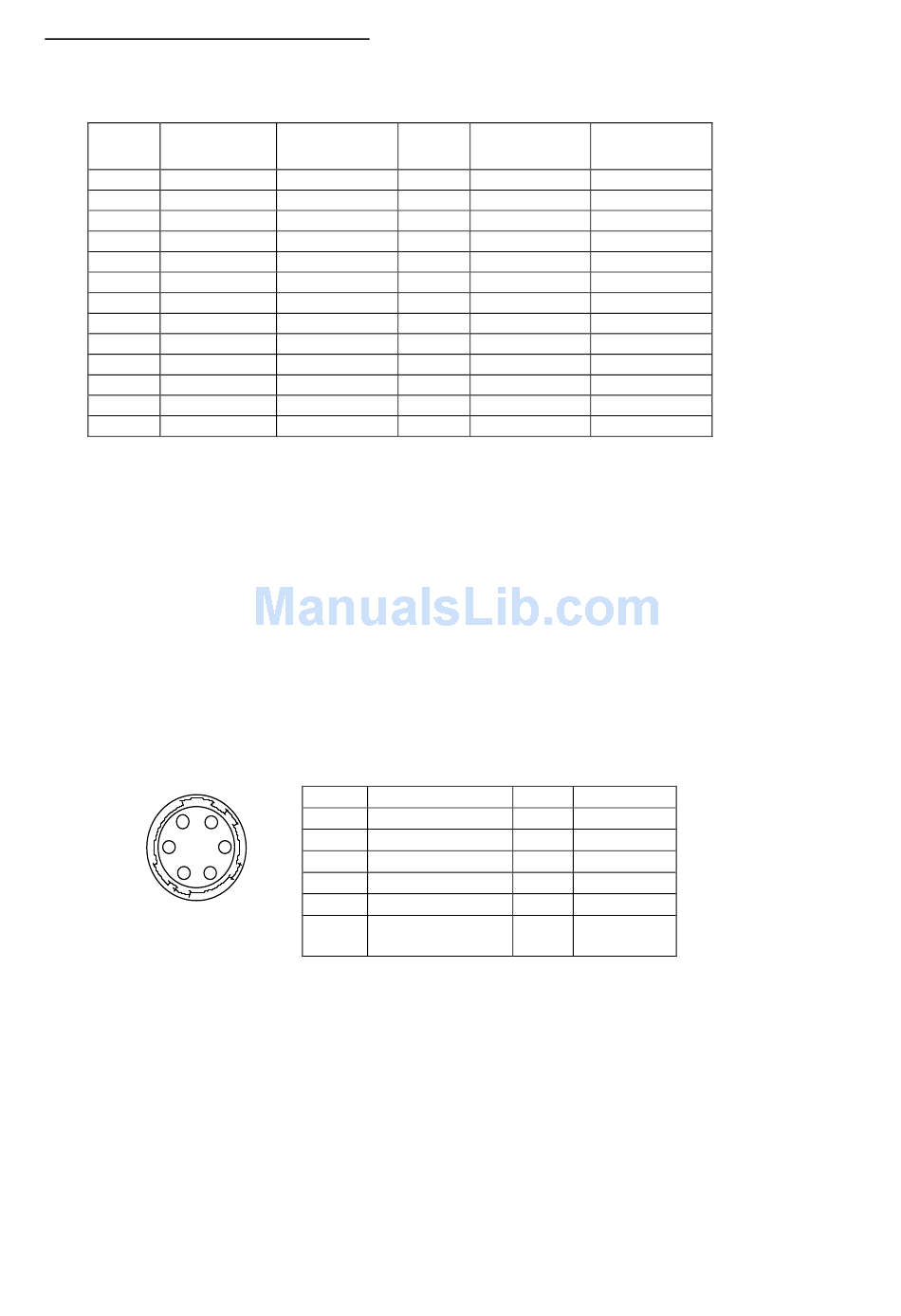

[Pin arrangement of Camera Link connector (SDR-2 Connector)]
Pin No. Signal name
1 inner shield
2 X0-
3 X1-
4 X2-
5 Xclk-
6 X3-
7 SerTC+
8 SerTFG-
9 CC1- (TRIG)
10 CC2+
11 CC3-
12 CC4+
13 inner shield
(Note) The pins of Camera Link connector are differently laid out for the camera (upper table) and for the capture board.
Note that the connection numbers of the cable for the capture board are opposite to those for the camera as
described below:
1 = inner shield,
2 = CC4-,
3 = CC3+,
⋅⋅⋅⋅
12 = X0+,
13 = inner shield,
(Pin layout on frame grabber board side)
(Note) This equipment is not PoCL type. Apply DC Power through Power connector.
● ● ● ● Power connector
１
２
３
(Pin arrangement viewed
from the outside of the camera)
*1 Power connector (HRS HR10A-7R-6PB)
*2 Refer to the diagram of the shutter timing as for STRB.
Note: Particular attention should be paid to the connection of power pins. If the power line is connected reversely,short-circuit current
flows through a protection diode and a fuse blows out. Such a failure is not covered under warranty.
3M / SDR-26 FEMALE
Twin-ax cable
assignment
shield
PAIR1-
PAIR2-
PAIR3-
PAIR4-
PAIR5-
PAIR6+
PAIR7-
PAIR8-
PAIR9+
PAIR10-
PAIR11+
shield
14 = inner shield
15 = CC4+
16 = CC3-
⋅⋅⋅
25 = X0-
26 = inner shield
(HRS HR10A-7R-6PB)
Pin No.
1
６
2
５
3
４
4
5
6
)
Pin No. Signal name
14 inner shield
15 X0+
16 X1+
17 X2+
18 Xclk+
19 X3+
20 SerTC-
21 SerTFG+
22 CC1+ (TRIG)
23 CC2-
24 CC3+
25 CC4-
26 inner shield
Signal name I/O
GND IN
TRIG *1 IN
VD *2 IN
HD *2 IN
STRB (Strobe signal) OUT
+12V IN
- 5 -
Twin-ax cable
assignment
shield
PAIR1+
PAIR2+
PAIR3+
PAIR4+
PAIR5+
PAIR6-
PAIR7+
PAIR8+
PAIR9-
PAIR10+
PAIR11-
shield
Signal voltage
0V
+2.5V to +5V
+2.5V to +5V
+2.5V to +5V
+3.3V
+12V
N10316;5/36
