How to use the Communication Software

● ● ● ● Precautions for use Precautions for use Precautions for use Precautions for use
Setting values stored on EEPROM are valid even if the power source is turned off.
■
It is possible to immediately get back to normal state by preliminarily saving the default setting values in the file, even when
incorrect set values are saved on EEPROM. For that reason, if the contents of EEPROM are to be changed, be sure to save
the original setting values in the file. Refer to "Saving the EEPROM data onto the File" in another section.
When the camera is switched ON/OFF or replaced, always change settings after clicking "Read ALL" button and reading all
■
the setting values. If it is carried out in the state that the previous setting values are displayed It may not be able to normally
change settings,.
It may happen that the picture image is distorted for a moment when "Read ALL " is carried out. However it does not mean
■
abnormal state of the camera.
To display current setting values in Excel form
To write CLCtrl settings onto camera
To read settings of the camera in operation
(Note) Some items are prohibited to set. If those items are selected, it may cause the camera to malfunction.
In that case, release the selection of the items and restart communication.
To read camera settings into CLCtrl

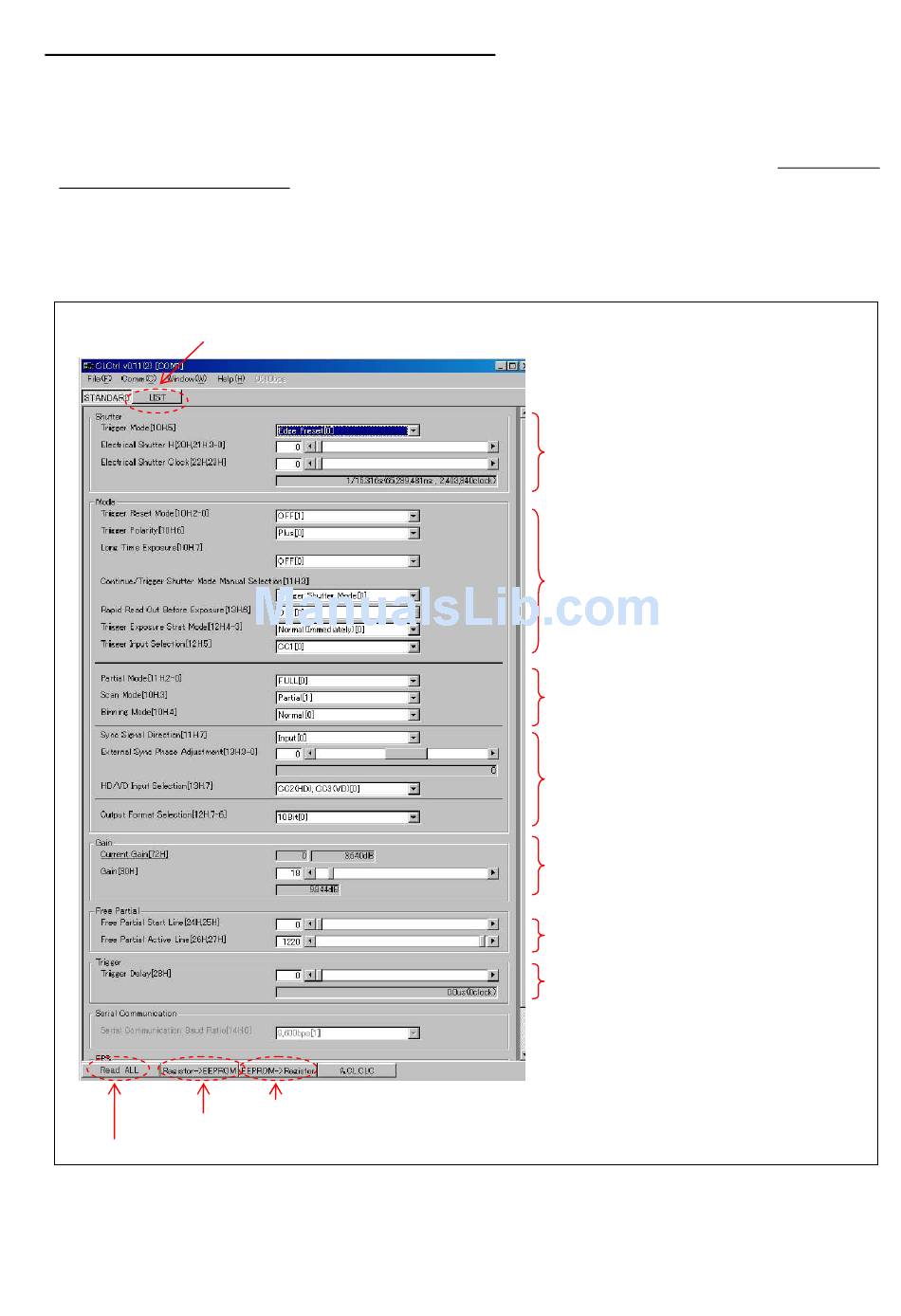

To set trigger mode and exposure time
To set shutter operation mode
To set scanning mode
To set external sync signal and output format
To adjust gain value
To set start line of variable partial scan
To set effective lines of variable partial scan
To set trigger delay time
Nonuse
