Power Trim Instrument and Displays

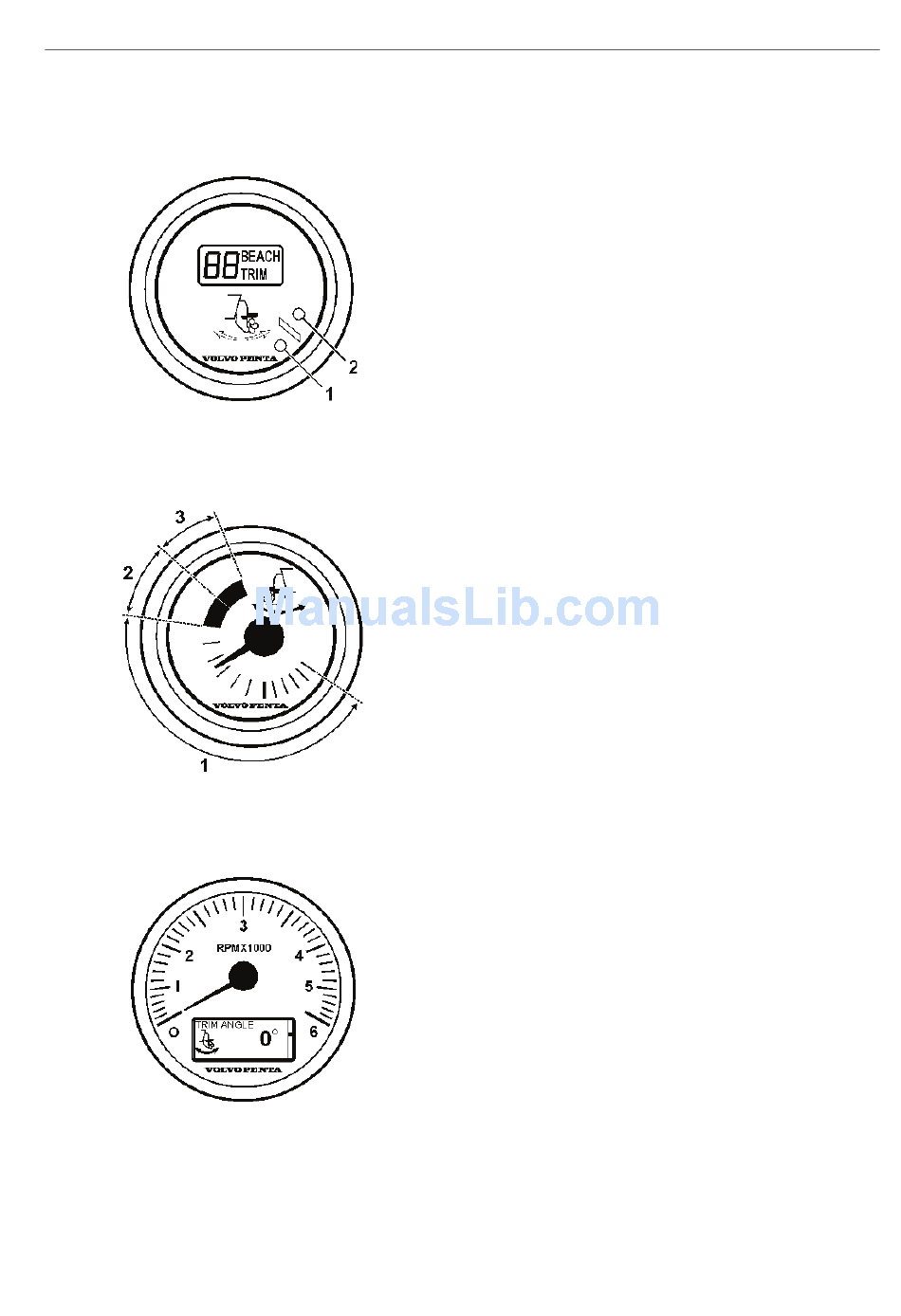

Digital Instrument
The digital instrument shows the trim angle in digits
and the trim range (TRIM) and beach range (BEACH)
in letters. When in beach range the LED 1 lights or-
ange. When in tilt range, the LED 2 lights red (no let-
ters are displayed).
When the system is first started, the digits read "88"
and both words "TRIM" and "BEACH" are displayed.
Analog Instrument
This instrument shows the current position of the
drive.
Beach range is marked with an orange zone and Tilt
range with a red zone.
1. Trim range
2. Beach range (orange).
3. Tilt range (red).
Tachometer LCD Display
The trim angle may also be viewed in the LCD display
of the tachometer (if installed). For additional informa-
tion, please see EVC Displays on page 128.
