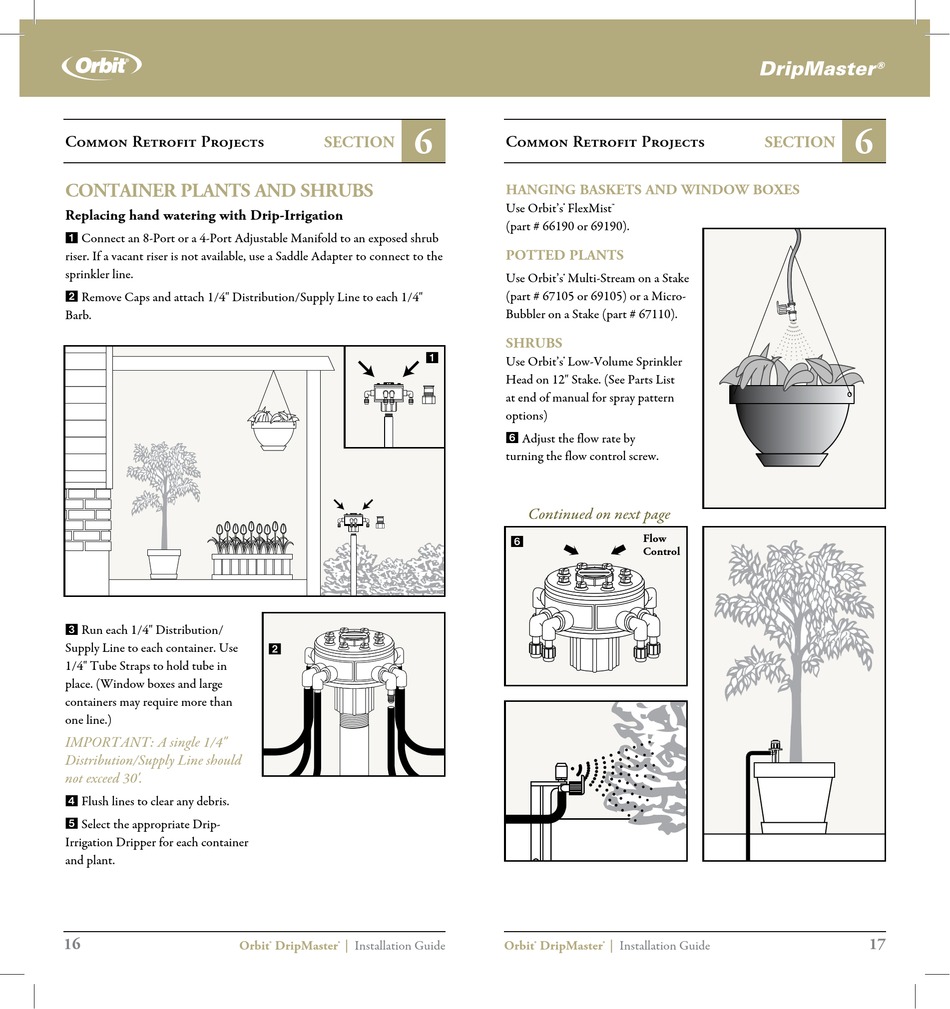

CONTAINER PLANTS AND SHRUBS

Replacing hand watering with Drip-Irrigation
1 Connect an 8-Port or a 4-Port Adjustable Manifold to an exposed shrub
riser. If a vacant riser is not available, use a Saddle Adapter to connect to the
sprinkler line.
2 Remove Caps and attach 1/4" Distribution/Supply Line to each 1/4"
Barb.
3 Run each 1/4" Distribution/
Supply Line to each container. Use
1/4" Tube Straps to hold tube in
place. (Window boxes and large
containers may require more than
one line.)
IMPORTANT: A single 1/4"
Distribution/Supply Line should
not exceed 30'.
4 Flush lines to clear any debris.
5 Select the appropriate Drip-
Irrigation Dripper for each container
and plant.
16
Orbit
6
SECTION
1
2
DripMaster | Installation Guide
® ®
Common Retrofit Projects
HANGING BASkETS AND WINDOW BOxES
Use Orbit's FlexMist
® ™
(part # 66190 or 69190).
POTTED PLANTS
Use Orbit's Multi-Stream on a Stake
®
(part # 67105 or 69105) or a Micro-
Bubbler on a Stake (part # 67110).
SHRUBS
Use Orbit's Low-Volume Sprinkler
®
Head on 12" Stake. (See Parts List
at end of manual for spray pattern
options)
6 Adjust the flow rate by
turning the flow control screw.
Continued on next page
Flow
6
Control
Orbit DripMaster | Installation Guide
® ®
