Common Retrofit Projects
Supplies Needed
- 8-Port Adjustable Manifold (part # 67000 or 69000)
Or
- 4-Port Adjustable Manifold (part # 67005 or 69005)
- The appropriate Drip-Irrigation Sprinkler listed above
- 1/4" Tube Straps (part # 65715 or 69715)
- 1/4" Distribution/Supply Tube (part # 67300, 67301 or 67303)
18
Orbit
6
SECTION
DripMaster | Installation Guide
® ®
Common Retrofit Projects

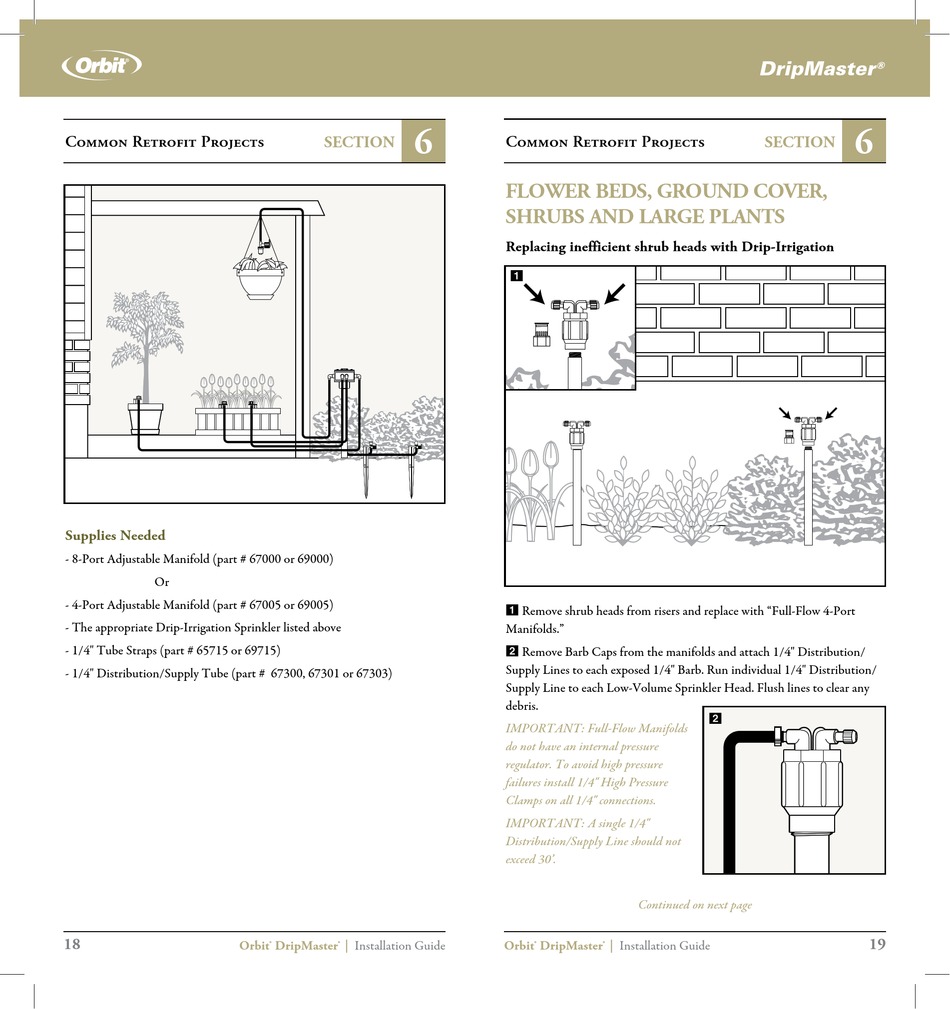

FLOWER BEDS, GROUND COVER,
SHRUBS AND LARGE PLANTS
Replacing inefficient shrub heads with Drip-Irrigation
1
1 Remove shrub heads from risers and replace with "Full-Flow 4-Port
Manifolds."
2 Remove Barb Caps from the manifolds and attach 1/4" Distribution/
Supply Lines to each exposed 1/4" Barb. Run individual 1/4" Distribution/
Supply Line to each Low-Volume Sprinkler Head. Flush lines to clear any
debris.
IMPORTANT: Full-Flow Manifolds
do not have an internal pressure
regulator. To avoid high pressure
failures install 1/4" High Pressure
Clamps on all 1/4" connections.
IMPORTANT: A single 1/4"
Distribution/Supply Line should not
exceed 30'.
Continued on next page
Orbit DripMaster | Installation Guide
® ®
DripMaster
®
6
SECTION
2
