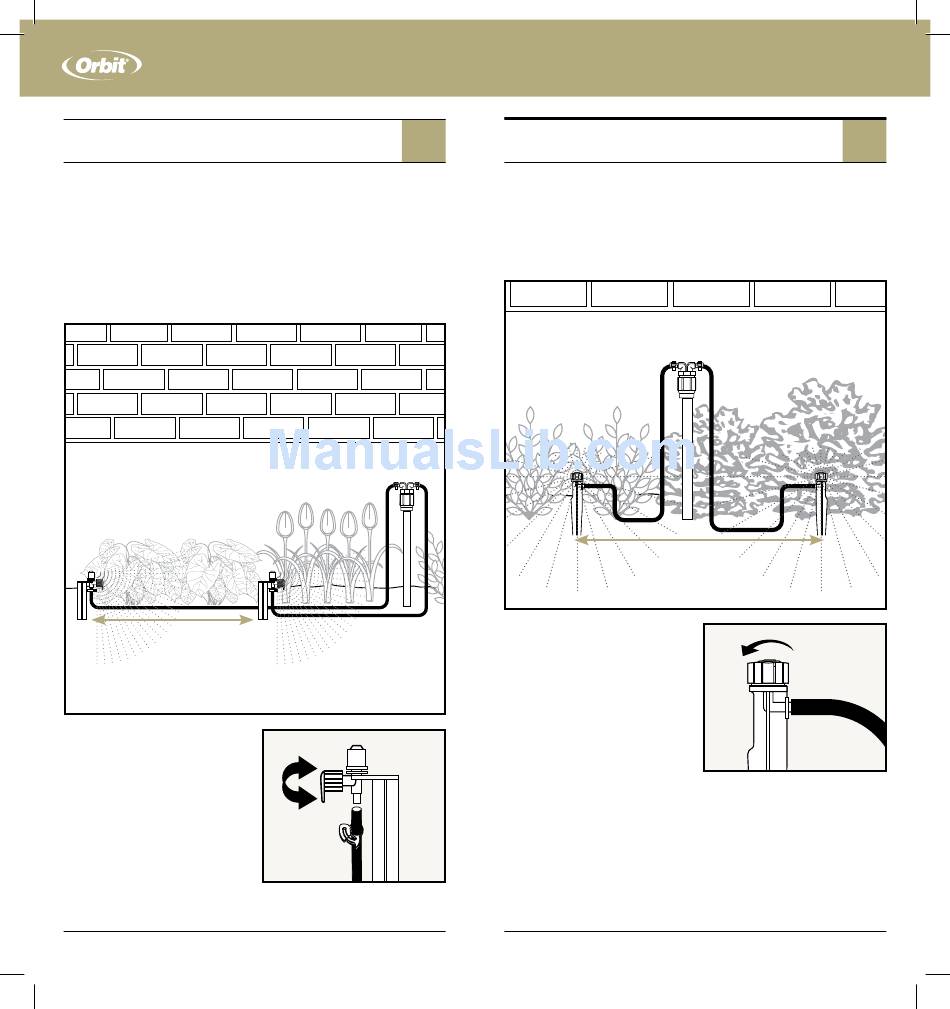

FLOWER BEDS AND GROUND COVER
Attach a Low-Volume Sprinkler Head on 12" Stake, spaced no more than
10' apart. (See Parts List for spray pattern options)
or
Multi-Stream Dripper on a stake, spaced no more than 3' apart.
(part # 67105 or 69105)
No more than 10' apart
Note: Adjust the flow rate by turning
the flow control on each Drip-
Irrigation sprinkler head.
20
Orbit
6
SECTION
DripMaster | Installation Guide
® ®
Common Retrofit Projects
SHRUBS AND LARGE PLANTS
Use Orbit's Multi-Stream Dripper on a Stake next to each shrub or large
®
plant. (part # 67105 or 69105)
No more than 3' apart
Note: Adjust the flow rate by turning
the flow control on each Drip-Irrigation
Sprinkler Head.
Supplies needed:
- Full-Flow 4-Port Manifold (part # 67025 or 69025)
- The appropriate Drip-Irrigation sprinkler head listed above
- 1/4" Distribution/Supply Tube (part # 67300, 67301 or 67303)
- 1/4" High Pressure Clamps (part # 67710 or 69710)
