Preassembled mist cooling kit

Advertisement

Quick Links

SYSTEM EXPANSION
The Preassembled Basic Mist Cooling Kit can easily be expanded from the original
kit of 6 nozzles/12-ft of mist line to 25 nozzles/50-ft (dependent upon your local
water pressure available). Simply unscrew end cap from last fitting and attach the
extension kit.
Remove
Mist Coupling
ADDITIONAL ACCESSORIES
Additional supplies can be found at your local retail store.
Model 20050- Preassembled Mist Expansion Kit- Expands the
Basic kit by 10-ft
WARRANTY AND STATEMENT
Orbit
Irrigation Products, Inc. warrants to its customers that its Orbit
®
will be free from defects in materials and workmanship for a period of four years
from the date of purchase. We will replace, free of charge, the defective part or
parts found to be defective under normal use and service for a period of up to four
years after purchase (proof of purchase required). We reserve the right to inspect
the defective part prior to replacement. Orbit
responsible for consequential or incidental cost or damage caused by the product
failure. Orbit
liability under this warranty is limited solely to the replacement or
®
repair of defective parts.
Questions please call: 1-800-488-6156 or 1-801-299-5555
Working Water Pressure Min 45 to 123 PSI (Min 3.1 to 8.5 Bar)
www.orbitonline.com
© 2016 Orbit Irrigation Products, Inc.
All rights reserved. All trade names
are registered trademarks of
respective manufacturers listed.
Orbit
Irrigation Products Inc.
®
845 North Overland Road
North Salt Lake, Utah 84054 USA
www.orbitonline.com
800-488-6156
801-299-5555
PN 20030-24 rC
End Cap
Connect
Expansion Kit
products
®
Irrigation Products, Inc. will not be
®
Preassembled
MIST COOLING KIT
USER'S GUIDE
WARNING: Read all instructions and check kit contents before beginning assembly.
PARTS LIST
Part
Qty
1
6
12
1
If items are missing, please return to the place of purchase, or call
Orbit
Customer Service at (800) 488-6156.
®
Description

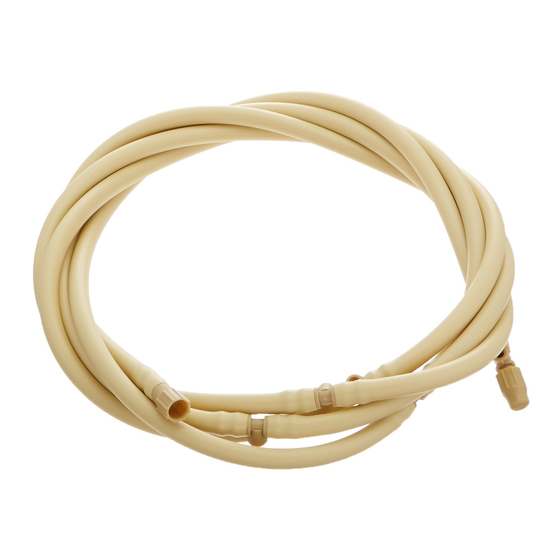

22-ft Preassembled ⅜-in Flexible Mist Line -
Includes 10-ft of feed line, 7 fully rotatable fittings
inserted in tubing at 24-in increments,
a hose adapter and a threaded end cap
Mist Nozzle
Mounting Clips
Automatic Drain Valve
