Orbit 57029 Installation Instructions

AUTOMATIC CONVERTER
MODEL 57029, 57030
INSTRUCTIONS FOR OPERATION

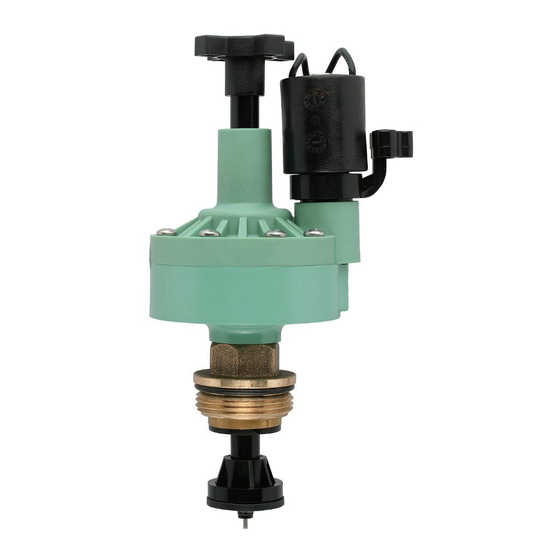

The Automatic Converter converts manual sprinkler valves to automatic.
The Converter works with most 24-volt timers.
• Always check local codes before installing any sprinkler system.
• If static water pressure exceeds 80 PSI, a pressure regulator should be used.
ORBIT IRRIGATION PRODUCTS, INC. • NORTH SALT LAKE, UTAH 84054
®
OTHER ORBIT PRODUCTS
®
PRODUCT PART NUMBER BENEFIT/DESCRIPTION OF USE
Automatic 57069 Automatically interrupts the watering cycle of
Rain Shut-Off sprinkler timer when it rains and returns the timer
to automatic cycle when the water in the collecting
pan evaporates.
Weather 57095 Allows outdoor installation of any brand of indoor
Resistant Box UL mount timer. It is UL
®
Pump Start Relay 57009 Automatically activates pump for automatic water-
ing (i.e. with well water).
AUTOMATIC RAIN SHUT-OFF - 57069 PUMP START RELAY - 57009
WEATHER RESISTANT BOX UL - 57095
®
ORBIT LIMITED 6 YEAR WARRANTY
®
Orbit ® Irrigation Products, Inc. warrants to its customers that its Orbit ®
materials and workmanship for a period of six years from the date of purchase. We will replace, free of charge,
the defective part or parts found to be defective under normal use and service for a period of up to six years after
purchase: proof of purchase is required. We reserve the right to inspect the defective part prior to replacement.
Orbit ® Irrigation Products, Inc. will not be responsible for consequential or incidental cost or damage caused by
the product failure. Orbit Irrigation Products, Inc. liability under this warranty is limited solely to the replacement
®
or repair of defective parts.
INSTALLATION INSTRUCTIONS
1. REMOVE MANUAL STEM–Shut off the water supply and remove the manual valve stem,
leaving the valve body installed. Remove the o-ring or flat washer.
2. INSERT CONVERTER AND REASSEMBLE VALVE–Attach the automatic converter, making
sure the o-ring or gasket seals completely. When converting a brass anti-siphon valve, the
anti-siphon cover must be removed and replaced simultaneously with the converter. Make
sure the plunger and gasket are lined up correctly when replacing the anti-siphon cover.
Turn on the water supply and check assembly for leaks.
NOTES:
• Flow control must be fully open during installation to avoid damaging the valve
3. RUN THE WIRE–With the power off, connect the valve to an Orbit
that uses a UL approved 24-volt class 2 transformer as a power source). Use a multi-
®
colored, multi-strand, jacketed sprinkler wire. Be sure the wire has at least one more
strand than the number of valves in the manifold. Trench and run the wire to the valves. It is
recommended, in areas that you will be frequently digging, that you use a section of PVC as
a protective covering.
4. ATTACH THE WIRE–Attach a colored wire to one wire on the solenoid and a common
wire to the other wire of the solenoid. It doesn't matter which solenoid wire you use as the
common. Attach the colored wires to the corresponding zone terminal in the timer and the
common wire to the common connection of the timer. Use standard sprinkler wire (20 gauge)
for distances less than 800 feet and 18 gauge wire for over 800 feet. Use an Orbit
and Wire Nut at each solenoid for a water-proof connection. Also water-proof any splices
made along the run.
5. CLOSE THE SPRINKLER VALVES–Turn the Manual Bleed Lever clockwise until closed.
Turn the water supply on. The valve should remain closed.
6. OPEN VALVES AND SET FLOW CONTROL–Turn the Manual Bleed Lever counter-clock-
wise to manually open the valve. Open the flow control to adjust the sprinkler heads to the
desired spray coverage. Then close the Manual Bleed Lever, the valve will shut off in a few
moments. The system is now ready to be controlled electrically from the controller or manu-
ally by opening the Manual Bleed Lever. NOTE: The flow control is not a positive shut-off.
DRAINING–In freezing areas, the valves and lines will need to be drained. Refer to the Orbit
Layout Guide or your local dealer to recommend proper drain points. To insure the electric
valves are completely drained in the fall, turn off the main sprinkler shut-off valve and electri-
cally run each valve dry for a few minutes. Turn the timer to the off position until spring.
CAUTION:
• If Static Water Pressure exceeds 80 PSI, a pressure regulator should be used.
• For outdoor use with cold water only: Do not use for indoor applications. Valves should be
placed so that water drains away from the house.
NOTES:
• Where possible, always protect valves with an Orbit
Orbit Irrigation Products, Inc.
®
North Salt Lake, UT 84054 USA
www.orbitonline.com | 1-801-299-5555
MANUAL VALVE
Manual
Valve Stem
Anti-Siphon
Cover
Flat Washer
listed.
®
Valve Body
WIRING THE CONVERTER TO THE TIMER
Valve Common
Connection
products will be free from defects in
timer (or other timer
®
Grease Cap
®
Valve Box and place gravel in the bottom.
®
© 2014 Orbit Irrigation Products, Inc.
®
All rights reserved. All trade names are registered
trademarks of respective manufacturers listed.
PN 57029-32 rE
REPLACING THE MANUAL STEM
WITH THE CONVERTER
Flow Control
Manual Bleed
Gasket or
o-ring
Anti-Siphon
Cover
Cover Flat
Washer
Adapter Ring:
Use when
converting
some plastic
manual valves.
Plunger
Valve Body
Single Common Wire
Out (to timer)
Grease Caps
and Station Wire
To Timer
Connections
ELECTRIC VALVE TROUBLE SHOOTING
Your Orbit Automatic Converter valve should provide years of trouble-free service.
®
However, if you do have any problems, try the following solutions.
PROBLEM: THE VALVE WILL NOT OPEN ELECTRICALLY
First, run the valve manually: Open the bleed lever (rotating it clockwise) and check to see that the flow control
is in the open position (Turn counter-clockwise). If the flow control is open and the valve still will not operate
electrically, check the following possibilities. (Close bleed lever when manual test is completed)
Check if... Solution:
1. Wiring is Check the wiring at the valve and at the timer.
correct. Check to see that the timer is working properly.
2. There is debris Turn off the water. Remove the solenoid. Push a wire or large paper clip down through
in the port hole. the round port hole working it up and down to free any debris. Be sure the plunger and
o-ring are in place when reassembling.
3. Solenoid plunger Turn off the water. Remove solenoid and clean out any sand and debris. Be sure the
is stuck. plunger and o-ring are in place when reassembling.
4. Defective Turn off the water. Unscrew the solenoid and replace with one from a working valve. If
solenoid. the valve now works, replace the solenoid. Be sure the plunger and o-ring are in place
when reassembling.
PROBLEM: THE VALVE WILL NOT CLOSE
Check if... Solution:
1. Improper sizing. Check that the proper-sized automatic valve was purchased for your size and brand
name of valve body. See conversion chart on reverse side.
2. Solenoid Turn off the water. Remove solenoid and clean out sand and debris. Be sure the plunger
plunger is stuck. and o-ring are in place when reassembling.
3. Worn seat in Turn off water. Remove the automatic converter and check that the lower seat of the
valve body. valve body is not worn or damaged.
4. Debris between Turn off water. Remove the Automatic Converter Valve by turning the hex nut counter-
washer and clockwise. Clean out any debris.
valve seat.
5. Diaphragm is Turn off water. Replace Diaphragm Assembly.
ruptured.
PROBLEM: EXTERNAL VALVE LEAKS
®
Check if... Solution:
1. Pressure is Install a pressure regulator valve and set at about 80 PSI.
too high.
2. Leaking around Turn off the water. Undo the leaking screw 4 or 5 turns and retighten firmly.
screws.
3. Leaking below Turn off the water. Tighten the solenoid.
solenoid.
4. Adapter o-ring Turn off the water. If using the Adapter Ring, check that the o-ring is in place.
missing.
5. Hex Nut o-ring Turn off the water. Check that the Hex Nut o-ring or gasket is in place and is not pinched
missing. or otherwise unable to seal against the valve body.
6. The diaphragm Turn off the water. Remove cap and change the diaphragm.
is split or torn.
7. Hex Nut is cross Turn off the water. Check that the Automatic Converter Hex Nut has been installed into
threaded. the valve body correctly. Attempt to reinstall the Automatic Converter into the valve
body. If the threads are stripped, replace the Hex Nut.
PARTS LISTING
Flow control
Handle
Solenoid
Assembly 57041
Bleed Lever
Solenoid
Plunger
Solenoid
o-ring
Cover
Assembly
S.S. Screws
Spring
Diaphragm
Assembly
Body
Assembly
Hex Nut
Sub-Assembly
Seal Retainer
Sub-Assembly
Model 57030 includes a ring adapter required to convert most brands of manual valves to automatic.
Auto Converter brand 3/4"
compatibility table Plastic Plastic
Orbit 57030
®
Champion 57030
®
Rainjet ® 57030
Rainbird 57030
®
Richdel /Lawn Genie 57030
® ®
Electrical requirements are 18 Volts
A.C. minimum at the solenoid.
Inrush volt-amps
@24 V.A.C.= 5.5 VA
Inrush current
@24 V.A.C.= .35 AMPS
Holding current
@24 V.A.C.= .23 AMPS
1" 3/4" 1"
Brass Brass
57030 57029 57030
57030 57029 57030
57030 - -
57030 57029 57030
57030 - -
