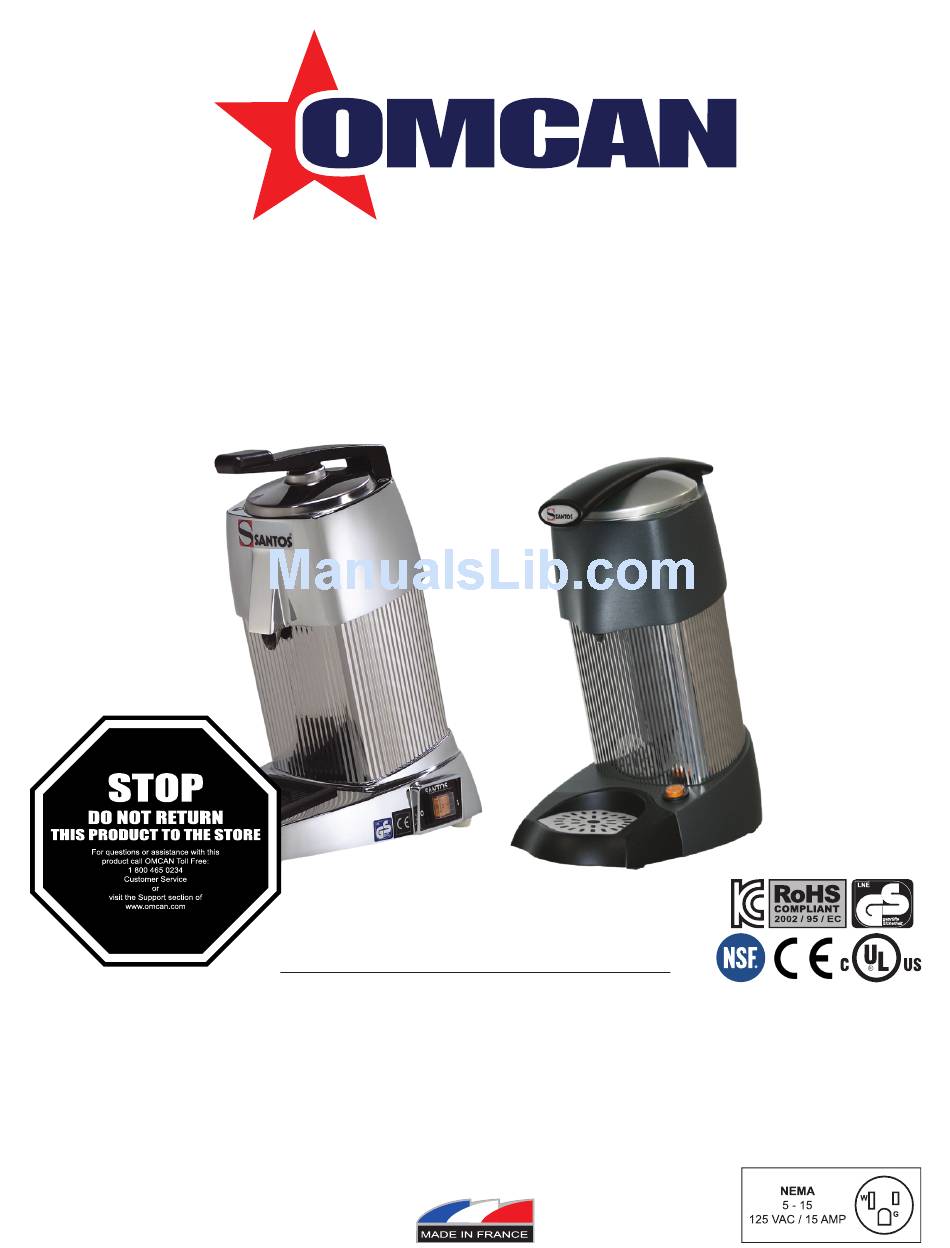

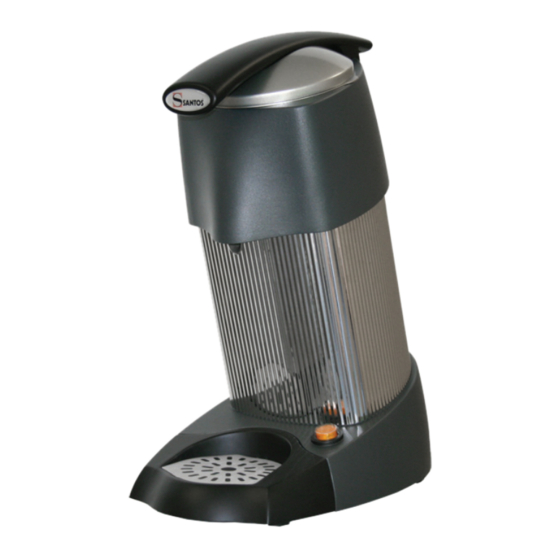

Santos Juice Extractors
Models Santos 10, 70
Items 39687, 39685
Instruction Manual
*
Revised - 11/17/2015
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com
*Model 70 only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SANTOS 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omcan SANTOS 10

Summary of Contents for Omcan SANTOS 10

  • Page 1 Santos Juice Extractors Models Santos 10, 70 Items 39687, 39685 Instruction Manual Revised - 11/17/2015 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com *Model 70 only...

  • Page 2: Table Of Contents

    Table of Contents Model Santos 10 / Model Santos 70 Section Page General Information ------------------------------------------------------------------------------------- 3 - 4 Safety and Warranty ------------------------------------------------------------------------------------ 4 - 5 Technical Specifications ------------------------------------------------------------------------------------ 6 Installation ------------------------------------------------------------------------------------------------------ 6 Operation ------------------------------------------------------------------------------------------------------- 7 Maintenance ---------------------------------------------------------------------------------------------- 7 - 8...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.

  • Page 5: Electrical Connection

    - or on the table on page 6 of this manual. • If the power cable is damaged, it should be replaced with a special unit available from Omcan. WARNING Check that the On / Off switch (6) is in the 0 “0-Off” position before connecting the power cable plug to your mains electric power socket.

  • Page 6: Technical Specifications

    Technical Specifications Model Santos 10 Santos 70 Production (per hour) 30 L / 31.7 qt 50 L / 52.8 QT Power 260W 350W 0.34 0.46 1800 Electrical 120V / 60Hz / 1 PH Current 2.2A 2.9A 305 x 203 x 381mm...

  • Page 7: Operation

    Operation USING FOR THE FIRST TIME: Take care: The fruit used must be washed carefully before squeezing. Preparation and use: 1. Cut the citrus fruit into two halves ready for squeezing. 2. Place the On/Off switch (6) at On. In this position the electric motor operates but the cone (2) is not rotated. 3.

  • Page 8: Troubleshooting

    Maintenance Spare parts: IMPORTANT: Use of spare parts other than certified original Omcan parts is prohibited. This machine requires no specific maintenance. The bearings are lubricated for life. If any intervention is necessary to replace parts subject to wear, such as the cone, the pressing cup electrical or other components, please refer to the parts lists (see the exploded view at the end of this manual).

  • Page 9: Instructions Français

    être verticale par rapport à la surface sur laquelle il est placé. 10. L'utilisation de pièces de rechange autres que les pièces d'origine certifiées Omcan est interdite. 11. Ne raccordez jamais plusieurs appareils sur la même prise de courant.
  • Page 10 1 AN ET PARTIE DU TRAVAIL BANC GARANTIE Dans la période de garantie, contacter Omcan Inc. au 1-800-465-0234 pour planifier une déposer soit un dépôt Omcan de service autorisé dans la zone, ou à un entrepôt de service Omcan de réparer l'équipement.
  • Page 11 Instructions Français SPÉCIFICATIONS TECHNIQUES Modèle Santos 10 Santos 70 Production (par heure) 30 L / 31.7 qt 50 L / 52.8 QT Puissance 260W 350W 0.34 0.46 1800 Électrique 120V / 60Hz / 1 PH Actuel 2.2A 2.9A 305 x 203 x 381mm...
  • Page 12 Instructions Français OPÉRATION UTILISATION POUR LA PREMIÈRE FOIS: Prenez garde: Les fruits utilisés doivent être soigneusement lavés avant de les presser. Préparation et emploi: 1. Coupez l'agrume en deux moitiés prêts à presser. 2. Placez l'interrupteur Marche / Arrêt (6) Sur. Dans cette position, le moteur électrique fonctionne, mais le cône (2) ne tourne pas.
  • Page 13 Avant d'effectuer toute intervention sur l'appareil, il doit être débranché du secteur à coup sûr. Des pièces de rechange: IMPORTANT: L'utilisation de pièces de rechange autres que les pièces d'origine certifiées Omcan est interdite. Cette machine ne nécessite aucun entretien particulier. Les roulements sont graissés à vie. Si une intervention est nécessaire pour remplacer les pièces d'usure, comme le cône, les composants électriques ou autres...

  • Page 14: Illustrated Diagrams

    Instructions Français Le moteur fonctionne, mais le cône ne tourne pas: • Vérifier l'état du cône (2) broches d'entraînement (9) (Fig. D). • Vérifier que l'embrayage fonctionne correctement (Fig E.): ○ Démarrez l'appareil, avec le commutateur à la position «1-On". ○...
  • Page 15 Illustrated Diagrams Position Item Position Item Position Item Pressure Lever Juice Container Cone On / Off Switch Glass Support Grid Pressing Cup Motor Unit Splash Guard Glass Holder...

  • Page 16: Parts Breakdown

    Parts Breakdown Model Santos 10 39687...
  • Page 17 Screw H M 5x12 Zn for Santos 10 40698 Gasket 12x22x5 for Santos 10 73702 Complete Rotor with Shaft for Santos 10 73157 Nut H M 4 Stainless Steel for Santos 10 Assembling Threaded Rod M5 for 73120 Friction Plate for Santos 10 73135 Santos 10...
  • Page 18 Parts Breakdown Model Santos 70 39685...
  • Page 19 Parts Breakdown Model Santos 70 39685 Item No. Description Position Item No. Description Position Item No. Description Position 40937 Complete Lever for Santos 70 73562 Deflector for Santos 70 44001 Bearing 6201 for Santos 70 Complete Cone Steering Axle for 73543 Cover for Santos 70 40941...

  • Page 20: Electrical Schematics

    Electrical Schematics Model Santos 10 39687 Model Santos 70 39685...

  • Page 21: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 22: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 23: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 24 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
