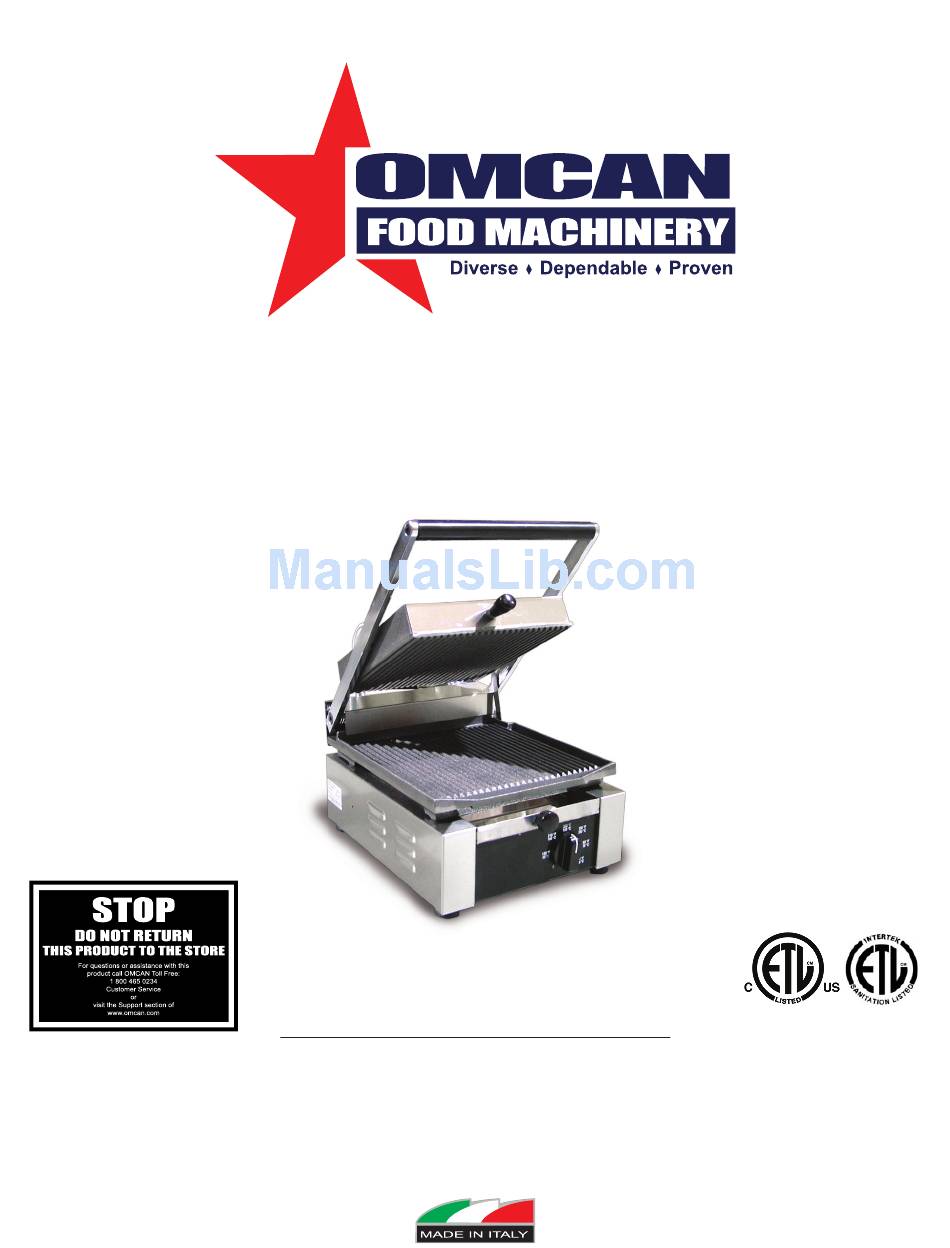

- Page 1 Sandwich Grill SG Series Instruction Manual Version 1 3115 Pepper Mill Court, Mississauga, ON, L5L 4X5 1-800-465-0234 4450 Witmer Industrial Estates, Unit 4, Niagara Falls, NY, 14305 www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model SG101 / Model SG301 / Model SG501 Model SG101FBR / Model SG501FBR Section Page General Information -------------------------------------------------------------------------------- 3 Safety & Warranty ------------------------------------------------------------------------------ 3 - 4 Technical Specifications -------------------------------------------------------------------------- 5 Installation --------------------------------------------------------------------------------------- 5 - 6 Operation ----------------------------------------------------------------------------------------- 7 - 8... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. - Page 4 A regular check of the electric supply cord is necessary; a worn-out or damage cord should not be used. • If the machine has malfunctions, do not use it and do not repair it; please call the Omcan Service Center at 1-800-465-0234.
-
Page 5: Technical Specifications

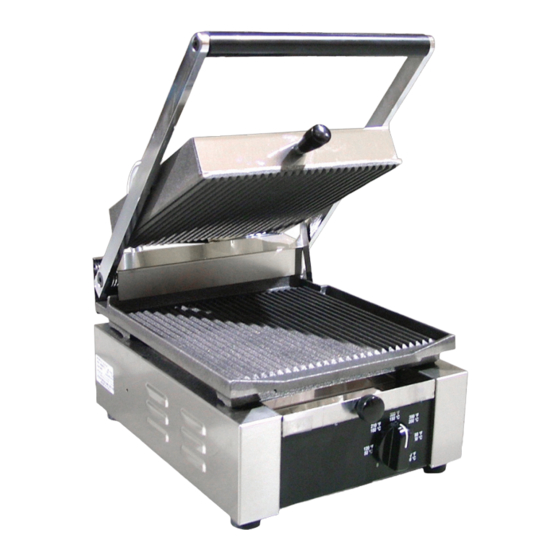

Technical Specifications MAIN COMPONENTS 1. Lower Cooking Grill 2. Thermostat 3. Pilot Lamp 4. Feet 5. Collection Tray 6. Upper Cooking Grill Fig. 1: Main components Item Number 11375 11376 11377 11378 11380 Length 10.25” 10.25” 15” 17.12” 20.25” Width 17.12”... -
Page 6: Installation
Installation Fig. 2: Unpacking components PACKAGING DISPOSAL The components of the packaging are urban solid waste; therefore they can be easily disposed. If the machine has to be installed in countries where specific regulations are in force, packaging must be disposed in compliance with them. -
Page 7: Operation
Operation To check the machine functioning, just turn the “start” regulator knob clockwise (placing yourself in front of the knob), and starting from the minimum, observe if the pilot lamp turns on. When the pilot lamp is on, it means that the machine is functioning. -
Page 8: Maintenance
Do not pour water or other liquids on the grid when it is hot, because the rapid changes of temperature can damage the grills surface. WARNING: Before performing any cleaning operation, turn off and disconnect the plug from the electrical socket. Periodically check whether the power cord is worn-out and, if this is the case, please call the Omcan Service... - Page 9 Maintenance Center at 1-800-465-0234 to have it replaced. DISPOSAL OF THE MACHINE If you decide to put the machine out of service, disconnect it from the socket. To dismantle the machine contact a Specialized Disposal Centre, paying attention to the different materials used.
-
Page 10: Parts Breakdowns
Parts Breakdown Model SG101 11375 Model SG101FBR 11376... - Page 11 Parts Breakdown Model SG101 11375 Model SG101FBR 11376 Description Position Description Position Description Position Big Handle Body Foot Small Handle On/Off Switch Plug and Lead Top Element Oil Tray Thermo Cut Out Top Cast Iron Indicator Light Wire Bottom Cast Iron...
- Page 12 Parts Breakdown Model SG301 11377...
- Page 13 Parts Breakdown Model SG301 11377 Description Position Description Position Description Position Big Handle Body Foot Small Handle On/Off Switch Plug and Lead Top Element Oil Tray Thermo Cut Out Top Cast Iron Indicator Light Wire Bottom Cast Iron Dial Bottom Element Thermostat...
- Page 14 Parts Breakdown Model SG501 11378 Model SG501FBR 11380...
- Page 15 Parts Breakdown Model SG501 11378 Model SG501FBR 11380 Description Position Description Position Description Position Big Handle Body Indicator Light Small Handle Thermo Cut Out Oil Tray Top Element Plug and Lead On/Off Switch Top Cast Iron Foot Wire Bottom Cast Iron Thermostat Bottom Element Dial...
-
Page 16: Electrical Schematics
Electrical Schematics Model SG101 11375 Model SG101FBR 11376 Model SG301 11377... - Page 17 Electrical Schematics Model SG501 11378 Model SG501FBR 11380...
-
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: www.omcan.com/warrantyregistration.html... - Page 20 Over the last 60 years, Omcan has grown to become a leading supplier to the food service industry in Canada and the USA. Our success over these many years is directly attributed to our established relationships with all of our valued customers and through providing them with Diverse, Dependable and Proven products.
