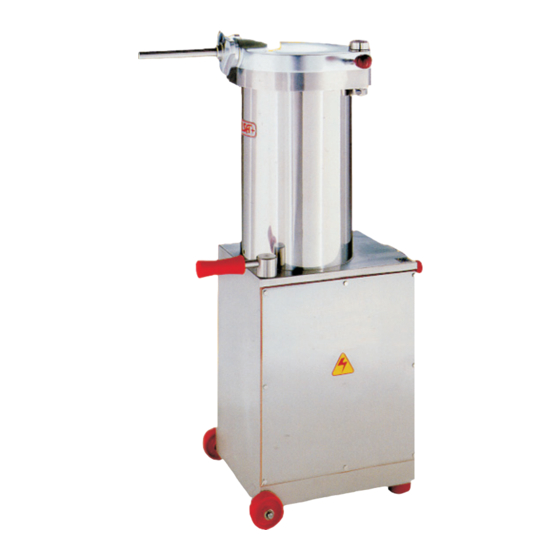

Omcan SS-ES-0015 Instruction Manual

Sausage stuffers items *13743, *13744, 41708, *13745, 13746, *13750, 13752, *13751, *13753, *41709, *13755, 13756, 13757, 13758, 13759, 17146
Hide thumbs Also See for SS-ES-0015:
Table of Contents

Advertisement

Quick Links

Download this manual

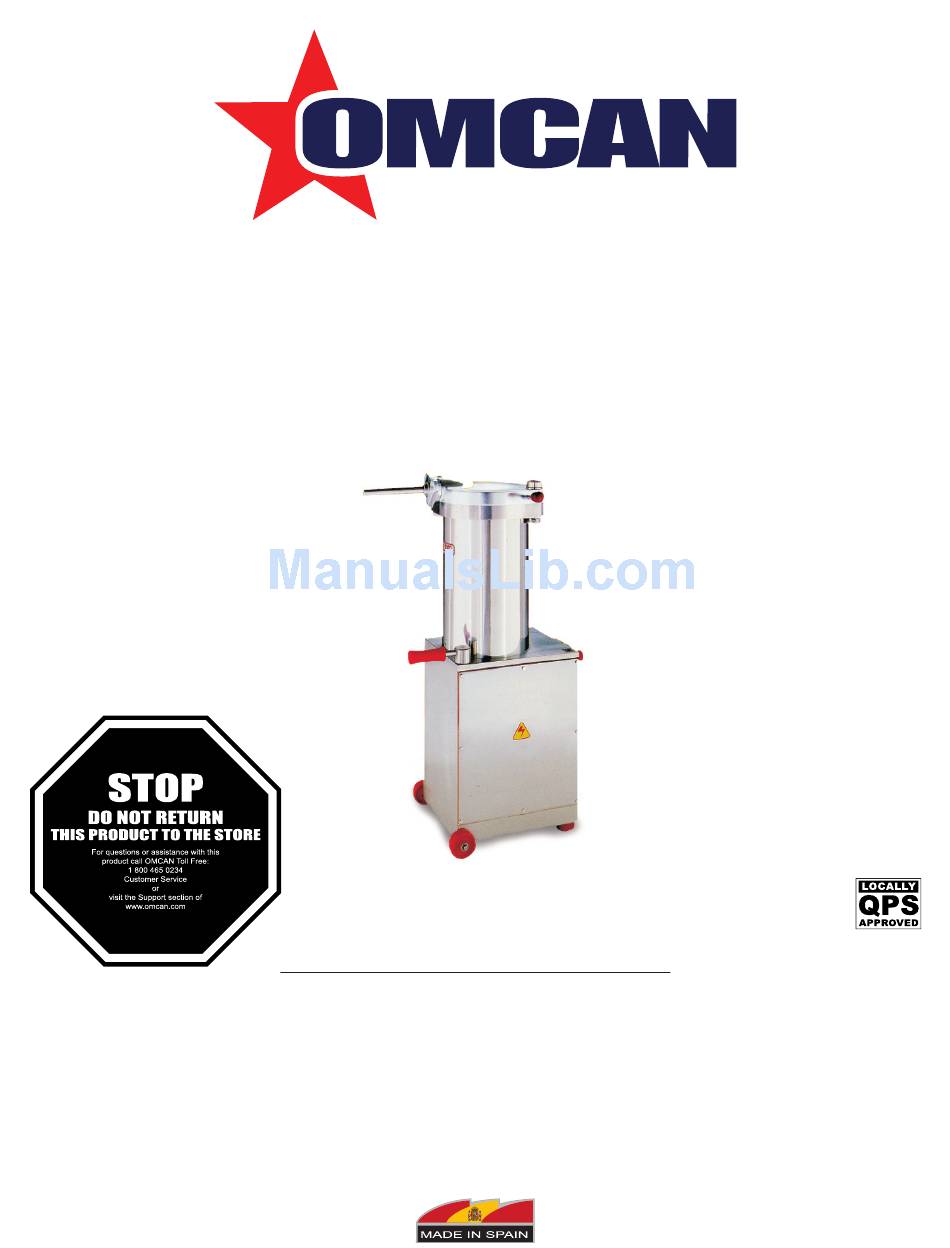

Sausage Stuffers
Models SS-ES-0015, 0020, 0026, 0031, 0042, 0052
Items *13743, *13744, 41708, *13745, 13746, *13750, 13752, *13751,
*13753, *41709, *13755, 13756, 13757, 13758, 13759, 17146
Instruction Manual
*
Revised - 12/07/2017
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS-ES-0015 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omcan SS-ES-0015

Summary of Contents for Omcan SS-ES-0015

  • Page 1 Sausage Stuffers Models SS-ES-0015, 0020, 0026, 0031, 0042, 0052 Items *13743, *13744, 41708, *13745, 13746, *13750, 13752, *13751, *13753, *41709, *13755, 13756, 13757, 13758, 13759, 17146 Instruction Manual Revised - 12/07/2017 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model SS-ES-0015-PA / Model SS-ES-0015-PAM / Model SS-ES-0020-PA Model SS-ES-0020-PAM / Model SS-ES-0026-PA / Model SS-ES-0026-PAM Model SS-ES-0026-PAS / Model SS-ES-0026-PASM / Model SS-ES-0031-PAS Model SS-ES-0031-PASM / Model SS-ES-0042-PAS / Model SS-ES-0042-PASM Model SS-ES-0052-PAS / Model SS-ES-0052-PASM...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 Safety and Warranty electrical wiring or components of the machine. • Do not use the machine without having received previous instructions about its use, maintenance and safety devices from an experienced operator. • Read the instruction manual carefully before using the machine. •...
  • Page 6 Changes in the nature of the food mixture if hygiene and cleaning instructions have not been followed. 1 YEAR PARTS AND LABOR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.

  • Page 7: Technical Specifications

    Technical Specifications Model Capacity Electrical Weight Item Number SS-ES-0015-PA 0.75 HP 33 lbs. 208V/60/3 223 lbs. 13743 220V/60/1 13744 SS-ES-0015-PAM 1.75 HP 33 lbs. 223 lbs. 110V/60/1 41708 SS-ES-0020-PA 0.75 HP 44 lbs. 208V/60/3 231.5 lbs. 13745 SS-ES-0020-PAM 1.75HP 44 lbs.

  • Page 8: Installation

    Installation of the barrel are totally clear; if not, the piston will not function properly. CONNECTING THE MACHINE Make sure the electrical characteristics of the machine (connection, voltage, and frequency) are suited to your power source. (These specifications are given in detail on the technical specifications sticker affixed to the machine itself;...

  • Page 9: Operation

    Installation CHANGING THE VOLTAGE ON A MODELS (AUTOMATIC-CONTACTOR) MOTOR: Open the connection terminal box of the motor by unscrewing the four screws. Loosen the six small nuts on the connection terminals and place the plates in the correct position. CONTACTOR: will need to be replaced by a qualified technician to a new one of same voltage than power supply.

  • Page 10: Useful Tips

    Operation diameter and shortest length possible) on the lid, locking it in place by turning the triangular nozzle nut. Prepare the proper amount of casing. • Push the knee lever all the way forward to the piston raising position. Always push the knee lever firmly; do not use it as a speed control regulator.

  • Page 11: Maintenance

    Maintenance CLEANING IMPORTANT: In order to avoid mechanical hazards during cleaning operations and piston dismantling, always open the lid completely when raising the piston. CLEANING INSTRUCTIONS To clean the outside of the machine use hot water and a mild cleanser. Do not use any abrasive products, especially those that could scratch warning stickers and labels.
  • Page 12 Maintenance barrel and screw the piston-locking bolt tight, making sure that the smaller gasket is properly placed. Raise and lower the piston, and tighten the piston locking bolt again, making sure it does not bend against the pressure of the lid. Grease the thread of the piston-locking bolt before replacing it; this will make future dismantling easier. When the machine is not in use, leave the piston head at the bottom of cylinder, where it will be submerged in hydraulic oil.
  • Page 13 Maintenance During maintenance and inspection operations always follow the safety instructions in this manual. Mechanical breakdowns caused by inadequate or improper maintenance can lead to high repair costs as well as work stoppages; therefore, regular and adequate maintenance is indispensable. The safety and life of the machine depend on many factors, including proper maintenance.
  • Page 14 Maintenance pressure at which the machine is run, the presence of humidity or residual water, etc. Normally it can last between 2.500 and 5.000 hours of service. If the oil loses viscosity, becomes impure, or turns a whitish color from having had water pumped into it, drain the oil by emptying the housing via the plug located at the bottom of the machine.

  • Page 15: Troubleshooting

    Maintenance with that selected for the motor, that the motor is not functioning with only two phases, that there is enough hydraulic oil, that there is no oil leakage from the hydraulic screws or pipes, and that the oil filter is clean and unobstructed.
  • Page 16 Troubleshooting Piston moves up and down but The air holes located at the base Clean air holes. machine seems to lack power. of the barrel are obstructed. Piston and piston gaskets are dirty. Clean piston and piston gaskets. Voltage of power source is not Call an electrician to change motor compatible with voltage selected voltage.

  • Page 17: Parts Breakdown

    Parts Breakdown Model SS-ES-0015-PA Model SS-ES-0026-PASM 13743 13753 Model SS-ES-0015-PAM Model SS-ES-0026-PASM 13744 41709 Model SS-ES-0015-PAM Model SS-ES-0031-PAS 41708 13755 Model SS-ES-0020-PA Model SS-ES-0031-PASM 13745 13756 Model SS-ES-0020-PAM Model SS-ES-0042-PAS 13746 13757 Model SS-ES-0026-PA Model SS-ES-0042-PASM 13750 13758 Model SS-ES-0026-PAM...
  • Page 18 Parts Breakdown Model SS-ES-0015-PA 13743 Model SS-ES-0015-PAM 13744/41708 Item No. Description Position Item No. Description Position Item No. Description Position Black Rubber Anti-Vibration Motor 36005 Aluminum Lid for H15 H200 19253 H222 36068 Aluminum Piston for H15 H244 Support for H15...
  • Page 19 Parts Breakdown Model SS-ES-0020-PA 13745 Model SS-ES-0020-PAM 13746 Item No. Description Position Item No. Description Position Item No. Description Position 36005 Aluminum Lid (only P Models) for H20 H200 64314 Hydraulic Pump for H20 H223 36068 Aluminum Piston for H20 H244 Bronze Bearing for Aluminum Lid P-Fixed 36013...
  • Page 20 Parts Breakdown Model SS-ES-0026-PA Model SS-ES-0026-PAS 13750 13752 Model SS-ES-0026-PAM Model SS-ES-0026-PASM 13751 13753/41709 Item No. Description Position Item No. Description Position Item No. Description Position 36078 Stainless Steel Lid Bolt Models HP 16536 Aluminum Lid (only P Models) for H26 H200 76787 Complete Hydraulic Cylinder for H26...
  • Page 21 Parts Breakdown Model SS-ES-0031-PAS 13755 Model SS-ES-0031-PASM 13756 Item No. Description Position Item No. Description Position Item No. Description Position Stainless Steel Lid Bolt Models HP 36085 Stainless Steel Lid for H31 H200 18285 Hydraulic Pump for H31 H223 16540 H243 for H31 Bronze Bearing for Stainless Steel Lid...
  • Page 22 Parts Breakdown Model SS-ES-0042-PAS 13757 Model SS-ES-0042-PASM 13758 Item No. Description Position Item No. Description Position Item No. Description Position Stainless Steel Lid Bolt Models HP 36086 Stainless Steel Lid for H42 H200 76803 Hydraulic Pump for H42 H223 36079 H243 for H42 Bronze Bearing for Stainless Steel Lid...
  • Page 23 Parts Breakdown Model SS-ES-0052-PAS 13759 Model SS-ES-0052-PASM 17146 Item No. Description Position Item No. Description Position Item No. Description Position Stainless Steel Lid Bolt Models HP 36087 Stainless Steel Lid for H52 H200 64315 Hydraulic Pump for H52 H223 36079 H243 for H52 Bronze Bearing for Stainless Steel Lid...

  • Page 24: Electrical Schematics

    Electrical Schematics Model SS-ES-0015-PA 13743 Model SS-ES-0020-PA 13745 Model SS-ES-0026-PA 13750 Model SS-ES-0026-PAS 13752 Model SS-ES-0031-PAS 13755 Model SS-ES-0042-PAS 13757 Model SS-ES-0052-PAS 13759...

  • Page 25: Electrical Schematics

    Electrical Schematics Model SS-ES-0015-PAM 13744/41708 Model SS-ES-0020-PAM 13746 Model SS-ES-0026-PAM 13751 Model SS-ES-0026-PASM 13753/41709 Model SS-ES-0031-PASM 13756 Model SS-ES-0042-PASM 13758 Model SS-ES-0052-PASM 17146...

  • Page 26: Notes

    Notes...

  • Page 27: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
