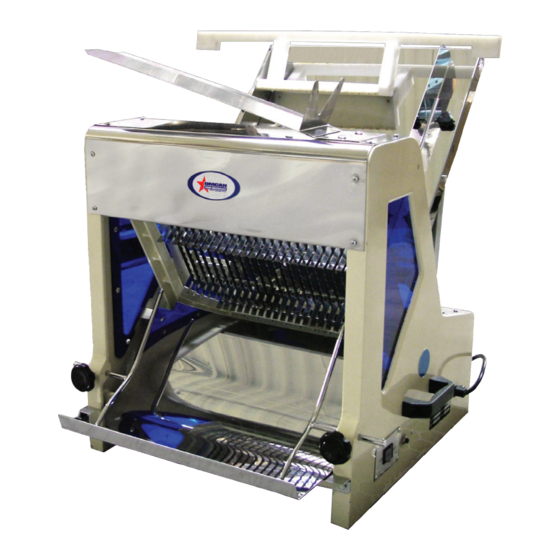

- Page 1 Bread Slicers Models SB-TW-0025, 0013, 0019, 0016, 0011 Items 10246, 10247, 10248, 10249, 10250 Instruction Manual Revised - 02/27/2017 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model SB-TW-0025 / Model SB-TW-0013 / Model SB-TW-0019 Model SB-TW-0016 / Model SB-TW-0011 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 5 Installation -------------------------------------------------------------------------------------------- 6 Operation --------------------------------------------------------------------------------------------- 6... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. -
Page 5: Technical Specifications
TIGHTEN THE GUIDE ADJUSTMENT. 1 YEAR PARTS AND LABOR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use. -
Page 6: Installation
Installation Open the crate and remove all materials used for packing as well as the accessories. Put the slicer on a stable table or counter and make sure the slicer is level. Each unit is set up to be used with the electrical supply specified on the nameplate fixed on the left side of the slicer. -
Page 7: Troubleshooting
If the slicer still does not slice properly, change the blade. REFERENCE Item Number Model Number Description Manufacturer Model Number Bread Slicer 1” / 25mm Thickness 10246 SB-TW-0025 SM3021 0.25 HP / 186 W 110V/60/1 Bread Slicer 0.5” / 13mm Thickness 10247 SB-TW-0013 SM30212 0.25 HP / 186 W 110V/60/1... -
Page 8: Parts Breakdown
Parts Breakdown Model SB-TW-0025 10246 Model SB-TW-0013 10247 Model SB-TW-0019 10248 Model SB-TW-0016 10249 Model SB-TW-0011 10250... - Page 9 Parts Breakdown Model SB-TW-0025 10246 Item No. Description Position Item No. Description Position Item No. Description Position 27137 Left Bracket for SM3021 20847 Left Guide Bar for SM3021 14764 Belt for SM3021 27138 Right Bracket for SM3021 20867 Right Guide Bar for SM3021...
- Page 10 Parts Breakdown Model SB-TW-0013 10247 Item No. Description Position Item No. Description Position Item No. Description Position 27137 Left Bracket for SM30212 20847 Left Guide Bar for SM30212 14764 Belt for SM30212 27138 Right Bracket for SM30212 20867 Right Guide Bar for SM30212 14765 Motor for SM30212 20840...
- Page 11 Parts Breakdown Model SB-TW-0019 10248 Item No. Description Position Item No. Description Position Item No. Description Position 27137 Left Bracket for SM30234 20847 Left Guide Bar for SM30234 14764 Belt for SM30234 27138 Right Bracket for SM30234 20867 Right Guide Bar for SM30234 14765 Motor for SM30234 20840...
- Page 12 Parts Breakdown Model SB-TW-0016 10249 Item No. Description Position Item No. Description Position Item No. Description Position 27137 Left Bracket for SM30258 20847 Left Guide Bar for SM30258 14764 Belt for SM30258 27138 Right Bracket for SM30258 20867 Right Guide Bar for SM30258 14765 Motor for SM30258 20840...
- Page 13 Parts Breakdown Model SB-TW-0011 10250 Item No. Description Position Item No. Description Position Item No. Description Position 27137 Left Bracket for SM302716 20847 Left Guide Bar for SM302716 14764 Belt for SM302716 27138 Right Bracket for SM302716 20867 Right Guide Bar for SM302716 14765 Motor for SM302716 20840...
-
Page 14: Electrical Schematics
Electrical Schematics Model SB-TW-0025 10246 Model SB-TW-0013 10247 Model SB-TW-0019 10248 Model SB-TW-0016 10249 Model SB-TW-0011 10250... -
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
