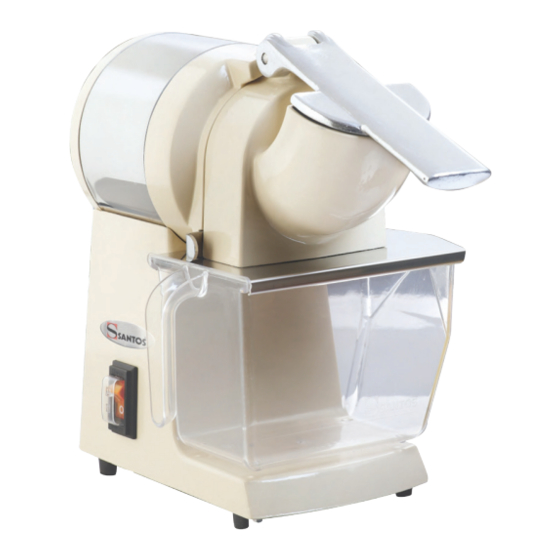

- Page 1 Santos Cheese Grater Model Santos 02 Item 40619 Instruction Manual Revised - 12/12/2017 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model Santos 02 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 6 Operation ----------------------------------------------------------------------------------------- 6 - 7 Maintenance ----------------------------------------------------------------------------------------- 8 Troubleshooting ------------------------------------------------------------------------------------- 9 Figure Drawings ------------------------------------------------------------------------------ 9 - 10... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 6: Technical Specifications
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications Model Santos 02 Electrical 100-120V / 60Hz / 1 Power 0.87 HP / 650W Current 5.4A... -
Page 7: Operation
Operation Note: removing the drawer (1) or lifting up the chute (3) stops the appliance from working (figure 6). For easier cleaning, do not leave food to dry in the drawer or on the grating disc. CHANGING DISC Push the end of the lever (4), pull on the closing key (14) and remove the chute + lever unit to get to the disc (6) (figure 2). -
Page 8: Maintenance
Maintenance Before carrying out any work on the appliance, it must in all cases be unplugged from the mains power supply and the motor start capacitor discharged. DISCHARGING THE CAPACITOR Use a screwdriver with insulated handle to touch the 2 connectors on the capacitor (12). The appearance of an electric arc shows that the capacitor has discharged. -
Page 9: Troubleshooting
Troubleshooting Identifying the cause of appliance stoppage precisely. THE APPLIANCE DOES NOT START: (FIGURE 6) • Check: the mains supply, the condition of the supply cord. • Check: the position of the drawer (1) on its slideway (2), the position of the lever (4) (no more than 2 cm outside the chute (3)). -
Page 10: Figure Drawings
Figure Drawings... -
Page 11: Parts Breakdown
Parts Breakdown Model Santos 02 40619... -
Page 12: Parts Breakdown
Grater Drawer for Santos 02 02502 Screw FS M4x10 Stainless Steel for 73630 Washer for Santos 02 02179 73655 Cap Nut H M 5 ZN for Santos 02 02336 73691 02503 Santos 02 Stainless Steel Motor Protector for 73631 Screw 4x8 ZN Auto for Santos 02... -
Page 13: Electrical Schematics
Electrical Schematics Model Santos 02 40619 No. Description No. Description Drawer. On-off switch. Slideway. Complete disc. Chute. Fastening screw. Lever. -
Page 14: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... -
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
