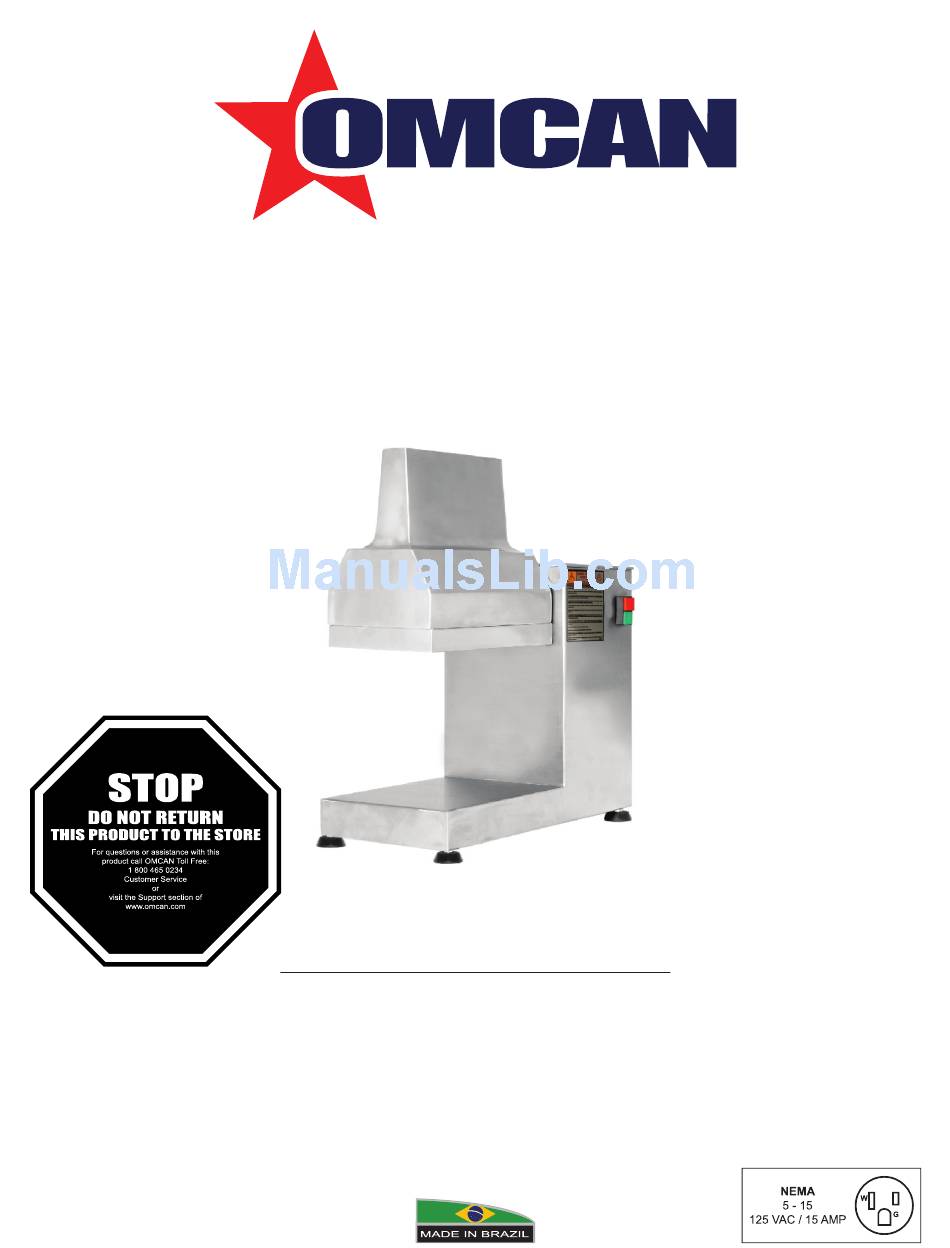

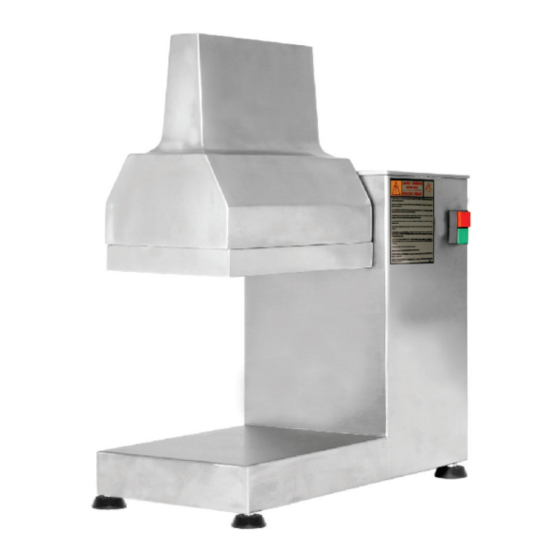

- Page 1 Meat Tenderizer Model MT-BR-0400 Item 17847 Instruction Manual Revised - 10/04/2016 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model MT-BR-0400 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications ---------------------------------------------------------------------- 7 - 8 Installation -------------------------------------------------------------------------------------------- 8 Operation --------------------------------------------------------------------------------------- 9 - 11 Maintenance --------------------------------------------------------------------------------------- 12 Troubleshooting ----------------------------------------------------------------------------------- 13... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Carefully read ALL INSTRUCTIONS of this manual before turning the machine ON. Make sure the operator is familiar with the appliance and understands all information contained in this manual. If you have any questions contact Omcan at 1-800-465-0234. DANGER A damaged power cable can cause damage to the unit or injury to the operator. Before every use, check the conditions of all wires and cables.
- Page 6 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 7: Technical Specifications
Technical Specifications 1. Protection Lid 1. Rollers Exterior 2. Rollers Support 2. Rollers 3. Motor Cabinet Cover 4. Motor Cabinet 5. ON/OFF Switch 1. Safety Switch 1. Protection Lid 2. ON/OFF Switch 3. Motor Cabinet... -
Page 8: Installation
Lid (Pic. 4, #1) is lifted. The meat tenderizer is a table top machine with the ability to process various different kinds of meat. NEVER USE FROZEN MEAT OR MEAT WITH BONES. Model MT-BR-0400 Horsepower Electrical 110V / 60Hz / 1... -
Page 9: Operation
Lid (Pic. 4, #1) MUST be fitted properly before every use. To start the machine press the ON/OFF Switch (Pic. 4, #2) placed on the cabinet side. Model MT-BR-0400 has a safety switch that does not allow the machine to work without the Protection Lid (Pic. - Page 10 Operation REMOVING AND REPLACING THE ROLLERS Removing the Rollers requires the full attention from the operator to avoid possible accidents. • Lift the Protection Lid (Pic. 1, #1). • Draw the Rollers key (Pic. 7, #1). • Lift the Rollers Extractor (Pic. 8, #1), first the backside, bending it to come out from the Rollers Support (Pic.
- Page 11 Operation 1. Rollers Extractor 1. Roller 1. Roller RECOMMENDATIONS Make sure your hair is tied up to avoid getting caught by turning parts which could lead to serious injury. The operation must be a trained or skilled personnel. Never touch turning parts with your hands or with any other objects.
-
Page 12: Maintenance
Maintenance AFTER FINISHING THE WORK After every operation, TURN THE MACHINE OFF by switching the machine OFF and removing the plug from the socket before cleaning the machine. Never clean the machine unless it has come to a complete stop. Put all components back to their functional positions before turning it ON again. -
Page 13: Troubleshooting
Troubleshooting The MT-BR-0400 was designed to operate with minimal maintenance but wearing caused by long use may cause some malfunctions. If such problem occurs with your meat tenderizer refer to the below table for the most common situations and their recommended solutions. -
Page 14: Parts Breakdown
Parts Breakdown Model MT-BR-0400 17847... - Page 15 Parts Breakdown Model MT-BR-0400 17847...
-
Page 16: Parts Breakdown
On/Off Switch for ABN-HD 26228.5 38077 Two Rollers for ABN-HD 32613.5 38093 Rubber Foot M8x15mm for ABN-HD 09627.0 30364 Omcan Logo (Machines) for ABN-HD 27154.3 38083 Rear Ring Roller 1 for ABN-HD 32614.3 38095 Screw M4x16 DIN 916 INOX for ABN-HD 10193.1 38097 Structure for ABN-HD 27160.8... -
Page 17: Electrical Schematics
Electrical Schematics Model MT-BR-0400 17847... -
Page 18: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... -
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
