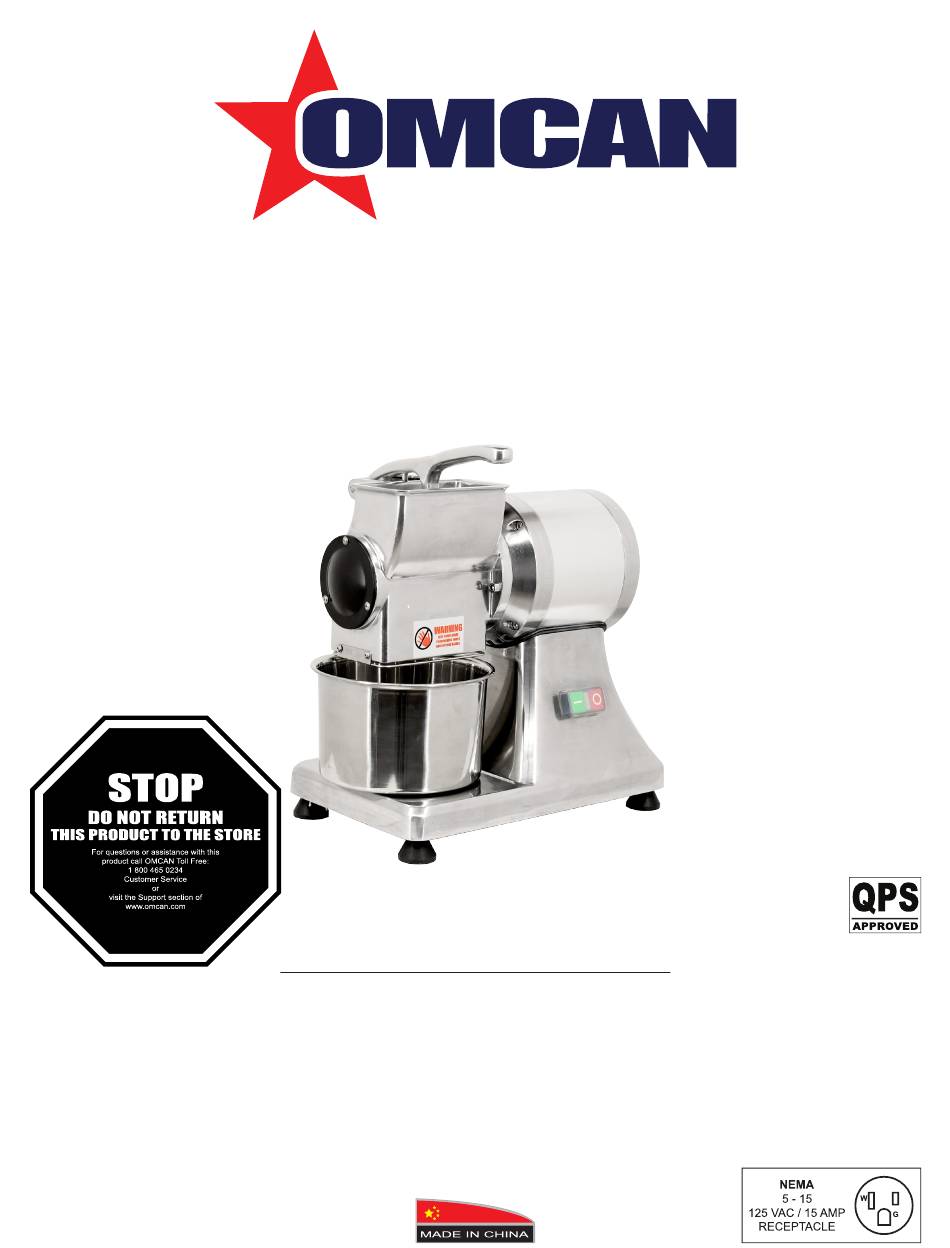

- Page 1 Cheese Grater Model GR-CN-0559 Item 23991 Instruction Manual Revised - 09/02/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model GR-CN-0559 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 7 Technical Specifications -------------------------------------------------------------------------- 8 Installation and Operation ------------------------------------------------------------------ 8 - 12 Maintenance --------------------------------------------------------------------------------- 12 - 14 Troubleshooting ----------------------------------------------------------------------------- 14 - 15... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 However, the user is responsible for damages resulting from not observing the specified normal use and conditions. For possible doubts you can enquire at Omcan. Failure to follow proper safety instructions can be dangerous and can cause damage or injury.
- Page 6 Safety and Warranty in the manual. WARNINGS ON THE RESIDUAL RISKS RESIDUAL RISK DUE TO THE FIXED PROTECTIONS REMOVAL, INTERVENTIONS ON BROKEN/WORN PARTS The operator must not try to open or remove a protection measure or tamper a safety device. In the phase of maintenance and cleaning, and during all further manual operations that happens to introduce the hands or other body parts in the machine’s dangerous areas, a residual risk remains due above all to:...
- Page 7 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 8: Technical Specifications
Technical Specifications Model GR-CN-0559 Power 0.75 HP / 0.56 kW Grater Revolution 1440 Mouth Dimensions 3.1” x 5.9” / 80 x 150mm Pan Size 6.3” / 160mm Electrical 110V / 60Hz / 1 Weight 39 lbs. / 17.6 kgs. Packaging Weight 40 lbs. - Page 9 Installation and Operation TRANSPORTATION, HANDLING AND STORING All transportation and handling operations must be performed by informed and trained personnel and must have read and understood the safety instructions shown in this manual. Perform the machine handling and transportation always when it is off; Verify that lifting means are use, it is able to support the loading weight and overall dimensions in safety conditions and that are approved and subjected to a regular maintenance,...
- Page 10 Installation and Operation FUNCTIONING DESCRIPTION The control devices are designed and manufactured to handle normal service stresses and strains. The control devices are clearly visible, locatable and marked distinctly. The main control devices are shown: TYPE / COLOUR REFERENCE / DESCRIPTION Button / Black “0”...
- Page 11 Possible changes in parts must happen with manufacturer original parts or at least of quality, safety and equivalent characteristics. For analysis, contact Omcan. PUT IN FUNCTION The machine operator can put in function the machine if: 1.
-
Page 12: Maintenance
Installation and Operation using the control device, turn to “0”. It is not recommended to run the machine without food in the grinder. SWITCHING OFF Switching off the machine is completed as follows: 1. Before switching off, wait until all food has exited the machine. 2. - Page 13 Maintenance EXTRAORDINARY MAINTENANCE In the event of breaks, revisions, mechanical and electrical damages, it is necessary to directly contact Omcan. The instructions for extraordinary maintenance does not appear in the instruction manual and must be explicitly requested to the manufacturer.
-
Page 14: Troubleshooting
In case of fuses intervention, the machine. change them with types of the same model, calibration and intervention curve. Grater handle lifted. The machine can be restarted by lowering the handle and closing the mouth of the machine. Cause(s) not Directly contact Omcan. identifiable. - Page 15 Start button is not Check the START button efficiently and if problem persists responding. contact Omcan. Thermal intervention Wait until completely cooled before restarting the machine. due to overheating. Damaged micro Directly contact Omcan. switch.
-
Page 16: Parts Breakdown
Parts Breakdown Model GR-CN-0559 23991... - Page 17 Parts Breakdown Model GR-CN-0559 23991 Item No. Description Position Item No. Description Position Item No. Description Position 31705 Plastic Cover for 23991 31720 Magnet for 23991 31738 Food Pan for 23991 31707 Pressing Cover for 23991 31721 Magnet Seat for 23991...
-
Page 18: Electrical Schematics
Electrical Schematics Model GR-CN-0559 23991... -
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
