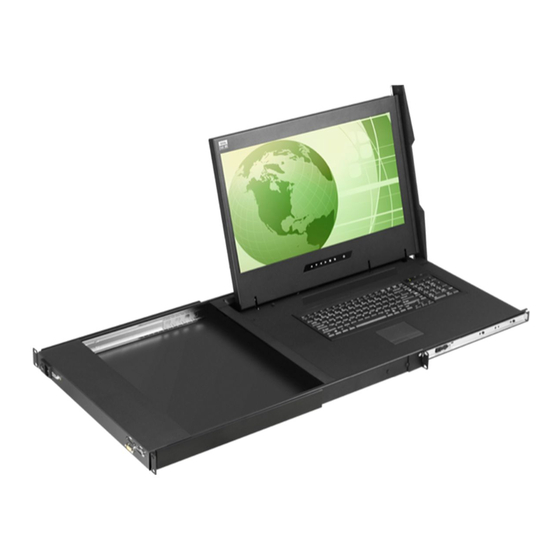

CyberView F121 User Manual

CyberView F121 User Manual

1u lcd console drawer 21.5” fhd 1920 x 1080
Hide thumbs Also See for F121:

Advertisement

Quick Links

dedicated KVM switch and rackmount screen technology
User Manual
21.5" FHD 1920 x 1080 LCD
F121
1U LCD Console Drawer
Options :
- HDMI / SDI
- Full Range KVM
- DC power
751
Designed and manufactured by Austin Hughes
UM-CV-751-F121-Q416V2
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F121 and is the answer not in the manual?

Questions and answers

Summary of Contents for CyberView F121

  • Page 1 KVM switch and rackmount screen technology User Manual 21.5” FHD 1920 x 1080 LCD F121 1U LCD Console Drawer Options : - HDMI / SDI - Full Range KVM - DC power Designed and manufactured by Austin Hughes UM-CV-751-F121-Q416V2...
  • Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-F121-Q416V2 www.austin-hughes.com...
  • Page 3: Table Of Contents

    Contents < Part. 1 > F121 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 Connection < Part. 2 > Specifi cations / OSD Product Specifi cations P.6 - 7 Keyboard / Mouse Specifi cations P.8 - 10 On-screen Display Operation ( OSD ) P.11 - 12...
  • Page 4: Before Installation

    fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-F121-Q416V2 www.austin-hughes.com...
  • Page 5: Part. 1 > F121

    < Part 1 > < 1.1 > Package Content F121 F121 unit X 1 - CX-6 6ft DVI-D console cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models.
  • Page 6 Weight 441.6 x 670 x 44 mm 595 x 860 x 140 mm 14.7 kg 18.9 kg F121 17.4 x 26.4 x 1.73" 23.4 x 33.9 x 5.5” 32.3 lb 41.6 lb The weight is only for the single console models. It varies with accessories & options such as KVM, SDI, HDMI &...
  • Page 7: Installation

    < 1.3 > Installation - How to install Installation Slides F121 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length.
  • Page 8 Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. Option - Right Side Open ■ at the end of the model no. Flip up LCD from the side sample : F121R Panel Left Right Front Side UM-CV-751-F121-Q416V2 www.austin-hughes.com...
  • Page 9: Connection

    < 1.4 > Connection to USB Server via CX-6 cable F121 LCD Console Drawer Power DVI-D KB / MS CX-6 DVI-D console cable DVI-D USB server < 1.4 > Connection to external KVM via CX-6 cable LCD Console Drawer Power...
  • Page 10: Product Specifi Cations

    Operating Temperature 0 to 55°C degree Environmental Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random UM-CV-751-F121-Q416V2 www.austin-hughes.com...
  • Page 11 F121 Product ( W x D x H ) 441.6 x 670 x 44 mm Physical Specifi cation 17.4 x 26.4 x 1.73 inch Packing ( W x D x H ) 595 x 860 x 140 mm 23.4 x 33.9 x 5.5 inch Net Weight 14.7 kgs / 32.3 lbs...
  • Page 12: Keyboard / Mouse Specifi Cations

    > 10 million life cycle time Switch life Windows / Linux / Unix / Mac OS OS support Supporting layouts America United States United Kingdom Germany France Spain Norway EMEA Italy Russia Switzerland Netherlands Portugal Asia China Japan Korea Arabia Turkey UM-CV-751-F121-Q416V2 www.austin-hughes.com...
  • Page 13 < 2.2 > MAC Keyboard / Mouse Options F121 MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound...
  • Page 14 Audio / Display Keys * Please ask your supplier for full details Audio : Mute Audio : Decrease volume Display : Degauss Display : Decrease contrast Audio : Increase volume Display : Increase contrast P.10 UM-CV-751-F121-Q416V2 www.austin-hughes.com...
  • Page 15: On-Screen Display Operation ( Osd )

    < 2.3 > On-screen Display Operation ( OSD ) F121 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control...
  • Page 16 H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc: for the language, OSD position, graphic mode, ratio, reset and timer P.12 UM-CV-751-F121-Q416V2 www.austin-hughes.com...
  • Page 17 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
  • Page 18: Part. 3 > Options

    KB / MS For DC power option : ( 1 ) DC option excludes AC power adapter and power cord. ( 2 ) Casing depth will be extended from 670mm ( 26.4" ) to 720mm ( 28.3" ) P.14 UM-CV-751-F121-Q416V2 www.austin-hughes.com...
  • Page 19: Part. 4 > Kvm Integration

    (W x D x H) (W x D x H) 441.6 x 770 x 44 mm 595 x 860 x 140 mm 15.5 kg 21.4 kg F121 with KVM 17.4 x 30.3 x 1.73" 23.4 x 33.9 x 5.5” 34.1 lb 47.1 lb P.15 UM-CV-751-F121-Q416V2 www.austin-hughes.com...
  • Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2016 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-F121-Q416V2 www.austin-hughes.com...
