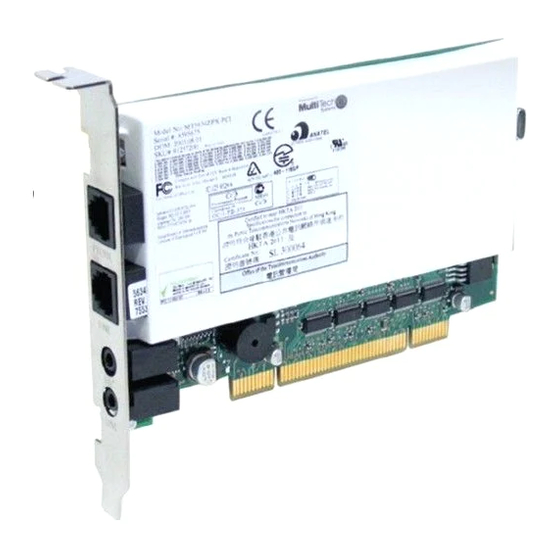

Multi-Tech MT5634ZPX-PCI User Manual

Internal data/fax/voice modem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model MT5634ZPX-PCI
Internal Data/Fax/Voice Modem
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Multi-Tech MT5634ZPX-PCI

Summary of Contents for Multi-Tech MT5634ZPX-PCI

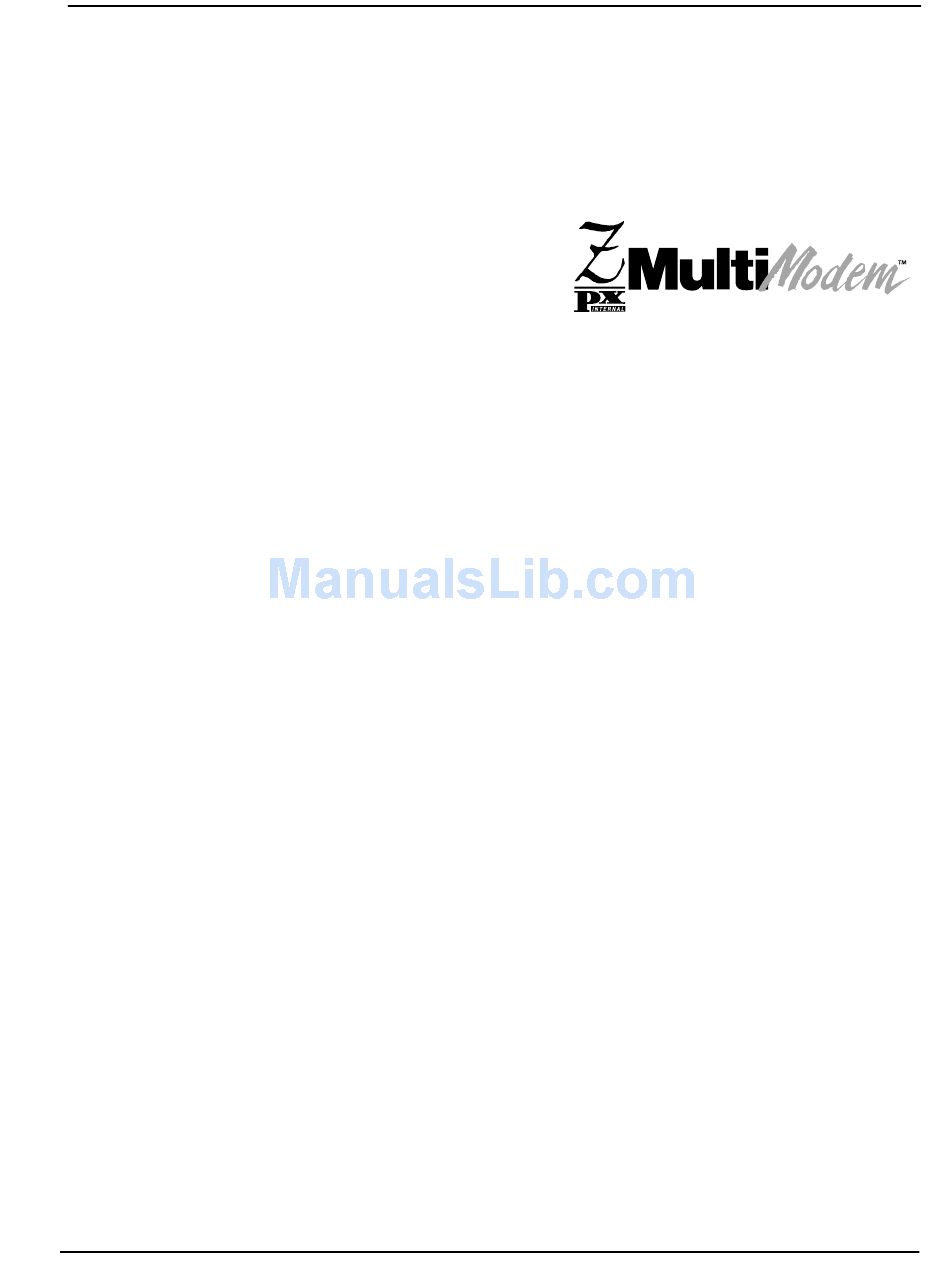

  • Page 1 Model MT5634ZPX-PCI Internal Data/Fax/Voice Modem User Guide...
  • Page 2 Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revisions or changes.

  • Page 3: Table Of Contents

    Contents Chapter 1 - Introduction and Description Introduction ..............................6 Product Description ............................ 6 Peripheral Component Interconnect (PCI) ....................6 Manual Organization ..........................7 Features ..............................8 Technical Specifications ..........................9 Chapter 2 - Hardware Installation Installation Overview ..........................13 Unpacking your MultiModemZPX-PCI ......................
  • Page 4 Chapter 6 - Troubleshooting Introduction to Troubleshooting ........................ 75 Initial Checklist ........................... 75 Common Problems ..........................75 Chapter 7 - Warranty, Service, and Technical Support Introduction .............................. 81 Limited Warranty ..........................81 Online Warranty Registration ......................81 Technical Support ............................. 81 Service ..............................

  • Page 5: Chapter 1 - Introduction And Description

    Chapter 1 - Introduction and Description...

  • Page 6: Introduction

    Corporation , the Peripheral Component Interconnect (PCI) bus used by your MT5634ZPX-PCI provides high performance and is easy to use. Because PCI devices contain registers with the device information required for configuration, full auto configuration of PCI Local Bus add-in boards and components is supported.

  • Page 7: Manual Organization

    Chapter 7: Warranty, Service and Technical Support. This chapter provides information on the terms of your warranty and describes how to get help with your modem from Multi-Tech Systems Technical Support group. Appendices Appendix A: Regulatory Compliance Appendix B: Updating Your Modem’s Firmware...

  • Page 8: Features

    Full duplex speakerphone support with adjustable speaker volume control; can record and play back answering machine messages using optional microphone and speaker • Remote/local telephone answering machine (TAM) capabilities include voice mail control, record/playback, and call screening • Supports the TIA/EIA IS-101 AT+V voice command set MT5634ZPX-PCI...

  • Page 9: Technical Specifications

    1 Introduction and Description Technical Specifications Trade Name MultiModemZPX Model Number MT5634ZPX-PCI Client-to-Server Data Rates V.90/K56flex* speeds when accessing an ISP-type V.90/ K56flex server (actual speed depend on server capabilities and line conditions) Client-to-Client Data Rates Enhanced V.34 speeds to 33,600 plus 31,200, 28,800,...
  • Page 10 Two RJ-11 phone jacks and two plugs for microphone, and speakers Cables One RJ-11 phone cable Environmental Temperature range 0° to 50° C (32° to 120° F), humidity range 20–90% (non-condensing) Power Requirements 150 mA @ 5 VDC; 5 mA @ ±12 VDC MT5634ZPX-PCI...
  • Page 11 0.7" W × 4.8" H × 5.8" L 1.8 cm × 12.2 cm × 14.7 cm Operating Systems At the time of this printing, the MT5634ZPX-PCI has been tested for use with Windows 95, 98, NT and 2000, Linux (2.2.x kernal) and SCO OpenServer 5.0.x.

  • Page 12: Chapter 2 - Hardware Installation

    Chapter 2 - Hardware Installation...

  • Page 13: Installation Overview

    • Communications software. • One brochure with a warranty card. If any one of these items is missing, please contact Multi-Tech Systems or your dealer/ distributor. What You’ll Need Before you start, make sure you have everything you need: •...

  • Page 14: Safety Warnings

    3. Select an empty PCI expansion slot. Remove the expansion slot cover and save the retaining screw. 4. Before handling the MT5634ZPX-PCI, discharge static in your body by touching a metal piece of the computer chassis. Carefully remove the MultiModemZPX-PCI from its antistatic bag, handling it only by the mounting bracket and edges.

  • Page 15: Connecting Your Modem

    LINE MIC IN LINE OUT MT5634ZPX-PCI 1. Plug one end of the supplied modular telephone cable into the LINE jack. 2. Plug the other end of the telephone cable into a working wall jack. 3. You may connect a telephone to the modem’s PHONE jack.
  • Page 16 (e.g., one on each side of the monitor). Make sure speakers are amplified with a power source (either a battery or electrical source). Plug the connector of both microphones into the MIC IN jack of the Sound Card and the MT5634ZPX-PCI. MT5634ZPX-PCI...

  • Page 17: Chapter 3 - Software Installation

    Chapter 3 - Software Installation...

  • Page 18: Installing Drivers

    Installing Drivers Windows 95 After installing the MT5634ZPX-PCI in your computer, turn the computer power on and allow Windows 95 to start up. As your computer boots, it automatically detects the MultiModemZPX-PCI, and the New Hardware Found dialog box displays.

  • Page 19: Windows 98

    3 Software Installation Windows 98 After installing the MT5634ZPX-PCI modem in your computer, you are ready to turn the computer power on and allow Windows 98 to start up. Windows 98 automatically detects the MultiModemZPX-PCI modem, and the New Hardware Found message box appears.
  • Page 20 User Guide Changing your Windows 95/98 COM port assignment Unlike an external modem, the MT5634ZPX-PCI contains its own serial port. When Windows detects the MultiModem adapter, it assigns the next available COM port to it. Since COM1 through COM4 are standard serial ports in Windows computers, Windows 95/98 typically assigns COM5 to the modem’s serial port.
  • Page 21 7. When the Modems Properties dialog box displays, click the Diagnostics tab. A list of ports and devices appears. 8. Highlight the COM port associated with the Multi-Tech MT5634ZPX-PCI. Click More Info. Clicking More Info causes Windows to send commands to and receive responses from the modem.

  • Page 22: Windows Nt

    Also, you must be logged on to your system with Administrative privileges which allow you to add and remove devices. 1. After installing the MT5634ZPX-PCI adapter in your computer, turn the computer power on and allow Windows NT to start.
  • Page 23 If one or more modems have been previously installed, the Modems Properties dialog box displays. 2. In the Modems Properties dialog box Click Add. 3. The Install New Modem dialog box displays. Check Do not detect my modem; I will select it from a list. Click Next>. MT5634ZPX-PCI...
  • Page 24 (e.g., D:\). Insert the System CD into the CD-ROM drive and click OK. 6. In the Modem or Adapter dialog box, select the Multi-Tech System’s MT5634ZPX- PCI device installed on the COM port identified by the Windows NT Setup Utility (see Step 7 on page 22).
  • Page 25 Remote Access Setup 1. The Remote Access Setup dialog box displays. Click Add. 2. The Add RAS Device dialog box displays. Select Multi-Tech System’s MT5634ZPX- PCI from the list box. Click OK. 3. From the Remote Access Setup dialog box, select Multi-Tech System’s MT5634ZPX and click Configure.
  • Page 26 You may also view configuration information under NT’s Remote Access Services, by clicking Start | Settings | Control Panel. Double-click the Network tab. Click the Services tab, Highlight Remote Access Services and then click Properties. The list of modems and associated COM ports displays. MT5634ZPX-PCI...

  • Page 27: Windows 2000

    2. In the Install Hardware Device Drivers dialog box, select Search for a suitable driver for my device. Press Next>. 3. The Driver Files Search Results dialog box displays. Select the CD-ROM drives check box. 4. Insert the MT5634ZPX-PCI System CD into the CD-ROM drive and click Next>. MT5634ZPX-PCI...
  • Page 28 1. Click Start | Settings | Control Panel. Double-click Phone and Modem Properties. 2. On the Phone and Modem Properties dialog box, click the Modems tab. 3. From the Modem tab, select the Multi-Tech Systems MT5634ZPX-PCI and click the Properties button to display information about your modem settings.
  • Page 29 Click Finish to complete the removal of the device. Note: If you are removing a Plug and Play device from Windows 2000, you must physically remove the device from the computer or Windows 2000 will request driver installation each time the system starts. MT5634ZPX-PCI...

  • Page 30: Linux

    4. Once you’ve completed your installation, you must configure your modem for country-specific operation. Refer to Chapter 5 for information on using AT Commands to configure your modem for use in your country. MT5634ZPX-PCI...

  • Page 31: Sco Openserver

    3 Software Installation SCO OpenServer This procedure was based on SCO OpenServer 5.0.x. After installing the MT5634ZPX-PCI into an open PCI slot in your computer, let the system start up. 1. Log in as root. 2. Determine the port address and IRQ for the modem by typing: hw -r pci To output the port address and IRQ information to a file, type: hw -r pci>pci.txt...

  • Page 32: Initial Setup & Country Selection

    If you are using a non-Windows operating system, the modem must be configured using AT Commands (see Chapter 5). If you are using Windows 95, 98, NT or 2000, Multi-Tech’s Global Wizard offers a quick and easy method for configuration. Detailed information about the Global Wizard can be found in Appendix C of the User Guide.

  • Page 33: Chapter 4 - Using Your Modem

    Chapter 4 - Using your Modem...

  • Page 34: Introduction

    S-register explanations and defaults. Operating Your MultiModemZPX-PCI Your MT5634ZPX-PCI can be controlled by issuing AT commands and setting S- Registers. Since your MultiModemZPX-PCI default settings use a traditional modem set to make a dial-up call to a remote installation where the call is answered automatically—...
  • Page 35 3. If you are using legacy software or if you have more than one modem installed, choose the appropriate model number for the modem (e.g., Multi-Tech MT5634ZPX- PCI) from the software’s modem list. If your model number isn’t listed, in Windows 95, choose a generic V.34 modem.
  • Page 36 User Guide with Windows 95 or Windows 98, make these changes in the How I dial from this location box of Dialing Properties). Note: *70 is used only in the United States. MT5634ZPX-PCI...

  • Page 37: Configuring Windows Dial-Up Networking

    2. If this is the first time you have set up a connection with Dial-Up Networking, the Welcome to Dial-Up Networking Wizard dialog box displays. If the Wizard does not display, double-click the Make New Connection icon to display the Make New Connection dialog box. MT5634ZPX-PCI...
  • Page 38 User Guide 3. In the Make New Connection dialog box, enter a descriptive name for this connection. In the Select a device list box, select your Multi-Tech System modem. Click Next>. 4. Next, enter the Area code, Telephone number and Country code for the computer you will be calling with this connection (your ISP’s access phone number).
  • Page 39 If your ISP requires you to enter an IP address for their Domain Name Server (name server), select Specify name server addresses and enter the IP addresses given to you by your ISP. Click OK to save the TCP/IP values and return to the Server Types tab. MT5634ZPX-PCI...
  • Page 40 10. When you have completed customizing the modem properties for this connection, click OK. To use this connection, double-click the Dial-Up Connection icon within the Dial-Up Networking folder. If prompted, enter your Internet account User Name and Password and click Connect. MT5634ZPX-PCI...

  • Page 41: Windows Nt Dial-Up Networking

    IP address for your computer or their Domain Name Server, select the third option. Click Next>. 5. The Modem or Adapter dialog box displays. Highlight the Multi-Tech System modem you are using for this connection. Click Next>. MT5634ZPX-PCI...
  • Page 42 Close to close the Dial-Up Networking configuration dialog box. If you choose to dial your ISP and your Internet account requires you to enter a User Id and Password, enter this information in the boxes provided and click OK to complete the connection. MT5634ZPX-PCI...
  • Page 43 If you need to return to a connection definition to make changes in the future, click Start | Programs | Accessories | Dial-Up Networking. Use the Phonebook entry to dial list to select the entry you’d like to change. Click More | Edit entry and modem properties. Alter your configuration and save the changes. MT5634ZPX-PCI...

  • Page 44: Windows 2000 Dial-Up Networking

    Select the option which best describes the type of connection you are creating with this definition. Click Next>. The process for completing your Dial-Up Networking connection will vary based on the connection type selected in the previous step. MT5634ZPX-PCI...
  • Page 45 Click Next>. c. If you have only one modem installed, proceed to the next step. If you have more than one modem installed on your computer, select your Multi-Tech System’s modem from the list and click Next>.
  • Page 46 In the Networking Components dialog box, select the boxes next to the name of each networking component you want to enable for incoming connections. Click Next>. e. The Completing the Network Connection Wizard displays. In the box provided, enter a meaningful name for this connection and click Finish. MT5634ZPX-PCI...
  • Page 47 Create this connection only for myself. Click Next> to continue. e. The Competing the Network Connection Wizard dialog box displays. You are prompted for a name to use for this connection. Enter a meaningful name in the field provided and click Finish. MT5634ZPX-PCI...

  • Page 48: Testing Your Modem

    3. Complete and submit the form. Testing Fax Functions Test your modem’s fax capabilities by sending a fax to Multi-Tech or to a fax machine in your office. Windows 95, 98 and 2000 include a faxing application. If you are using Windows NT and want to fax from your computer, you will need to install a third party faxing application.

  • Page 49: Multimodemzpx-Pci's Answering Machine Test

    In Microsoft Exchange, select Compose and then New Fax. MultiModemZPX-PCI’s Answering Machine Test Test the MultiModemZPX-PCI’s voice function by using the included software to set up the MultiModemZPX-PCI as a telephone answering machine. Have a friend call and leave a message; then play it back. MT5634ZPX-PCI...

  • Page 50: Remote Configuration

    Remote configuration is a network management tool that allows you to configure modems anywhere in your network from one location. With password-protected remote configuration, you can issue AT commands to a remote MT5634ZPX-PCI modem for maintenance or troubleshooting as if you were on-site.
  • Page 51 3. Save the new value by typing AT&W and pressing Enter. 4. Type ATO, followed by pressing the Enter key to exit remote configuration. MT5634ZPX-PCI...

  • Page 52: Chapter 5 - At Commands, S-Registers, And Result Codes

    Chapter 5 - AT Commands, S-Registers, and Result Codes...

  • Page 53: Introduction

    5 AT Commands, S-Registers and Result Codes Introduction This chapter lists and summarizes AT commands for Multi-Tech’s MT5634ZPX-PCI adapter. AT commands are used to control the operation of your modem. They are so called because each command must be preceded by the characters AT to get the AT tention of the modem.
  • Page 54 *For a current list of approved countries and hex codes, visit: www.multitech.com/GlobalModem **Countries with approvals for the MT5634ZPX-PCI modem (at the time of this printing) include: Austria, Belgium, Canada, Cyprus, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Liechtenstein, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden,Switzerland, U.K., United States...
  • Page 55 1. Click Start | Settings | Control Panel. 2. Double-click the Phone and Modem Options icon. 3. On the Modems tab, click the modem you want to configure. 4. Click Properties. 5. Enter your AT commands in the Extra Initialization commands box. MT5634ZPX-PCI...

  • Page 56: At Commands

    Select Bell 212A when modem is at 1200 bps Deselect V.23 reverse channel (same as B3) Deselect V.23 reverse channel (same as B2) Select V.21 when the modem is at 300 bps Select Bell 103J when the modem is at 300 bps MT5634ZPX-PCI...
  • Page 57 Dial a number previously stored in directory number n by the &Zn=x command . Example: ATDS=3 Command: E n Echo Command Mode Characters n = 0 or 1 Values: Default: Description: Do not echo keyboard input to the terminal. Do echo keyboard input to the terminal. MT5634ZPX-PCI...
  • Page 58 Command: M n Monitor Speaker Mode Values: n = 0, 1, 2, or 3 Default: Description: Speaker always off. Speaker on until carrier signal detected. Speaker always on when modem is off-hook. Speaker on until carrier is detected, except while dialing. MT5634ZPX-PCI...
  • Page 59 Command: T Select Tone Dialing Values: Default: Description: This command instructs the modem to send DTMF tones while dialing. Dialed digits are tone dialed until a P command or dial modifier is received. This is the default setting. MT5634ZPX-PCI...
  • Page 60 Basic result codes with NO DIALTONE and BUSY . Command: Y n Long Space Disconnect Values: n = 0 Default: Description: Disable sending or responding to long space break signal on disconnect. Enable sending or responding to long space break signal on disconnect. (Not supported.) MT5634ZPX-PCI...
  • Page 61 V.22bis Guard Tone Control Values: n = 0, 1, or 2 Default: Description: &G0 Disable guard tone. &G1 Enable 550 Hz guard tone. &G2 Enable 1800 Hz guard tone. Note: Guard tones are not used in North America. Default value =0. MT5634ZPX-PCI...
  • Page 62 = 0, 1, 3 or 6 Default: None Description: &T0 Abort. Stop any test in progress. &T1 Local analog loop test. &T3 Local digital loopback test. &T6 Remote digital loopback test. Command: &V View Current Configuration Values: Description: Displays the active modem settings. MT5634ZPX-PCI...
  • Page 63 OK if n = 0-3. ERROR if n not equal to 0-3. 64 Character maximum. 128 Character maximum. 192 Character maximum. 256 Character maximum. Command: \G n Modem Port Flow Control Values: n = 0 Default: Returns an OK for backward compatibility with Description: some software. Not supported—responds ERROR. MT5634ZPX-PCI...
  • Page 64 S-Register S30 value (e.g., AT\T45&W0<cr> configures in parallel ATS30=45&W0<cr>) and vice versa. Command: \V n Protocol Result Code n = 0 or 1 Values: Default: Description: Disable protocol result code appended to DCE speed. Enable protocol result code appended to DCE speed. MT5634ZPX-PCI...
  • Page 65 Disables fallback and fall forward. Enables fallback, disables fall forward. Enables fallback and fall forward Default Command: #S= x Store Setup Password Values: 1-8 characters, case sensitive Default: MTSMODEM x = password Description: Stores a new remote configuration setup password. MT5634ZPX-PCI...

  • Page 66: Fax Commands

    Developers who need to know the fax commands for the MT5634ZPX-PCI can download the following guides from the Multi- Tech FTP site: MT56XX Fax Class 1 Developer’s Guide...

  • Page 67: S-Registers

    S-Registers are sections of memory in which values are stored that affect how the MT5634ZPX-PCI operates. S-Registers are so called because each has a name that begins with the character S. Use the S command to assign a value or to read the current value of an S-Register.
  • Page 68 S-Register: S11 Unit: 1ms Range: 50-150* Default: 95* Description:Sets spacing and duration of dialing tones. S-Register: S28 Unit: decimal Range: 0, 1-255 Default: 10 Description:0 disables, 1–255 enables V.34 modulation. Note: * These values may be different outside North America. MT5634ZPX-PCI...
  • Page 69 10 = 12000 bps 11 = 14400 bps 12 = 16800 bps 13 = 19200 bps 14 = 21600 bps 15 = 24000 bps 16 = 26400 bps 17 = 28800 bps 18 = 31200 bps 19 = 33600 bps MT5634ZPX-PCI...
  • Page 70 0 = disable; 1 = enable. S-Register: S43 Unit: decimal Range: 0-1 Default: 1 Description: For testing and debugging only. Enables/disables V.32bis start-up auto mode operation. 0 = disable; 1 = enable. Note: * These values may be different outside North America. MT5634ZPX-PCI...
  • Page 71 Description:Sets one of three 56K operating modes: K56flex mode, V.90 mode, or Auto- mode. V.90 disabled K56flex or V.90 (Dual-mode enabled) V.90 only (K56flex disabled). Forces V.90 connections for testing purposes, etc. Note: * These values may be different outside North America. MT5634ZPX-PCI...

  • Page 72: Result Codes

    User Guide Result Codes While in command mode, if the MT5634ZPX-PCI receives an AT command from the computer or terminal, it attempts to execute the command. It then sends a status message to the computer or terminal reporting the result of the command. The...
  • Page 73 V42bis (V.42 error control [LAP-M] and V.42bis data compression) V42 (V.42 error control [LAP-M] only); MNP5 (MNP 4 error control and MNP 5 data compression) MNP4 (MNP 4 error control only); NoEC (No error control protocol). MT5634ZPX-PCI...

  • Page 74: Chapter 6 - Troubleshooting

    Chapter 6 - Troubleshooting...

  • Page 75: Introduction To Troubleshooting

    The following checklist will help to ensure the modem has been properly set up. At the time of this printing, the MT5634ZPX-PCI modem had been tested to work with Microsoft Windows 95, 98, NT and 2000, Linux (2.2.0 kernal) and SCO OpenServer 5.0.x operating systems.
  • Page 76 Narrow the list of possibilities by using extended result codes. If you disabled the modem’s extended result codes, enable them by entering ATV1X4 in a terminal window and press Enter. When you dial again, the modem reports the call’s progress. MT5634ZPX-PCI...

  • Page 77: The Modem Disconnects While Online

    As an example, in Windows 95/98, select Start | Settings | Control Panel, and then Modems. In the Modems Properties sheet, select the appropriate modem model number (e.g., Multi-Tech MT5634ZPX-PCI), click Dialing Properties and type 9 in the local and long distance boxes in the How I dial from this location box.
  • Page 78 User Guide Multi-Tech MT5634ZPX-PCI , click Dialing Properties. Check This location has call waiting and select the correct code for your phone service. Note: *70 is used only in the United States. • If you have extension phones on the same line as your modem, you or someone else can interrupt the connection by picking up another phone.
  • Page 79 If you are using legacy communications software with Windows, you may get a message that another application is occupying the device even when no call is in progress. Close any open legacy communications programs and try again. MT5634ZPX-PCI...

  • Page 80: Chapter 7 - Warranty, Service, And Technical Support

    Chapter 7 - Warranty, Service, and Technical Support...

  • Page 81: Introduction

    Multi-Tech has an excellent staff of technical support personnel available to help you get the most out of your Multi-Tech product. If you have any questions about the operation of this unit, please call (800) 972-2439 (USA and Canada) or (763) 785-3500 (local and international).

  • Page 82: Service

    If your technical support specialist decides that service is required and you are outside the USA, your local distributor of Multi-Tech products usually offers the quickest and most economical repair option. If necessary, you can send your modem to our Mounds View factory in the USA.

  • Page 83: Ordering Accessories

    7 Warranty, Service and Technical Support Ordering Accessories SupplyNet, Inc. supplies replacement transformers, cables and connectors for select Multi-Tech products. You can place an order with SupplyNet via mail, phone, fax or the Internet at: Mail: SupplyNet, Inc. 614 Corporate Way...

  • Page 84: Appendix

    Appendix...

  • Page 85: Appendix A: Regulatory Compliance

    MultiTech Systems Inc. Trade Name: MultiModemZPX Model Number MT5634ZPX-PCI FCC Registration Number: AU7USA-27014-M5-E Ringer Equivalence: 0.4B Modular Jack (USOC): RJ-11C Service Center in USA: Multi-Tech Systems Inc. 2205 Woodale Drive Mounds View, MN 55112 (800) 328-9717 (763) 785-3500 (763) 785-9874 FAX MT5634ZPX-PCI...

  • Page 86: Fax Branding Statement

    This precaution may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate. MT5634ZPX-PCI...

  • Page 87: Class B Statement

    (less than ± 30 volts). Ports which are capable of connecting to other apparatus are defined as SELV. To ensure conformity with EN41003, ensure that these ports are only connected to ports of the same type on other apparatus. MT5634ZPX-PCI...

  • Page 88: Protection Against Contact With Tnv Circuit (Internal Pc Cards)

    This equipment is designed to work with PSTN networks that accept analog signals. Multi-Tech Systems does not currently know of any operating difficulties. New Zealand Modem Warning Notice Use of pulse dialing, when this equipment is connected to the same line as other equipment, may give rise to “bell tinkle”...

  • Page 89: International Modem Restrictions

    Some dialing and answering defaults and restrictions may vary for international modems. Changing settings may cause a modem to become non-compliant with the national telecom requirements in specific countries. Also note that some software packages may have features or lack restrictions that may cause the modem to become non-compliant. MT5634ZPX-PCI...

  • Page 90: Appendix B: Updating Your Modem's Firmware

    Multi-Tech System’s Flash Wizard utility can be used in the Windows operating system to update (flash) your modem’s firmware. The Flash Wizard utility is available on the MT5634ZPX-PCI System CD or can be downloaded from Multi-Tech’s ftp site. Upgrade Overview...
  • Page 91 Appendix Step 2: Identify the Current Firmware Version Identify the current version of the firmware available for your modem on the Multi-Tech web site. If your modem already has the current firmware, there is no need to update it. 1. Using your favorite Web browser, go to Multi-Tech System’s support web page.
  • Page 92 1. Use Windows Explorer to copy the new .Hex file (which you downloaded from the Multi-Tech web site) to the folder in which the Flash Wizard program was installed. 2. Click Start | Programs | Flash Wizard to start the firmware update process. The program begins by identifying devices attached to your computer.
  • Page 93 Step 8: Restore Your Parameters Your modem has been updated. You can now open your terminal program to reprogram your modem parameters or to confirm the update by typing ATI in the terminal window. MT5634ZPX-PCI...

  • Page 94: Appendix C: Global Wizard Configuration Utility

    Windows based modem for country-specific operation using AT commands, follow the configuration procedures in Chapter 5. Global Wizard 1. Insert the MT5634ZPX-PCI System CD into your CD-ROM drive. The MT5634ZPX- PCI AutoRun dialog box displays: 2. Click the “Initial Setup & Country Selection” icon.
  • Page 95 9. Scroll through the country list and highlight the country from which you’ll operate the modem. *Countries with approvals for the MT5634ZPX-PCI modem (at the time of this printing) include: Austria, Belgium, Canada, Cyprus, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Liechtenstein, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden,Switzerland, U.K., United...
  • Page 96 12. The Global Wizard dialog box displays asking you to wait while it sets the homologation parameters for the selected country. 13. The Global Wizard indicates the homologation parameters have been successfully set for the country you selected. Click Finish to exit the Global Wizard. MT5634ZPX-PCI...

  • Page 97: Appendix D: Ascii Conversion Chart

    Shift In Substitute Enquiry Data Link Escape Escape Acknowledge Device Control 1 File Separator Bell or Alarm Device Control 2 Group Separator Backspace Device Control 3 Record Separator Horizontal Tab Device Control 4 Unit Separator Line Feed Negative Acknowledge Delete MT5634ZPX-PCI...

  • Page 98: Glossary

    Glossary...
  • Page 99 PBX for large business users. See also “Private Branch transmission control characters and control character sequences, Exchange”, “Exchange”. for binary synchronous transmission of binary-coded data between stations. MT5634ZPX-PCI...
  • Page 100 T1 lines and alters them to provide the needed condition that occurs when from 3 to 9 SES (Severely Errored connectivity. DCS connections are made with software at an Seconds) are logged consecutively. administrator’s workstation. Digital Data: Information represented by discrete values or MT5634ZPX-PCI...
  • Page 101 (See RS-232, RS-422, RS530.) Frequency: A characteristic of an electrical or electronic signal Encapsulation: A technique used by network-layer protocols in which describes the periodic recurrence of cycles. Frequency is which a layer adds header information to the protocol data unit MT5634ZPX-PCI...
  • Page 102 Frame relay was partially based on ISDN’s data link layer protocol (LAPD). Frame relay can be used to transmit across ISDN services offering circuit-switched connection at 64 Kbps and higher speeds. Contrast Public Switched Telephone Network (PSTN). MT5634ZPX-PCI...
  • Page 103 161 LATAs. The Bell processed befor the next transaction processing is started. Operating Companies (BOCs) provide Intra-LATA services. Local Exchange Carrier (LEC): The local phone company which provides local (i.e., not long distance) transmission services. AKA MT5634ZPX-PCI...
  • Page 104 Protocol: 1. A set of semantic and syntactic rules that determines as a composite whole. The data, control signals and, possibly, the behavior of functional units in achieving communication. 2. In MT5634ZPX-PCI...
  • Page 105 Router: A device that connects two networks using the same Procedures (ADCCP) of the American National Standards Institute networking protocol. It operates at the Network Layer (Layer 3) of (ANSI) and High-level Data Link Control (HDLC) of the International Organization for Standardization, for managing MT5634ZPX-PCI...
  • Page 106 (peripherals, hub outputs) are made using the 'B' type connector. ISDN device between the R and S interfaces. Typically a PC card. The USB spec defines two types of connectors to protect the bus Tie line: A dedicated circuit linking two points without having to MT5634ZPX-PCI...
  • Page 107 HDLC or other character-oriented protocol. V.54: The ITU-T standard for local and remote loopback tests in modems, DCEs and DTEs. The four basic tests are: • local digital loopback (tests DTE send and receive circuits), MT5634ZPX-PCI...

  • Page 108: Index

    Index...
  • Page 109 V.32 Auto Retrain, 61 O, 59 View Current Configuration, 62 Qn, 59 View Numbers in Blacklist, 65 Sr=n, 59 XON/XOFFPass-Through, 65 Sr?, 59 Configuration Vn, 60 Verifying - Windows 2000, 28 V e r i f y i n g MT5634ZPX-PCI...
  • Page 110 Class B, 87 EMC, Safety, 88 European Directives, 88 V.90 Support/Functions, 11 Fax Branding, 86 FCC Part 68, 85 International Modem, 89 Warranty, 81 New Zealand, 88 Registration, 81 Remote Configuration, 50 Escape Character, 51 Password, 50 Removing Previous Modems MT5634ZPX-PCI...
