9.3.2 Models

9.3.2.1 mvBlueLYNX-X100w (WVGA 752 x 480)

The sensor uses a full frame shutter (ShutterMode = FrameShutter), i.e. all pixels are reset at the same
time and the exposure commences. It ends with the charge transfer of the voltage sampling.
Feature
Manufacturer Aptina
Sensor name MT9V034
Max. frames 117
per second
Device CMOS image sensor with HDR
Structure
SNR
DNR (normal / 55 dB / > 110 dB
HDR)
Image size Type 1/3
Number of 752 (H) x 480 (V)
effective pixels
Chip size 4.51 (H) x 2.88mm (V)
Unit cell size 6µm (H) x 6µm (V)
ADC 10 bit → 12, 10, 8 bit
resolution /
output

9.3.2.1.1 Spectral Sensitivity

9.3.2.1.1.1 Gray scale model
68
mvBlueLYNX-X Technical Manual
Description

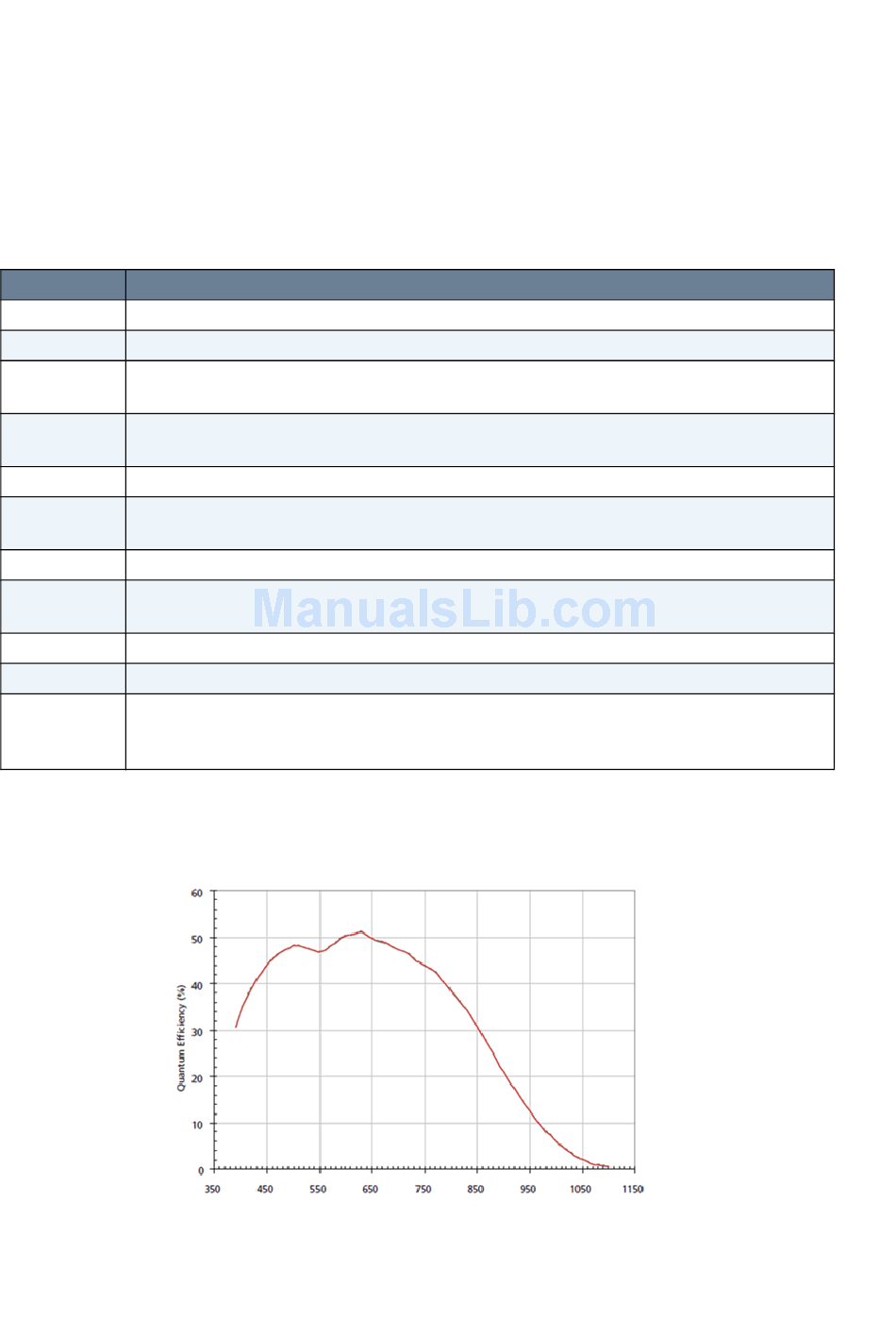

Figure 37: mvBlueLYNX-X100wG
