Pin.
1 USB host D-
2 USB host D+
3 USB host V+
4 VGA HSync
5 VGA B
6 VGA R
7 VGA G
8 VGA VSync
9 GND
10 GND
11 I2C SDA
12 I2C SCL
• Connector (camera side): AlysiumTech, type 61-W-31-1112 12 pins or equivalent
• Plug (matching cable plug): AlysiumTech, type 61-W-00-1112 12 pins or equivalent
• Plug (matching cable plug for mainboard connection header): Molex 0510211200
The USB connector that is part of the "Y"-cable KS-BLX-VGA-USB 01.0 may be used to connect
USB 2.0 peripheral devices. At the moment it will not support USB 1.1 devices correctly. If you
connect a USB 1.1 device the USB port will turn off and you will need to restart the camera. To
connect both a mouse and keyboard at the same time it will be necessary to use a USB 2.0 hub.
The maximum VGA resolution depends on the pixel clock which cannot exceed 75MHz e.g. WXGA
1280 x 800 @ 60 Hz (=71MHz pixel clock) is possible.
MATRIX VISION GmbH
mvBlueLYNX-X Technical Manual

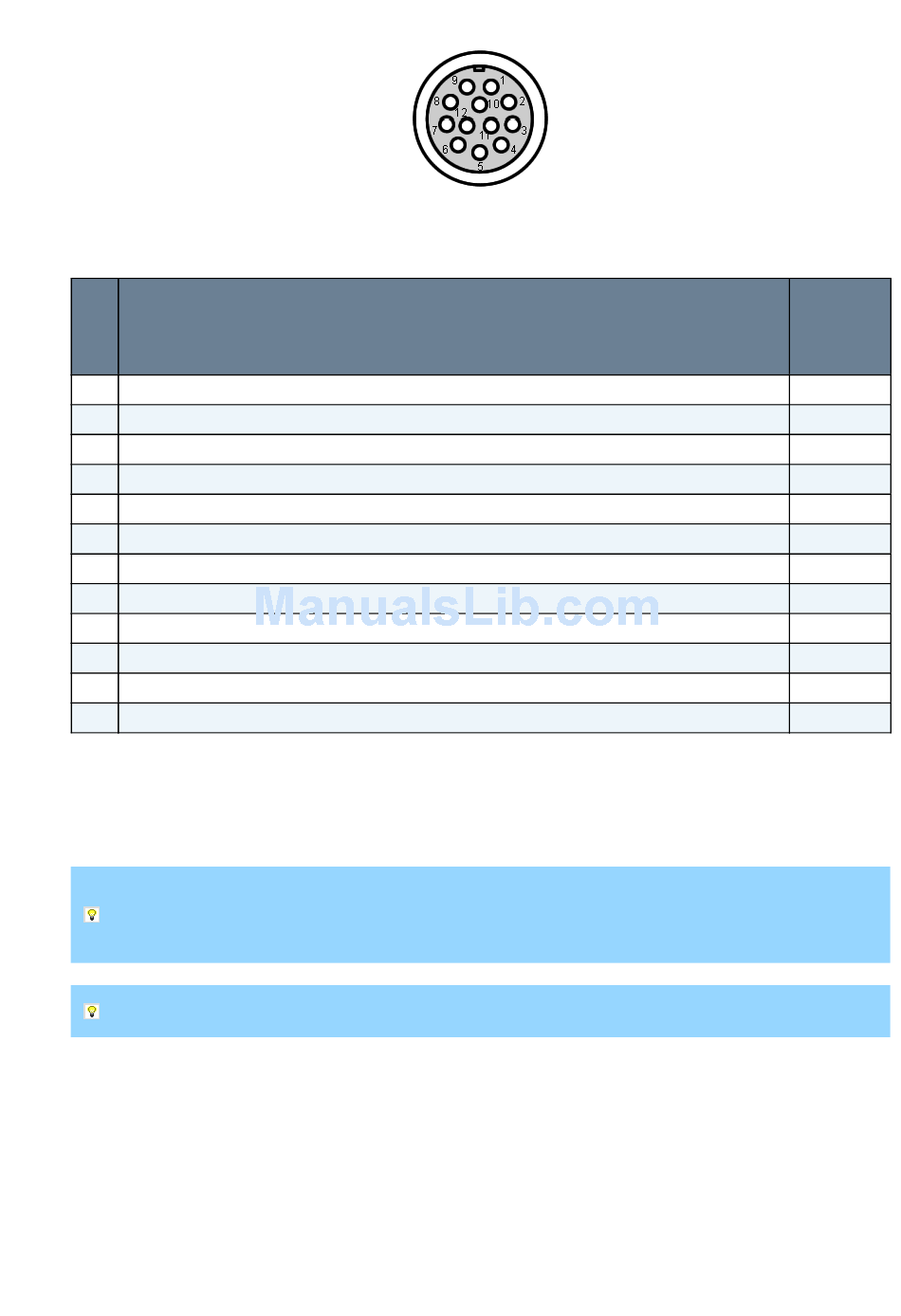

Figure 15: AlysiumTech 12-pin (female; top view), VGA / USB
22 April 2016 Version - 1.49
Signal Pin. on the
mainboard
connection
header
3
4
2
7
10
11
12
8
1
9
5
6
