20.5.1.2 Possible settings

Possible settings of the mvBlueFOX-x02d in HDR mode are:
• HDREnable
♦ Off: Standard mode
♦ On: HDR mode on, reduced amplification

20.6 Reset timestamp by hardware

This feature can be used
1. for precise control of timestamp
2. for one camera or
3. to synchronize timestamp of multitude of cameras.
The latter sample, can be achieved by follwing steps:

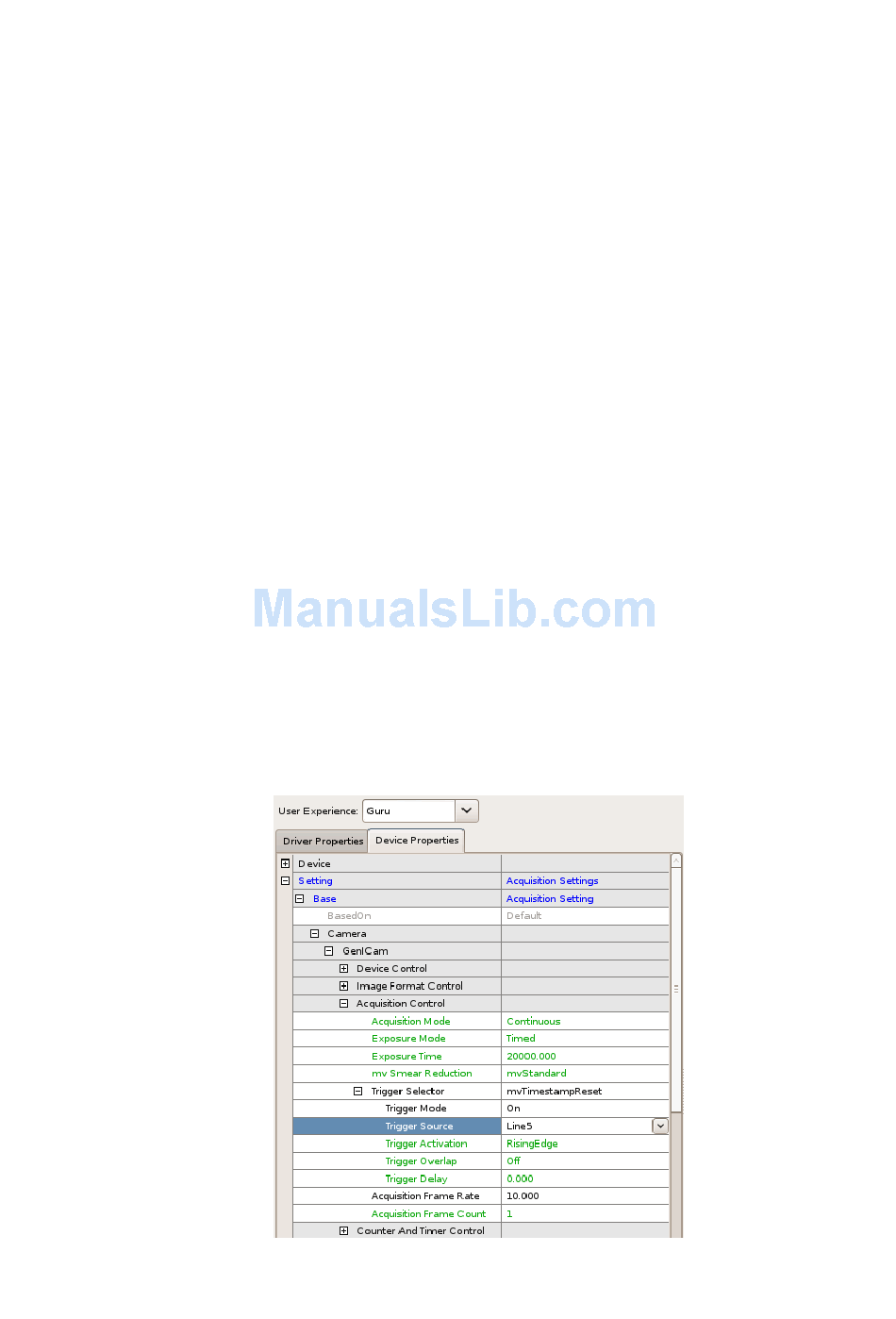

1. Define the input line (TriggerSource) to reset the timestamp, e.g. Line5 and
2. set the Trigger Selector to mvTimestampReset.
3. Connect all input lines of all cameras together.
4. Finally, use one output of one camera to generate reset edge:
MATRIX VISION GmbH
mvBlueLYNX-X Technical Manual
◊ HDRMode:
⋅ Fixed: Fixed setting with exposure-time-ratios: T1 -> T2 ratio / T2 -> T3
ratio
⋅ Fixed0: 8 / 4
⋅ Fixed1: 4 / 8
Fixed2: 8 / 8
⋅
Fixed3: 8 / 16
⋅
Fixed4: 16 / 16
⋅
Fixed5: 16 / 32
⋅
