9.2.2.2 mvBlueLYNX-X120b (VGA 640 x 480)
Feature
Manufacturer
Sony
Sensor name
ICX414AL/AQ
Max. frames
104
per second
Device
Interline CCD image sensor with Had microlens
Structure
Image size
Diagonal 6mm (Type 1/2)
Number of
659 (H) x 494 (V) approx. 330K pixels
effective pixels
Total number
692 (H) x 504 (V) approx. 350K pixels
of pixels
Chip size
7.48mm (H) x 6.15mm (V)
Unit cell size
9.9µm (H) x 9.9µm (V)
Optical black
Horizontal (H) direction: Front 2 pixels, rear 31 pixels
Vertical (V) direction: Front 8 pixels, rear 2 pixels
Number of
Horizontal 16 Vertical 5
dummy bits
Substrate
Silicon
material

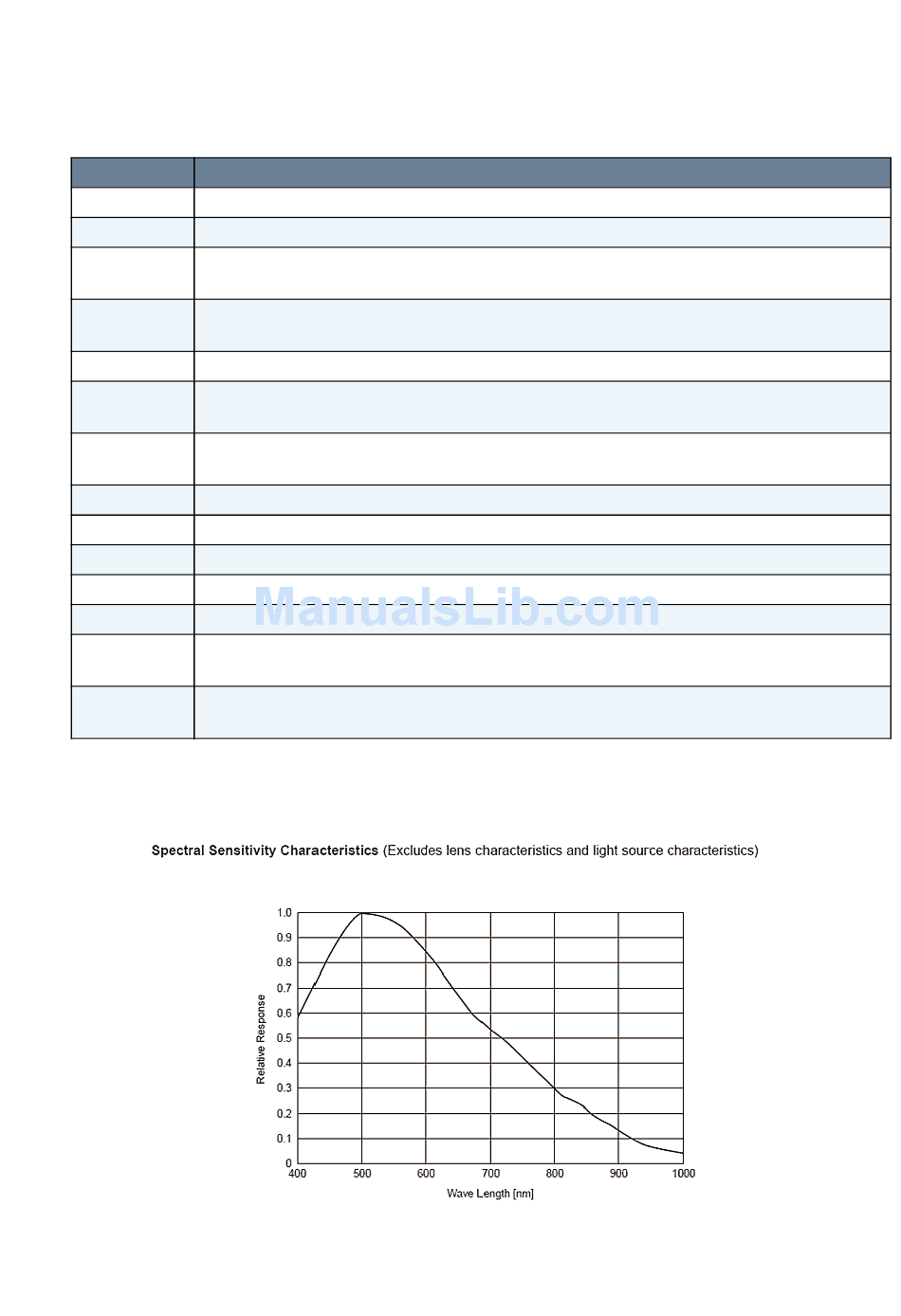

9.2.2.2.1 Spectral Sensitivity
9.2.2.2.1.1 Gray scale model
