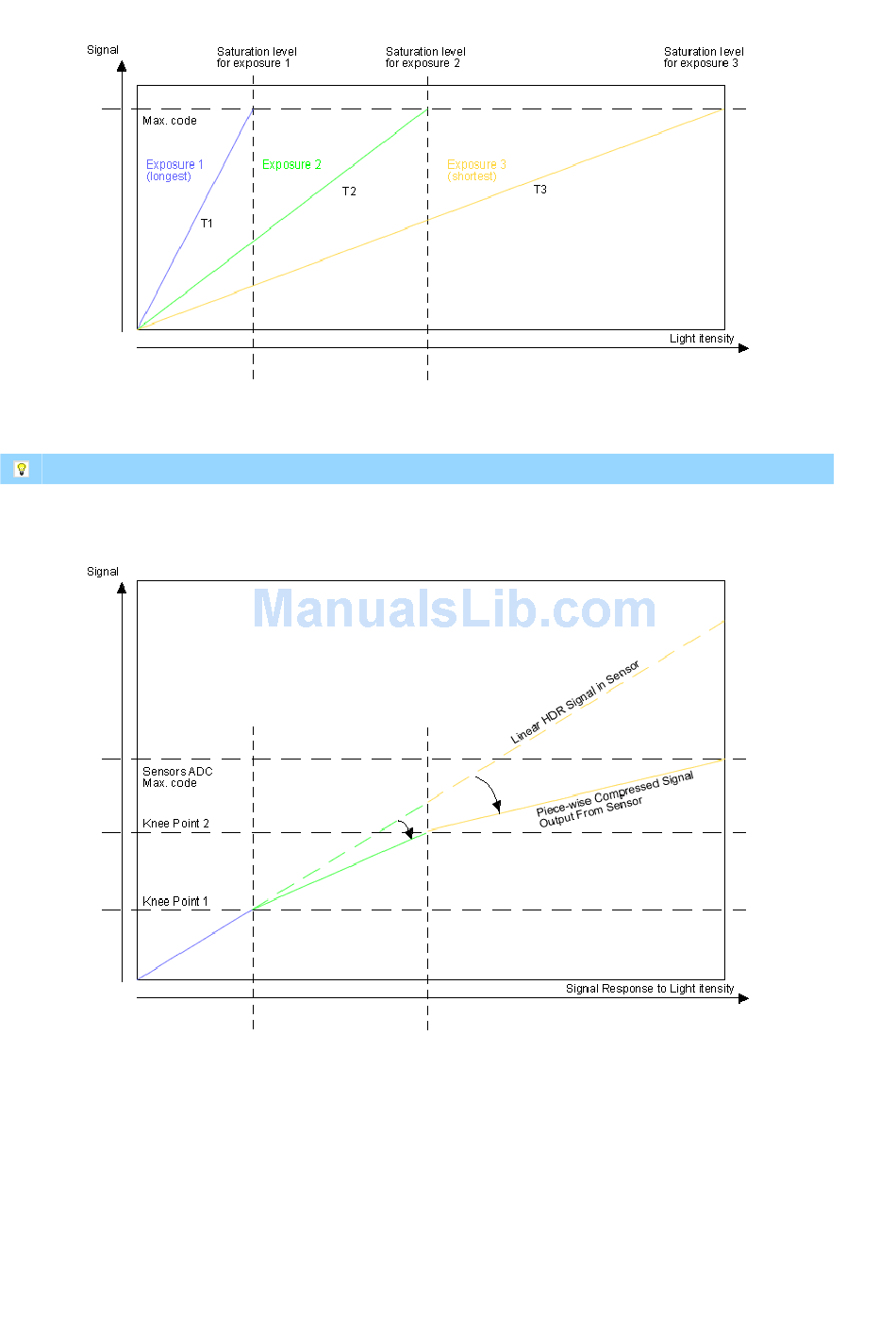

Figure 143: Multiple exposure capture using 3 different exposure times
The longest exposure time (T1) represents the Exposure_us parameter you can set in wxPropView.
Afterwards, the signal is fully linearized before going through a compander to be output as a piece-wise linear
signal. the next figure shows this.
Figure 144: Piece-wise linear signal

20.5.1.1 Description

Exposure ratios are set programmatically. Two rations are used: R1 = T1/T2 and R2 = T2/T3.
Increasing R1 and R2 will increase the dynamic range of the sensor at the cost of lower signal-to-noise ratio
(and vice versa).
